Draytek Vigor C410 Series User Manual page 19

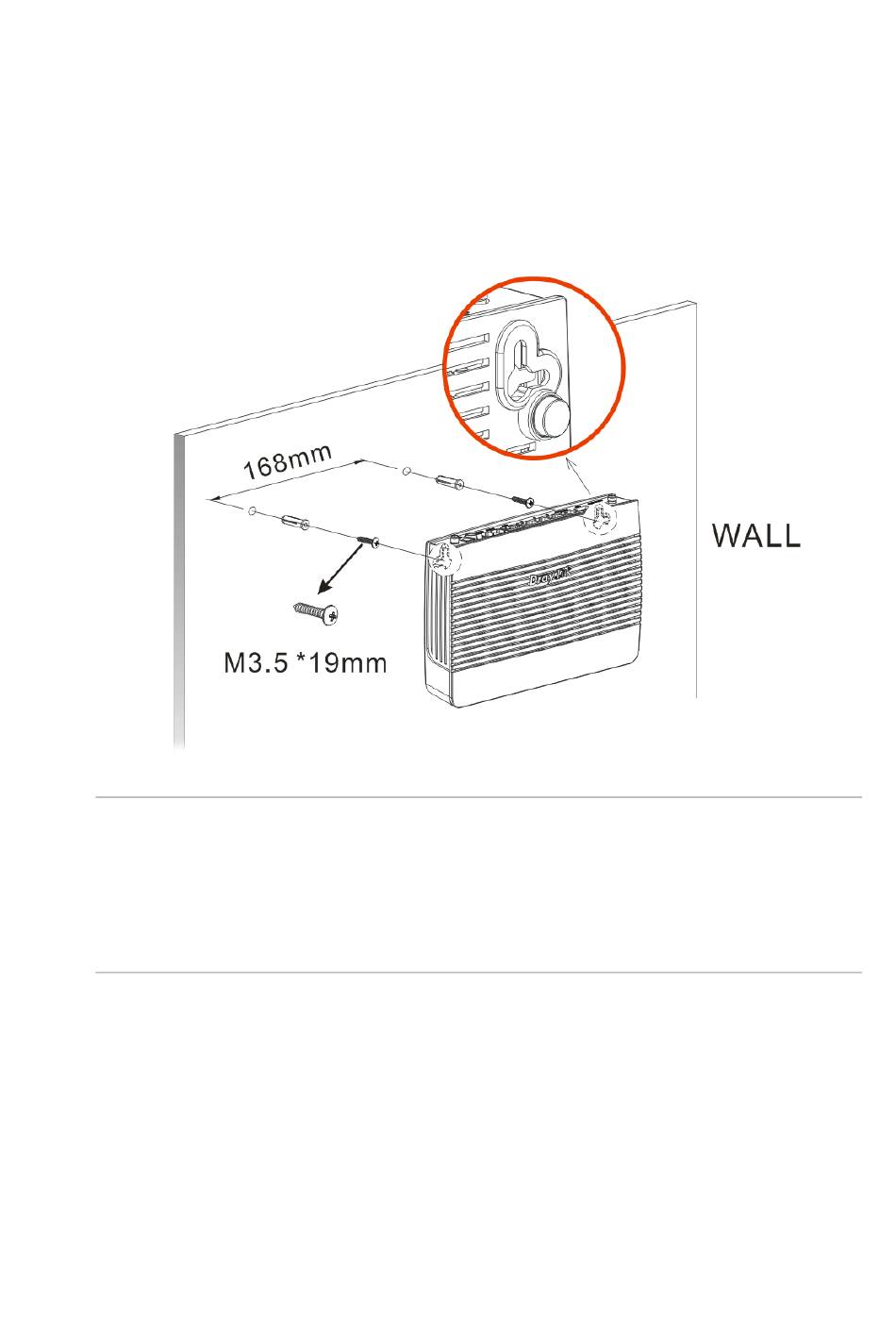

I-2-2 Wall-Mounted Installation
1. Drill the holes on the wall according to the recommended instruction. The distance between
the holes shall be 168mm.
2. Fit screws into the wall using the appropriate type of wall plug.
3. With the screws installed, the router can be slotted into place.

Note
The recommended drill diameter shall be 6.5mm (1/4").
4. When you finished the above procedure, the modem has been mounted on the wall firmly.
Step 4
9
