Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12
16X Ø 6 (0.2)

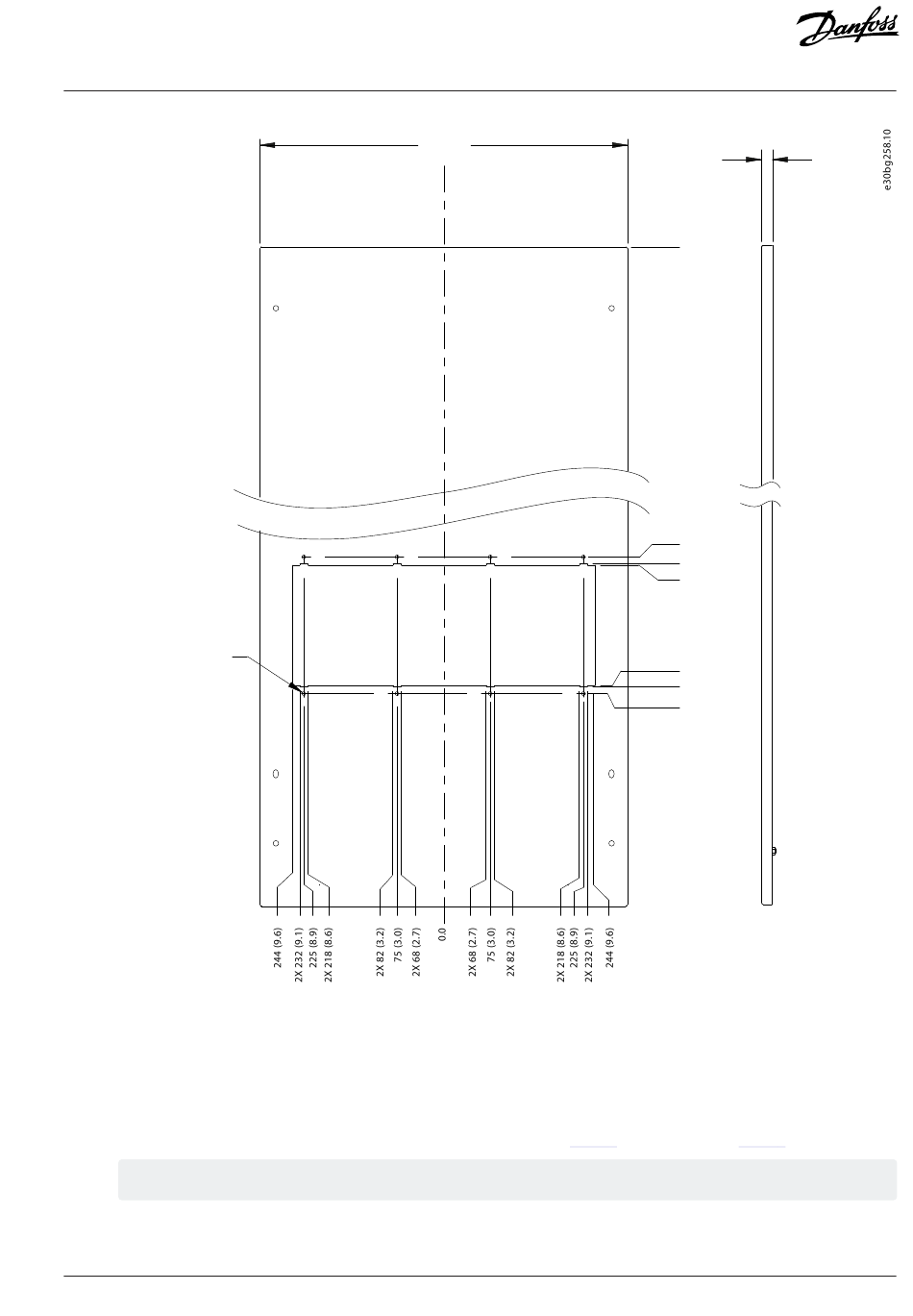

Figure 6: Vent Dimensions for Backplate in 800 mm (32 in) Cabinet
Creating a Vent Opening in the Top Plate
2.5
To create a vent opening in the cabinet top plate, use the following steps.
Procedure
1.
Cut out the vent opening in the cabinet top plate using the dimensions in
The opening must match the frequency converter vent opening.
2. Drill 6 screw holes (6 mm) around the vent opening using the dimensions in the template.
Danfoss A/S © 2024.09
792 (31.2)
Figure 7
0.0
1383 (54.4)
4X 1394 (54.9)
1396 (55.0)
1590 (62.6)
4X 1592 (62.7)
1603 (63.1)
for TS9 cabinets, or Figure 8 for Vx25 cabinets.
AN361429223580en-000201 / 136R0251 |
Installation
18 (0.7)
