Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12
Mounting the Frequency Converter
2.9
To install the mounting plate and frequency converter in the cabinet, use the following steps.
Procedure
1.
Remove the paper backing from both 6-hole gaskets, exposing the adhesive.
2. Adhere 1 gasket around the vent opening on each side of the mounting plate.
3.
Install the Rittal mounting plate brackets in the furthest back position on the rails at the base of the cabinet.
For VX25 cabinets, see step 1 in
For TS8 cabinets, see step 1 in
4.
Insert the plastic brackets on the mounting plate into the brackets installed on the cabinet rails in the previous step.
For VX25 cabinets, see step 2 in
For TS8 cabinets, see step 2 in
1
2

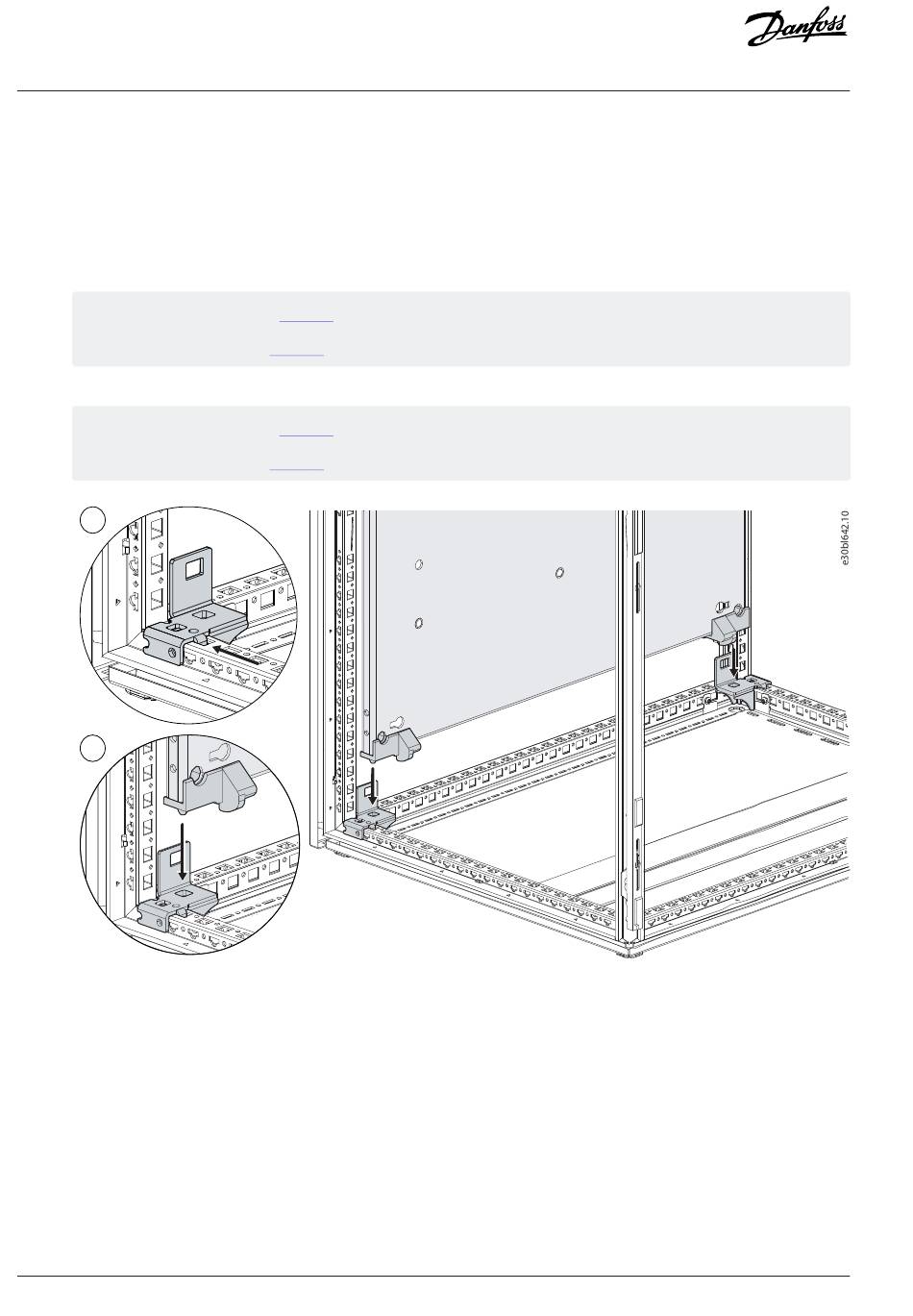

Figure 12: Rittal VX25 Cabinet - Installation of Mounting Brackets and Mounting Plate
14 | Danfoss A/S © 2024.09
Figure 12.
Figure 13.
Figure 12.
Figure 13.
