Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12
Installing the Bottom Cover
2.8
DRAIN OPENING
The bottom cover features a drain opening in the middle of the plate.
To drain moisture in wet or humid environments, attach nylon tubing with an interior diameter of 8 mm (0.3 in).

To seal the drain in dry environments, fasten a screw in the drain hole.

To install the bottom cover at the lower end of the cooling back channel, use the following steps. See
Procedure
1.
Remove the paper backing from the bottom gasket.
2.
Adhere the gasket to the upper side of the bottom cover.
3. Position the bottom cover and gasket over the opening at the lower end of the cooling channel.
4. Secure the bottom cover using the M5x14 screws (T25).
Torque screws to 2.3 Nm (20 in-lb). FA11 frequency converters require 8 screws, and FA12 frequency converters require 10
screws.
1
2
3
4
5
6

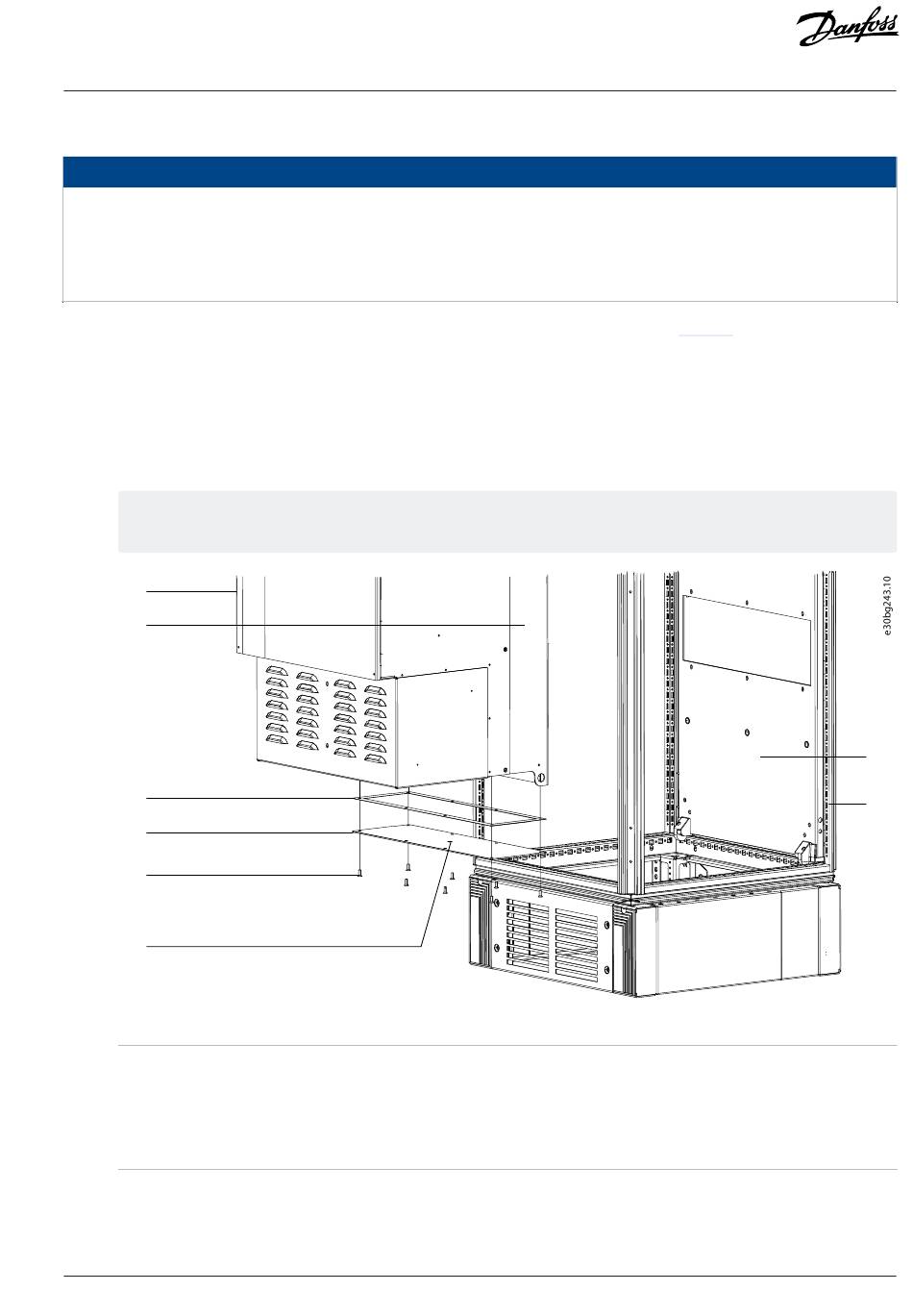

Figure 11: Installation of the Bottom Cover
1
Frequency converter
3 Bottom gasket
5 M5x14 screws
7 Mounting plate
Danfoss A/S © 2024.09
NOTICE
2
Cooling back channel
4 Bottom cover
6 Drain hole
8 Cabinet rails
