Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12
Installing the Top Duct Over the Top Vent
2.7
To attach the top duct over the top vent of the frequency converter, use the following steps. See
Procedure
1.
Remove 2 M5x14 screws (T25) at the back of the top vent and retain the screws.
2. Remove 3 M5x12 screws (T25) at the front of the top vent and retain the screws.
3.
Position the top duct over the vent in the top of the frequency converter.
4.
Line up the holes in the lower flange with the screw holes in the frequency converter.
5. Secure the lower flange to the frequency converter with 5 screws (T25) previously removed.
Torque fasteners to 2.3 Nm (20 in-lb).
6.
Collapse the duct until installation of the cabinet top plate.
1
2
3
4
5
6

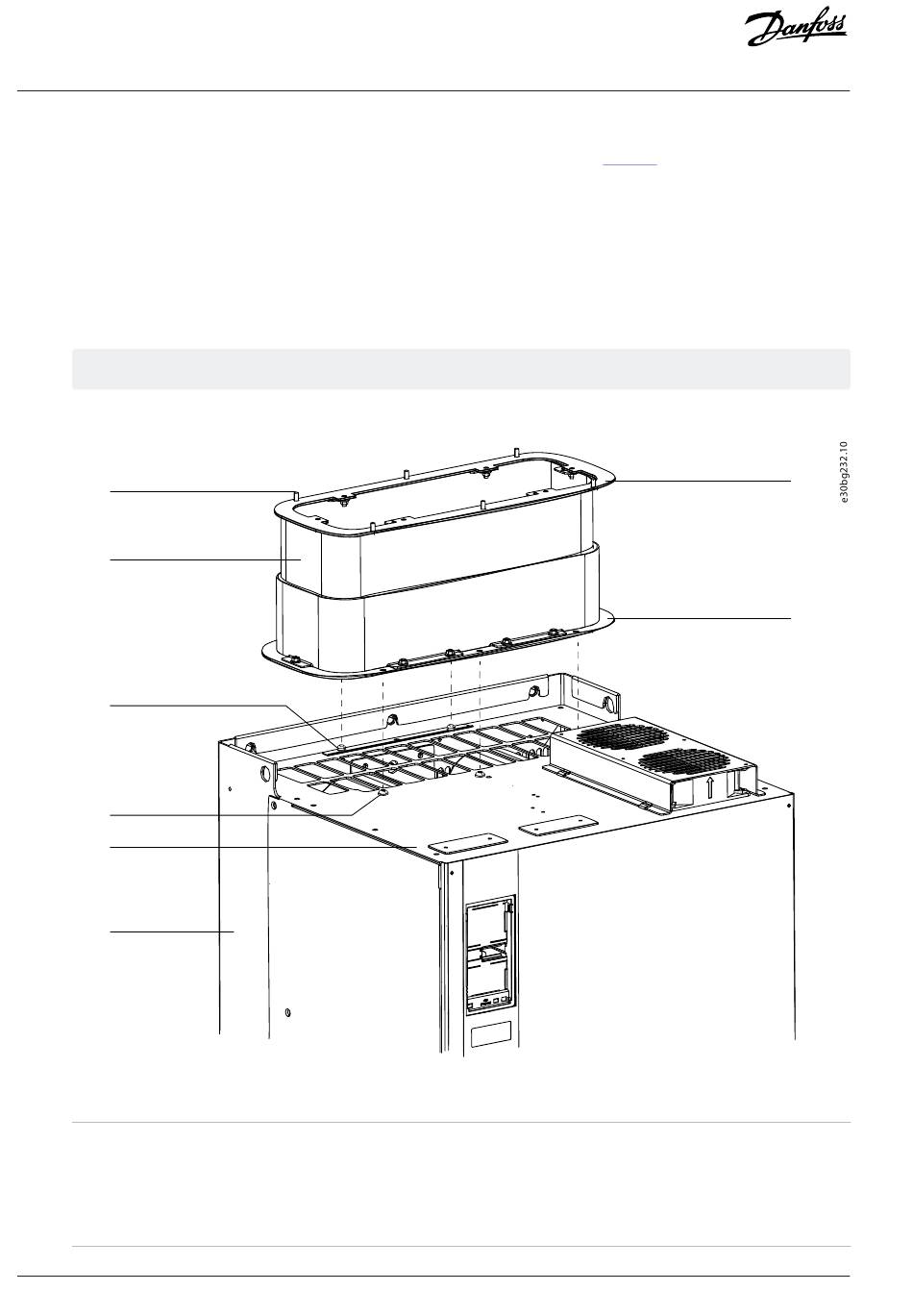

Figure 10: Installation of the Top Duct Over the Top Vent
1
Threaded stud
3 M5x14 screw
5 Top of frequency converter
7 Upper flange of duct
12 | Danfoss A/S © 2024.09
Figure
2
Top duct
4 M5x12 screw
6 Cooling back channel
8 Lower flange of duct
AN361429223580en-000201 / 136R0251
Installation
10.
7
8
