Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12
Assembling the Top Duct
2.6
The top duct is a telescopic duct that collapses to simplify installation. To assemble the duct before installation, use the following steps.
See Figure 9.
Procedure
1.
Cut the strip of ribbed EPDM rubber seal into 2 pieces of 1027 mm (40.4 in).
2. Peel the paper off the self-adhesive seals. Place 1 strip on the outside bottom edge of the inner sleeve of the duct, and 1 strip on
the upper inside edge of the outer sleeve of the duct.
3. With the rubber seal in place, carefully slide the inner sleeve of the duct into the outer sleeve.
1
2
3

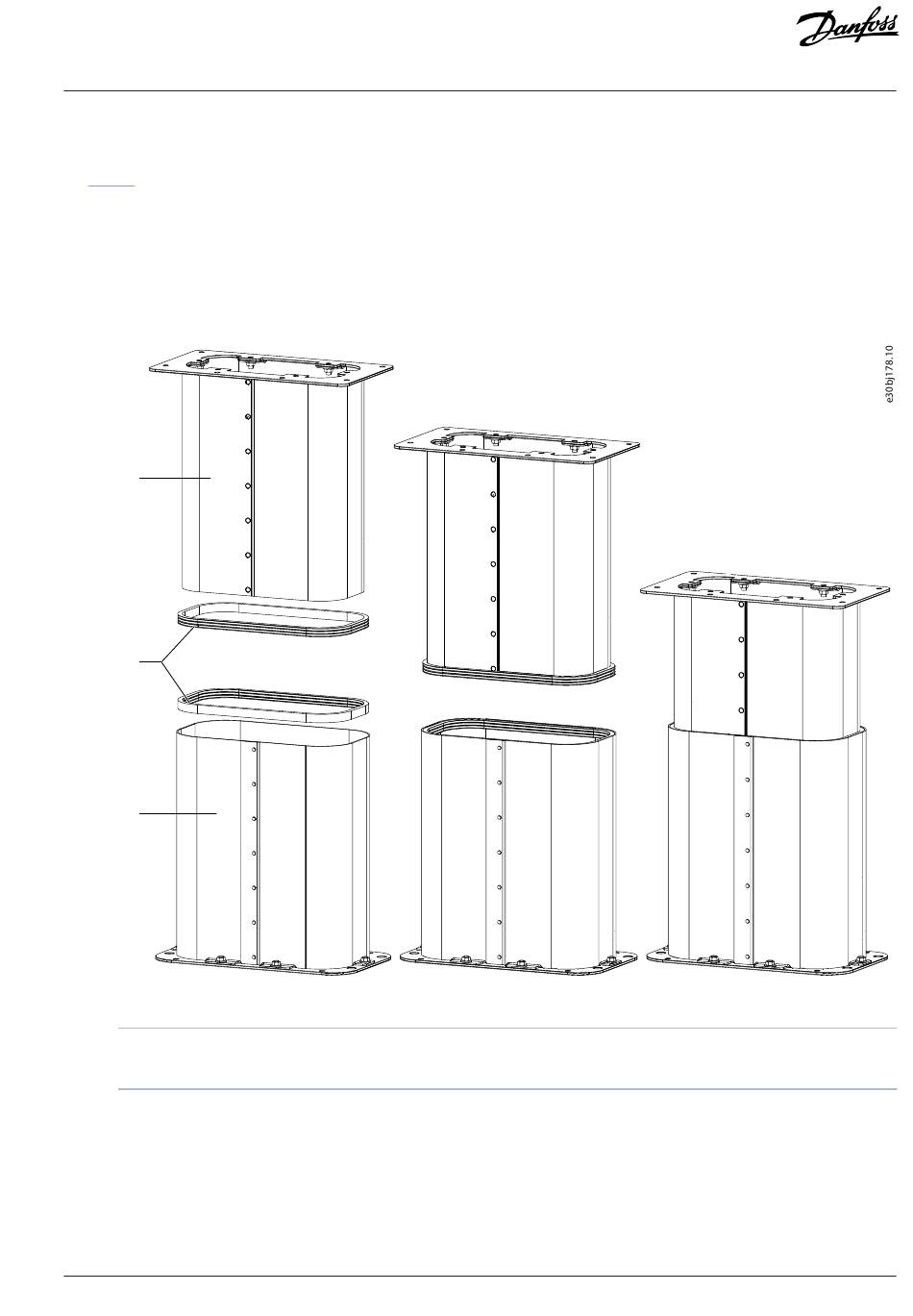

Figure 9: Assembly of Telescopic Duct
1 Inner sleeve of duct
3 Outer sleeve of duct
Danfoss A/S © 2024.09
2 Ribbed EPDM rubber seal
