Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12
The holes must match the holes in the upper flange of the top duct.
48 (1.9)
159 (6.2)
3 (0.1)
6X 6 (0.2)

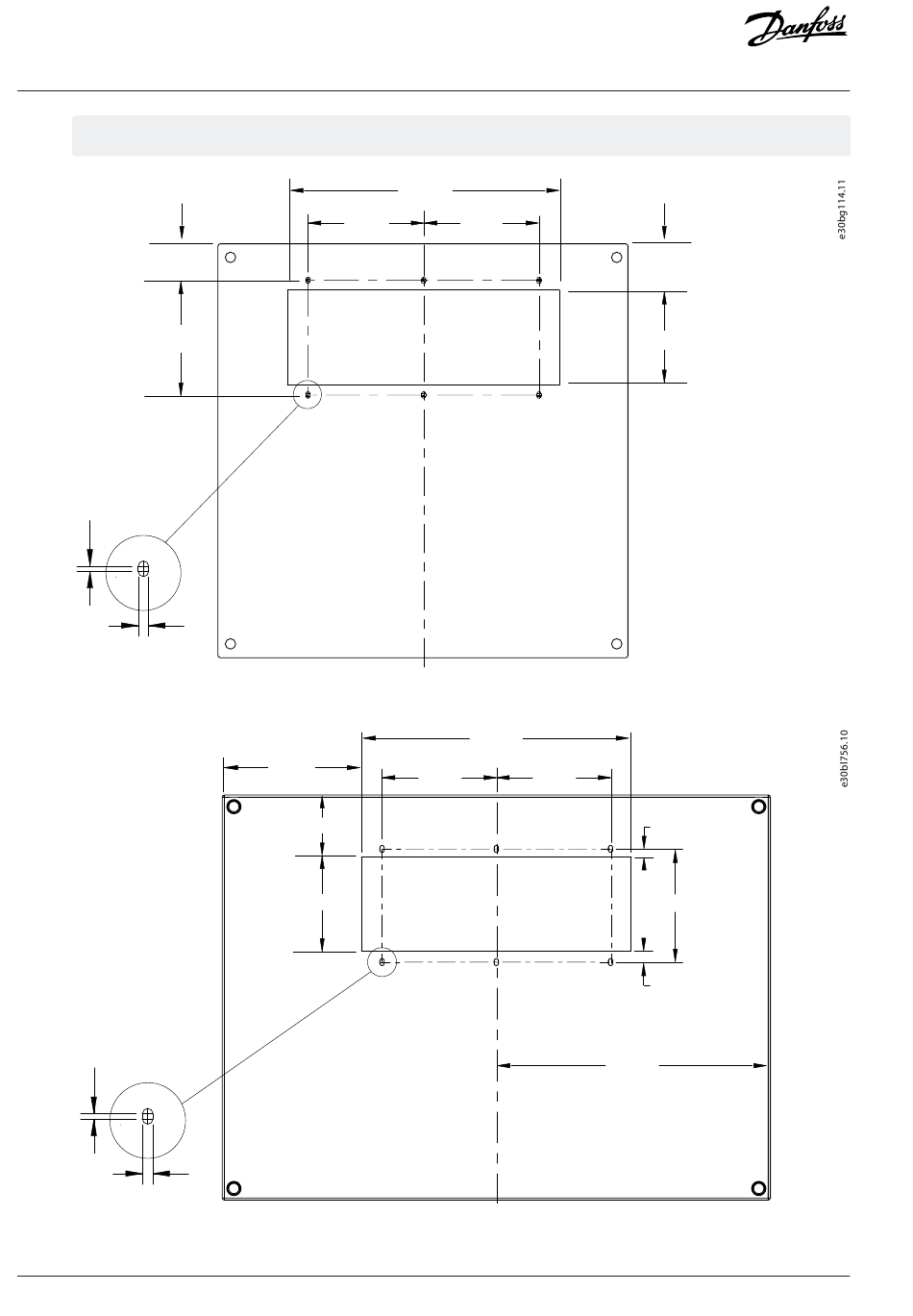

Figure 7: Dimensions of Opening in Top Plate of TS8 Cabinet
4 (0.15)
6X 6 (0.2)
Figure 8: Dimensions of Opening in Top Plate of VX25 Cabinet
10
| Danfoss A/S © 2024.09
378 (14.9)
160 (6.3)
195 (7.7)
160 (6.3)
89 (3.5)
131 (5.2)
160 (6.3)
378 (14.9)
160 (6.3)
384 (15.1)
AN361429223580en-000201 / 136R0251
Installation
62 (2.4)
131 (5.2)
14 (0.6)
159 (6.2)
14 (0.6)
