Installation Guide | In-back/Out-top Cooling Kit for FA11-FA12
6X S-M10-2Z1
3 (0.1)

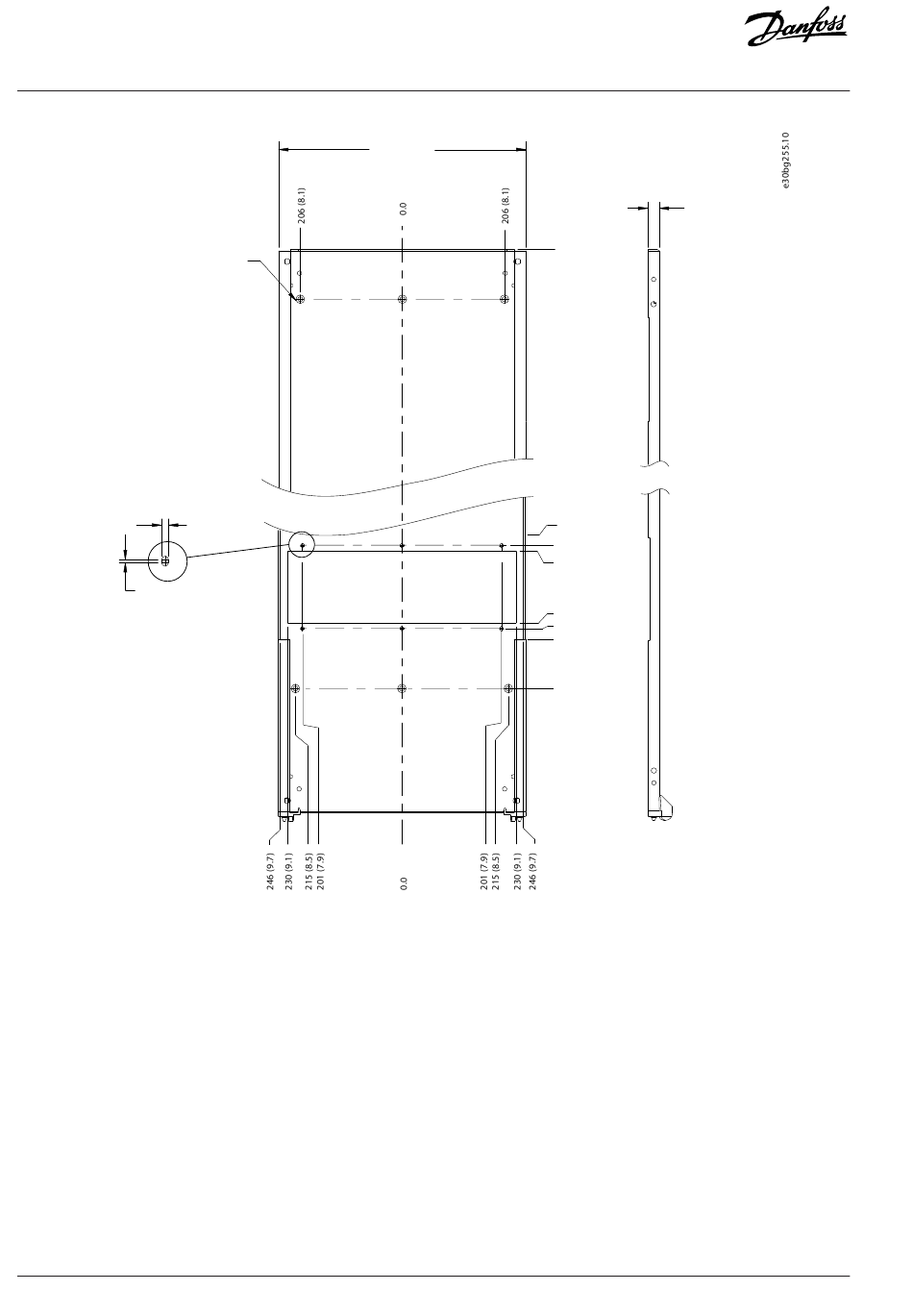

Figure 3: Vent Dimensions for Mounting Plate in 600 mm (24 in) Cabinet
6
| Danfoss A/S © 2024.09
7 (0.3)
499 (19.7)
23 (0.9)
0.0
2X 1335 (52.6)
1357 (53.4)
1368 (53.9)
1513 (59.6)
1524 (60.0)
2X 1545 (60.8)
1645 (64.7)
AN361429223580en-000201 / 136R0251
