Offline Device Preview
Opening a new device tab for an offline device displays the interface and configuration options for the device
without connecting to it. However, settings cannot be changed.
To start the program in offline configuration mode:

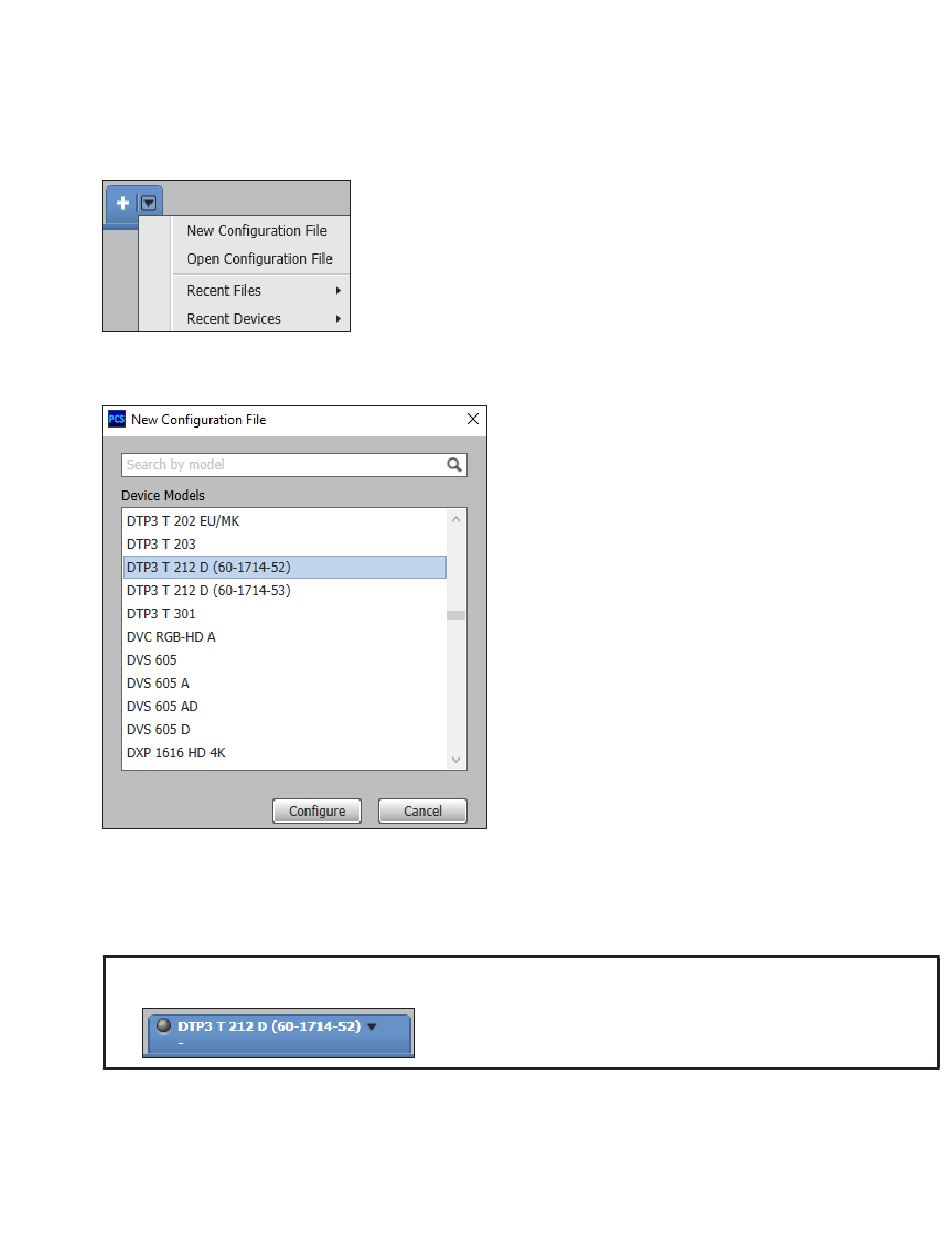

1. Select New Configuration File from the blue device tab drop-down list (see figure 16).
Figure 16. Configuration File Drop‑Down List
The New Configuration File dialog box opens (see figure 17).
Figure 17. New Configuration File Dialog Box
2. Select the desired device model from the Device Models list.
3. Click Configure.
A new offline device configuration tab opens.
NOTE: The
DTP3 T 212 D
that there is no device connected and the software is running in offline configuration mode.
device tab (see the image below) has a grayed out indicator (circle) to indicate
DTP3 T 212 D • Product Configuration Software 21
