• DTP mode — If the receiving device is in the Extron DTP3 series, set this switch to the DTP position. If the
transmitter and receiver are in the Extron DTP3 series, they can both be powered by one 12 VDC power
supply connected to either unit.
NOTE: If the transmitter and receiver are NOT both in the Extron DTP3 series, the transmitter and
receiver each require its own 12 VDC power supply.
• HDBaseT mode — If the receiving device is an HDBaseT enabled receiver, set this switch to the HDBT
position. The TP output transmits HDMI digital video with embedded audio along with RS-232 control up
to 330 feet (100 meters) to any device with an HDBaseT input. The transmitter and receiver each require
its own 12 VDC power supply.
Send Power toggle switch (see
F
configuration, set the toggle switch to the SEND POWER position on the powered DTP3 unit to enable sending
remote power to the far end. Set the toggle switch to the OFF position on the DTP3 unit receiving power.
ATTENTION:
• The DTP3 T 212 D is
configured to output
power to DTP3 models
only. If connected to a
non-DTP3 device, set
the SEND POWER toggle
switch to the OFF
position. Failure to turn
the power off will
damage the connected
non-DTP3 device (see
figure 5).
•
Le DTP3 T 212 D est
configuré pour fournir
une alimentation aux
modèles DTP3
uniquement. S'il est
connecté à un autre
appareil, veuillez
positionner
l'interrupteur à bascule
sur « OFF ». Si
l'interrupteur n'est pas
positionné sur off, vous
risquez d'entraîner la
défaillance de l'appareil
non DTP3 connecté
(voir figure 5).
NOTES:
•
When the output is configured for DTP mode, remote power is available only if both the transmitter
and the receiver are from the DTP3 series.
•
When the output is configured for HDBT mode, remote power is not available and both the
transmitter and receiver require their own 12 VDC power supply.
Reset button — This recessed button initiates two levels of reset on the transmitter. To initiate the different
G
reset levels, use a pointed object such as a flathead screwdriver or a stylus to press and hold the button while
the transmitter is running or while it is being powered up (see
DTP3 Endpoint Connected to a DTP Endpoint
Extron
DTP3 T 212 D
Transmitter
Tx Rx G Tx Rx G
POWER
RS-232 RS-232
12V
OVER TP REMOTE
--A MAX
DTP3 T 212 D
figure 4 on page 7) — In a DTP3 transmitter to DTP3 receiver
Local
Power Supply
DTP3 Endpoint Connected to a DTP3 Endpoint
Extron
DTP3 T 212 D
Transmitter
Tx Rx G Tx Rx G
POWER
RS-232 RS-232
12V
OVER TP REMOTE
--A MAX
DTP3 T 212 D
Local
Power Supply
Extron
DTP3 T 212 D
Transmitter
Tx Rx G Tx Rx G
POWER
RS-232 RS-232
12V
OVER TP REMOTE
--A MAX
DTP3 T 212 D

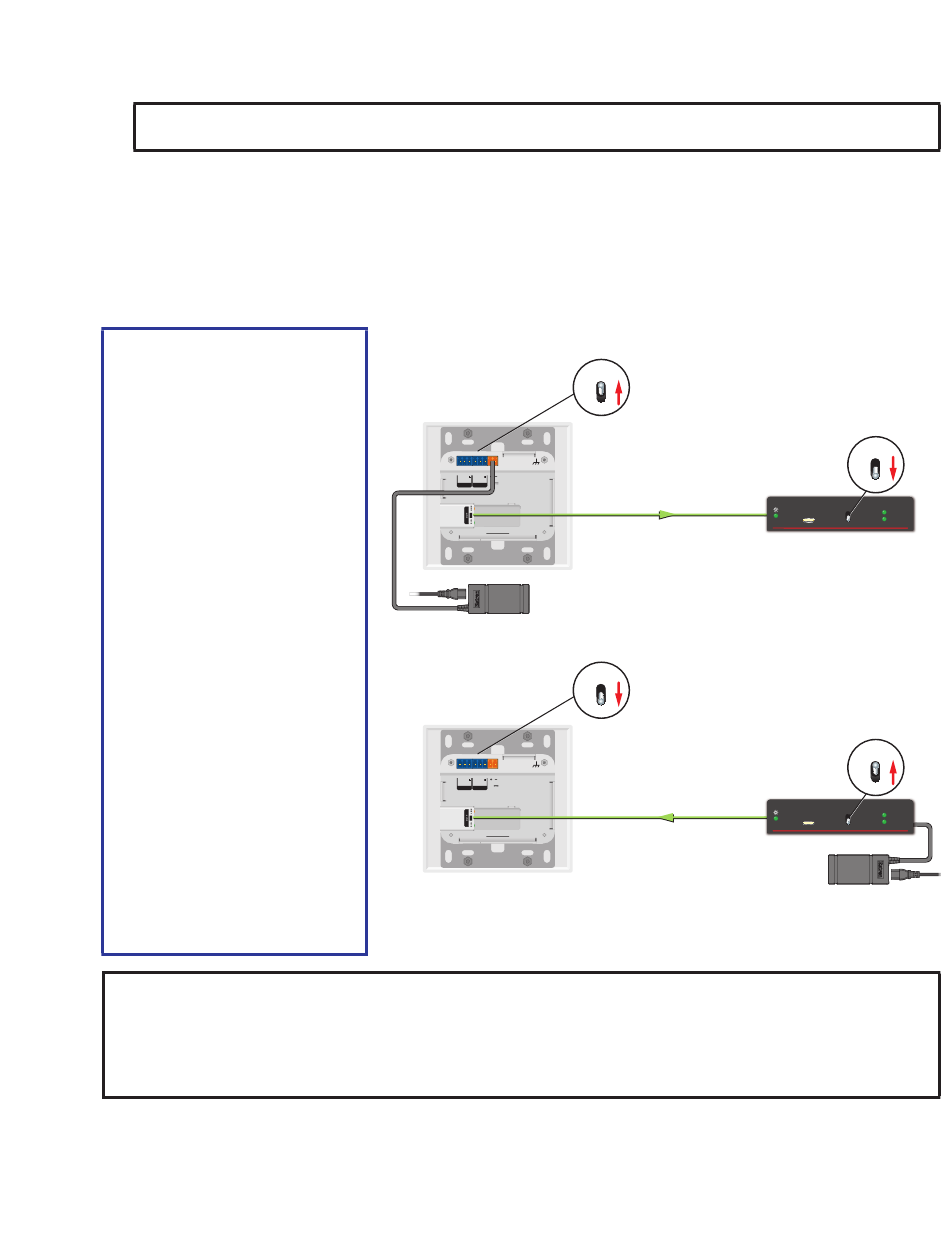

Figure 5. Send Power Diagram
OFF
SEND
POWER
OFF
Top View
No Remote Power
CATx Cable
up to 330' (100 m)
ON
SEND
POWER
OFF
Top View
Direction of
Remote Power
CATx Cable
up to 330' (100 m)
OFF
SEND
POWER
OFF
Top View
Direction of
Remote Power
CATx Cable
up to 330' (100 m)
Resetting on page 15 for details).
