Connection Details
For connector details that require additional wiring details or recommendations, see the following sections
pertaining to the type or connection.
TP Cable Termination for DTP Communication
Use the following configuration for twisted pair cables used for DTP communication.
Pins:
1 2 3 4 5 6 7 8
Pin
1
2
3
4
5
6
Insert Twisted
7
Pair Wires
RJ-45
8
Connector

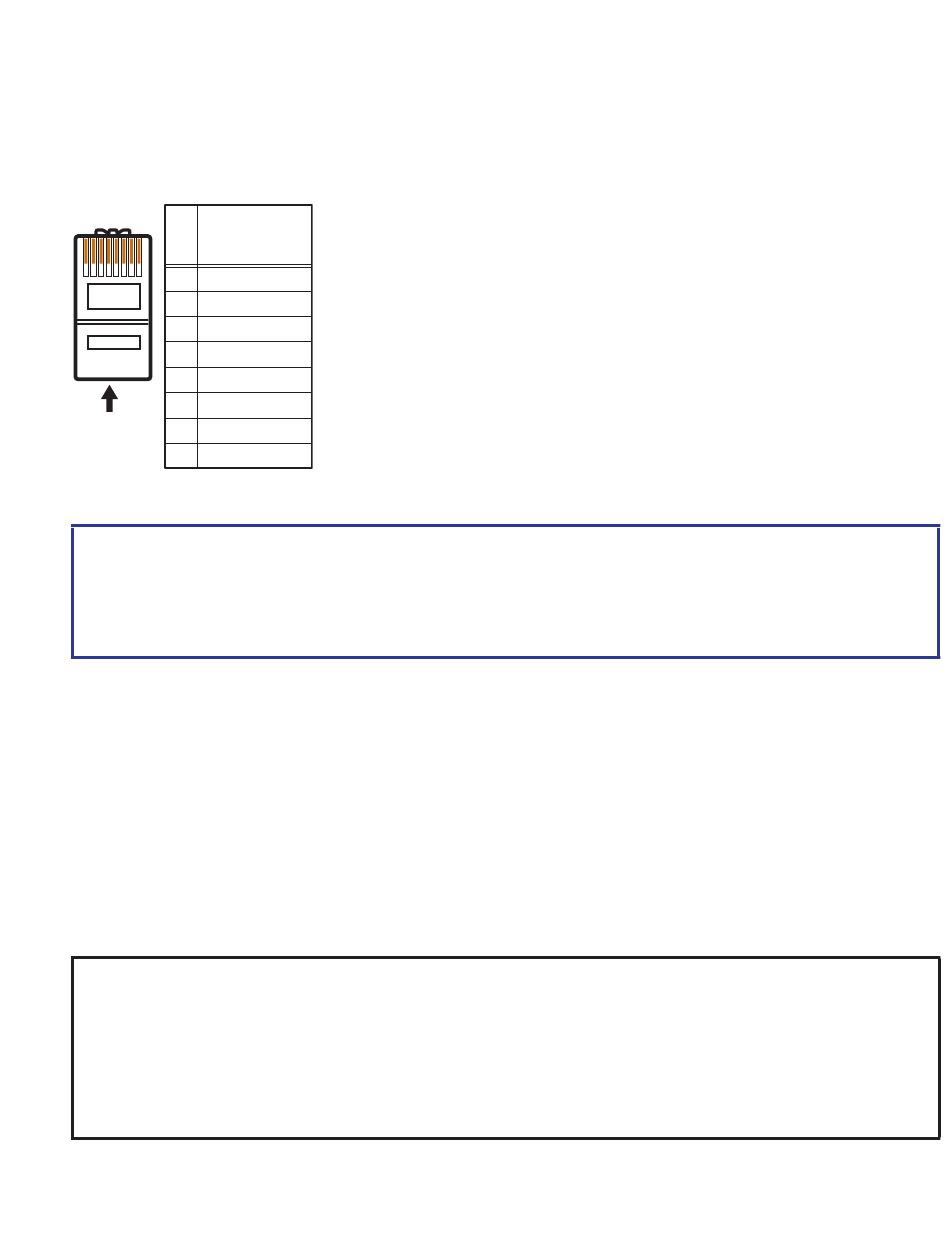

Figure 7. RJ‑45 Pin Assignment for DTP Communication
ATTENTION:
•
Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the XTP
products or with DTP transmitters or receivers.
•
N'utilisez pas le câble audiovisuel Skew-Free UTP version améliorée UTP23SF-4 Extron ou le câble
STP201 pour relier les produits XTP à des émetteurs ou récepteurs DTP.
Cable recommendations
Extron recommends using the following practices to achieve full transmission distances up to 330 feet (100
meters) and reduce transmission errors.
•
Use Extron XTP DTP22 STP cable for the best performance.
•
At a minimum, Extron recommends 22 AWG, solid conductor, STP cable with a minimum bandwidth of
500 MHz.
•
Terminate cables with shielded connectors to the TIA/EIA T 568 B standard.
• Use no more than two pass-through points, which may include patch points, punch down connectors,
couplers, and power injectors. If these pass-through points are required, use shielded couplers and punch
down connectors.
NOTE:
When using shielded twisted pair cable in bundles or conduits, consider the following:
• Do not exceed 40% fill capacity in conduits.
•
Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in
tight bundles.
•
Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.
• Separate twisted pair cables from AC power cables.
TIA/EIA T
568 B
Wire color
White‑orange
Orange
White‑green
Blue
White‑blue
Green
White‑brown
Brown
