Extron electronics DTP3 T 212 D User Manual page 11

Application Diagram

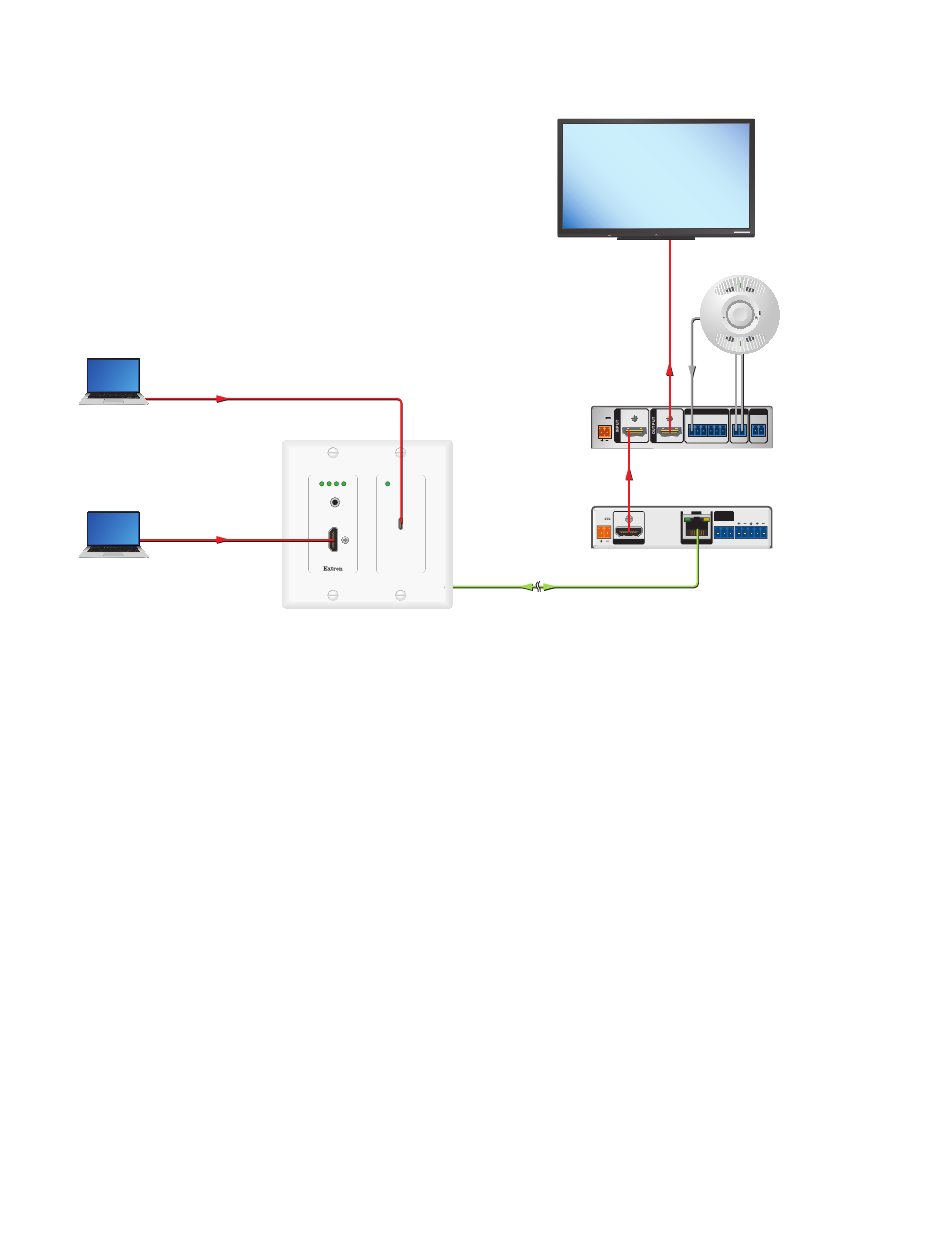

Figure 1 shows a typical application for DTP3 T 212 D.
USB-C Video
Laptop
Laptop
Figure 1. Typical Application of the DTP3 T 212 D
PWR HDCP HDMI USB-C
AUDIO IN
HDMI IN
HDMI
4K HDR Display
Extron
DTP3 T 212 D
Transmitter
SIGNAL
USB-C IN
CAT 6A Cable up to 330' (100 m)
MODEL 80
FLAT PANEL
HDMI/CEC
DIGITAL I / O +V OUT
POWER
12V
0.3A MAX
1 2 G 3 4 G 24 G
HDMI HDMI/CEC
HDMI
SIG LINK
OVER
POWER HDMI
DTP3
12V L
1.5A MAX
RS-232
Amphenol
Tx Rx G AUDIO OUT
OUTPUT DTP3 IN
DTP3 T 212 D • Introduction
Extron
OCS 100C
Occupancy
Sensor
Extron
IR / S
HD CTL 100
Workspace
S G
Automation Controller
Extron
R
DTP3 R 201
Receiver
3
