DTP3 T 101 D • Setup Guide
IMPORTANT NOTE:
Go to www.extron.com
before connecting the product to the power source.
The DTP3 T 101 D is a one-gang decorator-style transmitter for sending HDMI signals up to 330 feet (100 meters) over a shielded CATx
cable to an Extron DTP-enabled product. It supports video resolutions up to 4096x2160 @ 60 Hz at 4:4:4 chroma sampling and complies
with HDMI 2.0 and HDCP 2.3. The DTP3 T 101 D provides reliable switching and transmission of HDMI signals.
This guide provides quick start instructions for an experienced installer to set up and operate the DTP3 T 101 D. For full installation,
configuration, and operation details, see the DTP3 T 101 D User Guide, available at www.extron.com.
H
HDMI IN HDMI IN
A
a
Front Panel

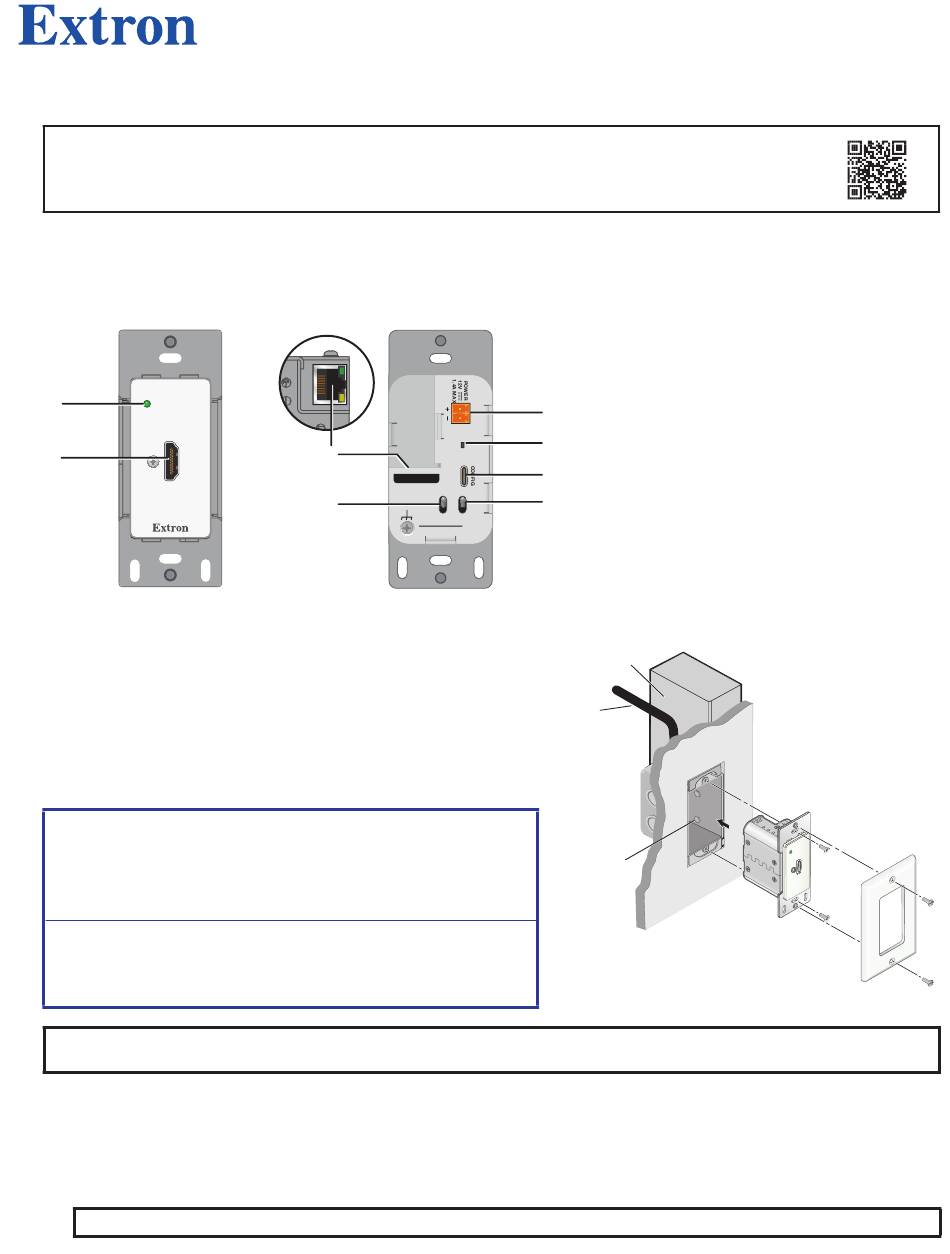

Figure 1. DTP3 T 101 D Front and Rear Panel Features
Installation
Step 1 — Disconnect Power
Disconnect all equipment power sources.
Step 2 — Prepare the Mounting Surface
ATTENTION:
•
Installation and service must be performed by authorized
personnel.
•
L'installation et l'entretien doivent être effectués par le personnel
autorisé uniquement.
•
The unit must be installed in accordance with the National Electrical
Code and with local electrical and safety codes.
•
L'unité doit être installée conformément au National Electric Code
et aux normes électriques et de sécurité locales.
NOTE:
Use a wall box with a depth of at least 3.0 inches (7.6 cm). Alternatively, the included mud ring (MR 100) can be used. For more
information, see the full product user guide at www.extron.com.
a.
Place the the wall box against the installation surface and mark the opening guidelines.
b.
Cut out the material from the marked area.
c.
Secure the wall box to the wall stud with 10-penny nails or #8 or #10 screws, leaving the front edge flush with the surface (see figure 2).
d.
Run all required cables (see
e.
Do not install the transmitter into the box until
NOTE:
In order to fit the unit in the junction box, do not install boots on TP cables and RJ-45 connectors.
for the complete user guide, installation instructions, and specifications
Top View
F
OUT
E
SEND POWER
Rear Panel
step 4 and step 5 on page 2) and secure them with cable clamps.
step 7.
B
G
RESET
C
D
HDBT
OFF DTP
DTP3 T 101 D
Wall Stud
Signal
Output
Cable
Screws
or Nails
Figure 2.
HDMI input
A
Power inlet
B
Config port
c
DTP/HDBT toggle switch
D
Send Power toggle switch
E
DTP output
F
Reset button
G
Power status LED
H
M I IN
H D
a
Extron
DTP3 T 101 D
Transmitter
Decorator-Style
Faceplate
Wall Installation
1
