Maintenance of the RSTAR Affinity Tilt Logger is limited to replacing the battery
for the ADL303 when depleted.
CAUTION: Ensure that water from the environment does not enter the enclosure
while replacing the battery.
Follow the steps below to replace the ADL303 battery:
1. Wipe any excess dirt or debris away from the interface between the
polycarbonate lid and the base plate
2. Loosen the 4 enclosure captive screws
3. Gently lift the side of the lid above the AFFINITY marking. The lid will be
retained by rubber hinges underneath the label

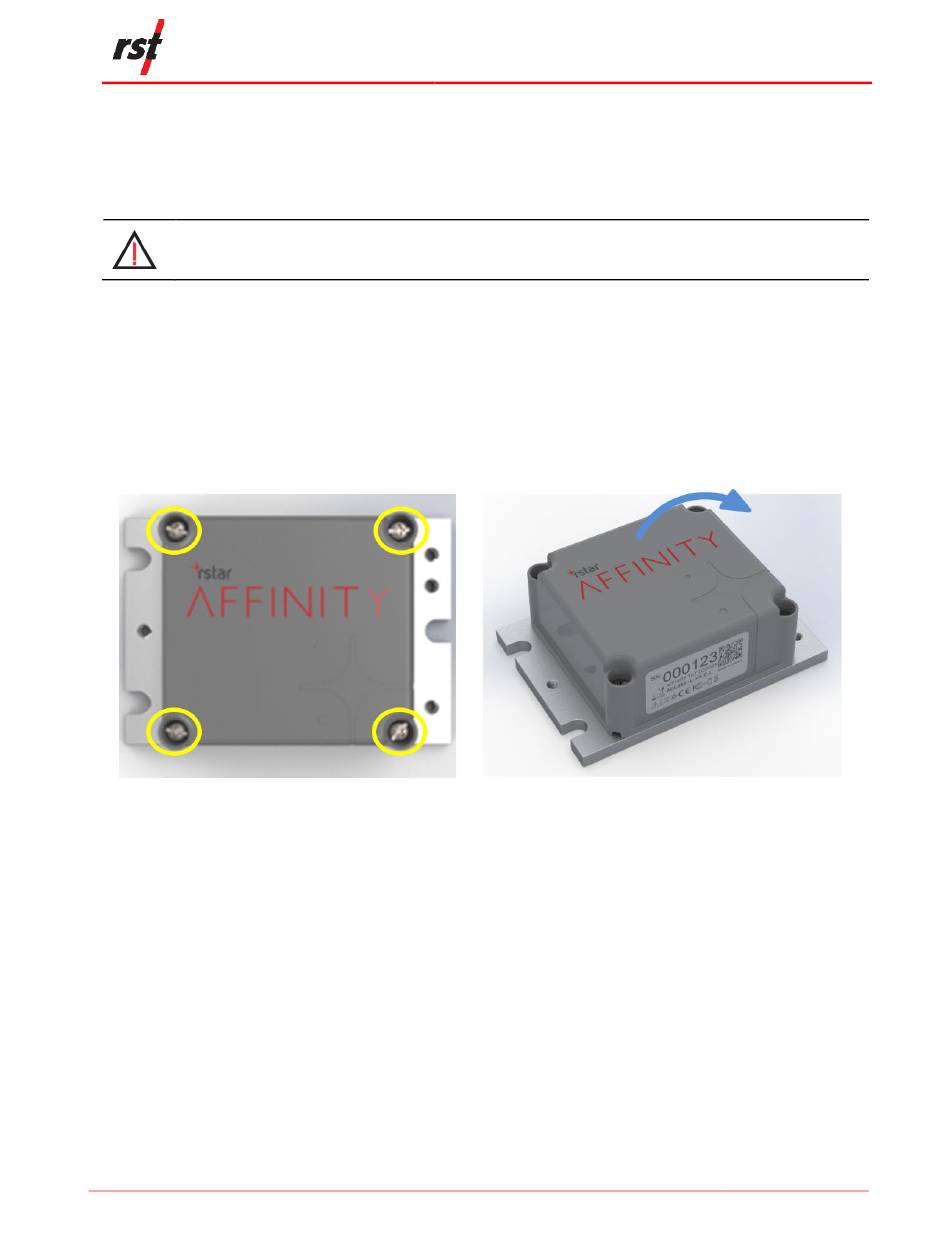

Figure 76: Remove Enclosure Captive Screws and Lift the Enclosure Lid to Replace
4. Remove the depleted cell from the enclosure by using the pull loop
5. Transfer the pull loop to the new cell
6. Insert the new cell into the battery holder, ensuring that the positive button
side of the terminal is correctly oriented
7. Check to make sure gasket is correctly seated in the lid groove, then place
the lid back on the baseplate. Tighten the 4 enclosure captive screws as
described in Section 6.1
8. Initialize the new battery in the field utility application
