Figure 66: Installing Steel Cup Enclosed Magnets Onto The Affinity Tilt Logger; Table 5: Magnet Fastener Tightening Torque For Stainless Steel Base Plate - RST Instruments RSTAR Affinity Installation And User Manual

Table 5: Magnet Fastener Tightening Torque for Stainless Steel Base Plate

Base Plate Material
Stainless Steel

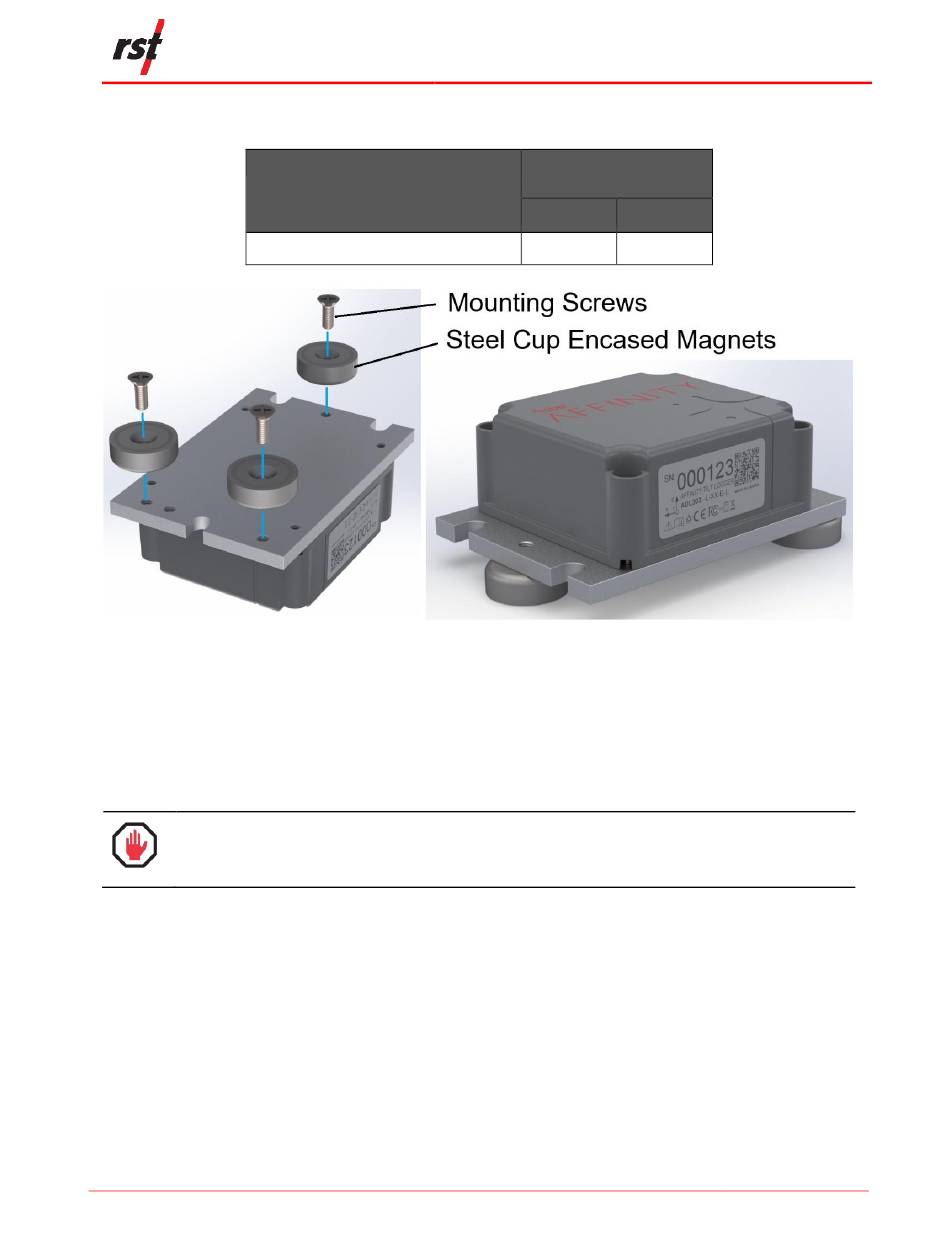

Figure 66: Installing Steel Cup Enclosed Magnets onto the Affinity Tilt Logger

3. While holding the plastic enclosure and part of the base plate of the Affinity
Tilt Logger with two hands, tilt the instrument and gradually bring it towards
the steel surface. Slowly allow the magnet to contact the steel surface, one
magnet at a time until the Affinity Tilt Logger is securely attached to the steel
surface.
WARNING: Each magnets has a pull force of approximately 50 lbs (23 kg). It is
recommended to use safety gloves and use precautionary measures when
handling the Logger to prevent injuries.
PSM0005A
Released: 23 Jan 2025
Magnet Fastener
Tightening Torque
in-lb
21
RST Instruments Ltd.
RSTAR Affinity Tilt Logger
Installation and User Manual
N.m
2.37
Page 60
