7.4.6 Angle Bracket Mounted in Horizontal Orientation Using ¼"
Drop-In Anchors
1. If provided, 3 sets of ¼" x 1" long drop-in anchors, hex bolts and washers
will be required to install each Affinity Tilt Logger. Refer to the earlier section
for instructions to assemble the Affinity Tilt Logger onto the Angle Bracket.

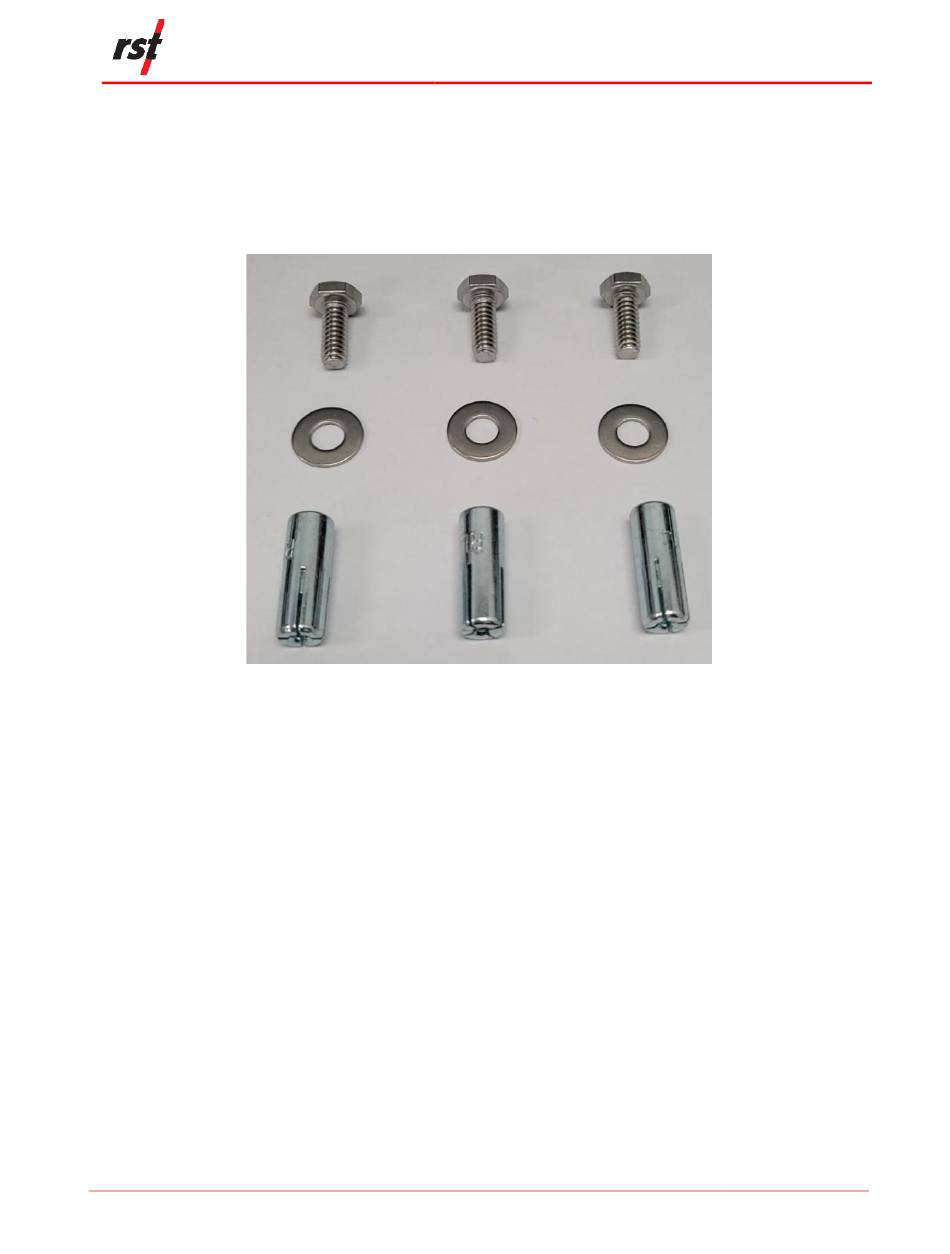

Figure 52: ¼" x 1" Long Drop-In Anchors, ¼" x 5/8" Long Hex Bolts and ¼" Flat Washers
2. Hole set D consisting of hole D1, and bushings D2 & D3 of the Drilling
Template will be used for this installation. Note that hole D1, bushing D2 &
bushing D3 corresponds to the three mounting holes on the Affinity Tilt
Logger Angle Bracket as shown in the figure below.
