7.4.7 Mounting onto a 2" Diameter Pole Using U-Bolts

1. Assemble the Affinity Tilt Logger onto the Angle Bracket using the supplied
mounting fasteners as mentioned in the earlier section.

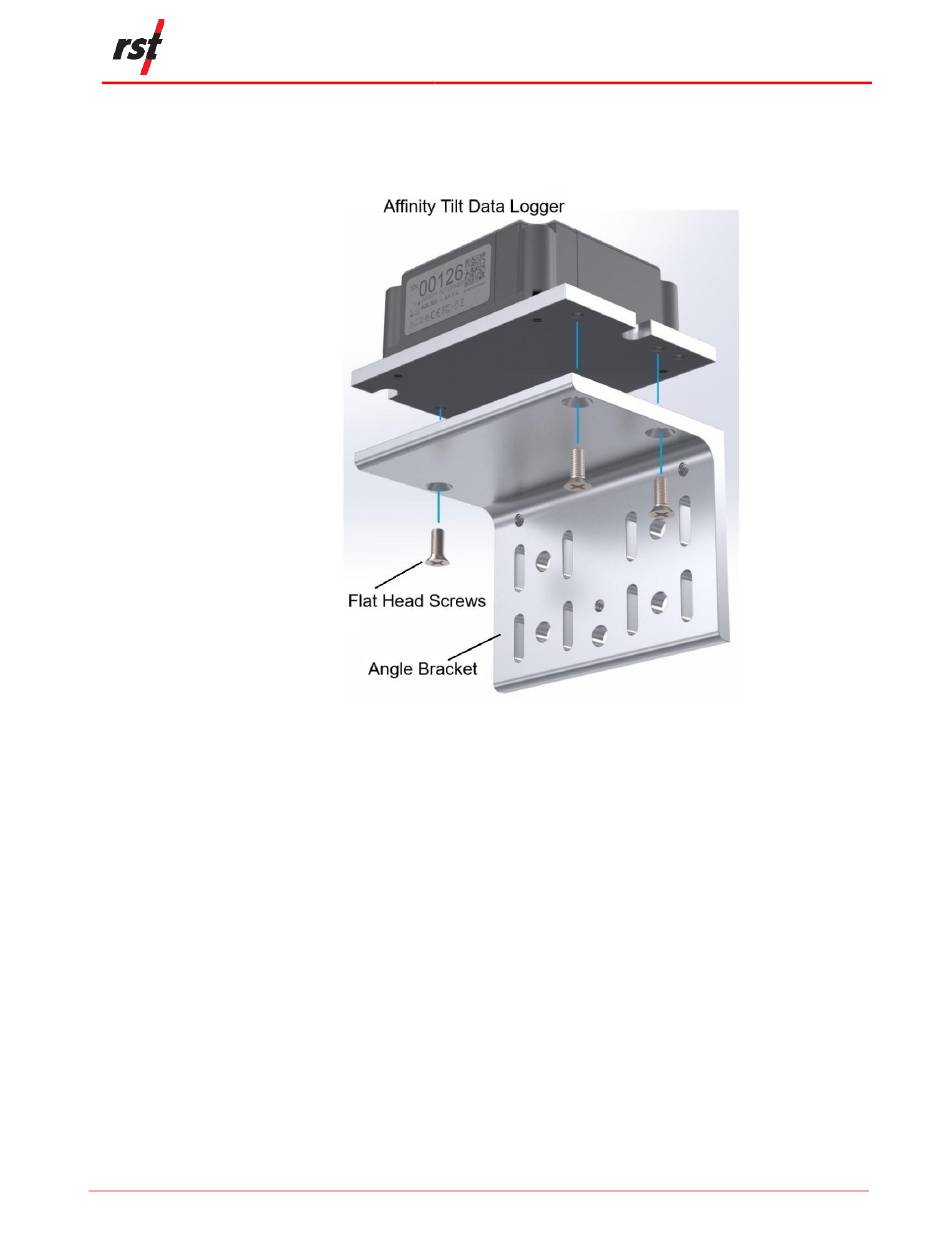

Figure 62: Assembling Angle Bracket onto Affinity Tilt Logger

2. To install the Affinity Tilt Logger onto a 2" diameter post, install a pair of the
2" U-bolts through the circular holes on the Angle Bracket. Level as needed
and tighten the ¼" Hex Nuts to 75 in-lbs. (8.47 Nm).
