- Page 1 RST INSTRUMENTS LTD. C109 Pneumatic Readout Instruction Manual RST Instruments Ltd. 11545 Kingston St Maple Ridge, BC Canada V2X 0Z5 Tel: (604) 540-1100 Fax: (604) 540-1005 e-mail: info@rstinstruments.com...
- Page 2 C109 Pneumatic Readout Although all efforts have been made to ensure the accuracy and completeness of the information contained in this document, RST Instruments reserves the right to change the information at any time and assumes no liability for its accuracy.
-
Page 3: Table Of Contents
12 S & F ............19 OFTWARE IRMWARE PDATES 13 W ..................19 ARRANTY 14 C ..................20 ONTACT 15 A A – C109 M ..........21 PPENDIX HART 16 A C – S ............. 22 PPENDIX PECIFICATIONS RST Instruments... - Page 4 Figure 11 – Monitor Settings Options ................... 9 Figure 12 – Monitor Display ......................9 Figure 13 – C109 Quick Start Instructions .................. 10 Figure 14 – Zero Readout ......................11 Figure 15 – Zero Readout – select location ................11 Figure 16 –...
-
Page 5: Overview

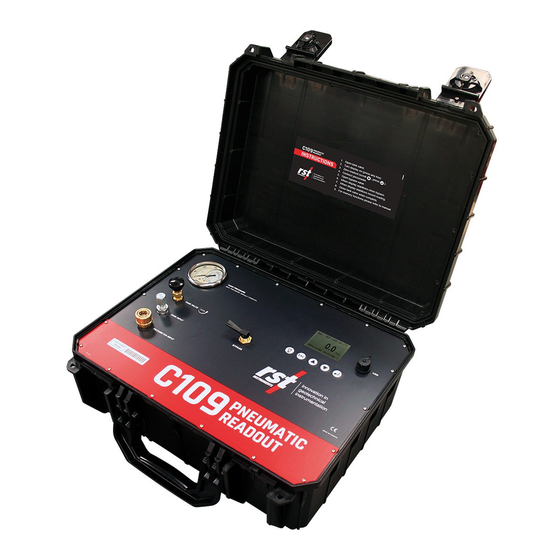

The C109 comes well-equipped with standard features such as a large graphics display with backlight. The C109 is a precision instrument and should be treated as such. It should be protected against shock and heavy vibration. Its case is water resistant; however care should be taken to avoid getting the open unit wet, as damage to internal components could occur. -
Page 6: Quick Start Instructions
UICK TART NSTRUCTIONS The following instructions outline the basic steps needed to take and store readings with the C109 Pneumatic Readout with the appropriate references to sections in the manual: • Install the Multireadout Host Software on a Desktop or Laptop PC (refer to Multireadout Host Software Instruction manual). - Page 7 C109 Pneumatic Readout Please note there is no industry standard for N fittings. Both common types are provided with the RST C109 Pneumatic Readout, however, we recommend compatibility be verified. RST Instruments...
-
Page 8: Maximum Safe Working Pressure
C109 Pneumatic Readout 3.1 Maximum Safe Working Pressure The maximum safe working pressure for the instrument is 2000 PSI (13 500 kPa). This pressure is monitored on the TANK PRESSURE gauge. Warning Do not exceed 2000 PSI (13 500 kPa) or serious damage to the instrument or personal injury can result. -
Page 9: Powering O N /Off
C109 Pneumatic Readout OWERING The C109 readout can be powered on anytime by pressing any key. The unit can be powered off manually or automatically. To power off manually, use the up/down arrows to scroll to the following screen: RST C109 Power Off Figure 2 –... -
Page 10: Figure 5 - Auto Backlight Off
C109 Pneumatic Readout RST C109 Auto Backlight Off 10 Seconds Figure 5 – Auto Backlight Off Use the up/down scroll buttons to adjust. RST Instruments... -
Page 11: C109 Front Panel Controls
Battery: 4.5V 2017/01/12 17:04:05 Figure 6 – C109 Readout Details This displays the model, version number, serial number and the current date/time settings. It is always a good idea to ensure that the date and time are correct, as this may affect any readings being stored in memory on the unit. -
Page 12: Setting The Date & Time
C109 Pneumatic Readout 5.2 Setting the Date & Time Keeping the date and time current ensures that you have accurate historical records of your data. Whenever a reading is taken and stored in the units’ memory, an associated date/time stamp is always included. -
Page 13: Monitor Settings
C109 Pneumatic Readout ONITOR ETTINGS Various parameters of the C109 readout can be adjusted by selecting the Monitor Settings menu as shown below: RST C109 Monitor Figure 10 – Monitor Settings Press Enter to choose whether a custom or predefined setting is required. -
Page 14: Manual Readings
EADINGS IN EMORY The C109 has 128k of internal memory allowing it to store over 11 000 time-stamped, readings. The current memory usage is displayed on Memory screen, as shown in Figure 16. Data can be reviewed either on-board or downloaded to a host computer via the USB connector. Individual locations can be preconfigured in the office via the Multireadout Host Software or by creating locations on the unit itself (section 10). -
Page 15: Zero Readout
Zero Readout 0.865 13.05 Press enter to zero Figure 15 – Zero Readout – select location • Press Enter to store the reading. • After storing the reading, the C109 will return the user to the Monitor screen. RST Instruments... -
Page 16: Creating Memory Locations In The Field
In most cases it is recommended that the C109 be pre-configured in the office prior to taking readings in the field. In this manner, site location names can be setup ahead of time allowing the field personnel to be able to arrive at instrument locations, and store readings without needing to create a location in the units’... -
Page 17: Figure 18 - New Location Units
Location 1 Output Units: psi Figure 18 – New Location units • The C109 automatically increments the new location to the next number available. • Select desired units using arrow up and down keys, then press Enter RST C109 Location 1 Precision: Figure 19 –... -
Page 18: Store Readings
• Reading time and zero value are displayed for a reference. • The C109 will prompt you with the question: Press Enter to accept, press Enter to store the reading. • After storing the reading, the C109 will return the user to the previous screen. -
Page 19: Reviewing Data
C109 Pneumatic Readout 10.2 Reviewing Data To review any reading on the C109 unit itself, please follow these instructions: • Power on the readout by pressing any key. • Using the arrow keys, scroll down to Memory, press Enter. •... -
Page 20: Datalogging
C109 Pneumatic Readout 10.3 Datalogging The C109 has a basic datalogging function where the user is able to set the datalogging interval and the number of iterations. • From the C109 main reading screen scroll to Memory and press Enter. -
Page 21: Figure 27 - Datalogging Number
C109 Pneumatic Readout RST C109 Auto Store Data Number To Store Stop On Memory Full=0 2017/01/17 17:04:05 Figure 27 – DataLogging Number • Use the arrow keys to select the number of iterations you wish the readout to datalog (in the above case, it will take 50 readings at a 4 second interval). -
Page 22: Deleting
C109 Pneumatic Readout 10.4 Deleting All location information can be deleted from the C109 readout or via the host Software. This is done by the following: • Power on the display by pressing any key. • Using the arrow keys, scroll down to Memory, press Enter. -
Page 23: C109 Internal Battery
12 S & F OFTWARE IRMWARE PDATES The C109 readout is designed such that the unit’s software and firmware can be easily updated by the customer through the USB port. Please regularly visit: http://www.rstinstruments.com for product updates. 13 W ARRANTY RST Instruments Ltd. -
Page 24: Contact Us
C109 Pneumatic Readout 14 C ONTACT For sales information contact: sales@rstinstruments.com For technical support contact: rst_support@rstinstruments.com Head Office: 11545 Kingston St Maple Ridge, BC Canada V2X 0Z5 Our office hours are: 8:30am – 5:00pm PST Monday – Friday (excluding holidays) -
Page 25: Appendixa - C109 Menu Flow Chart
C109 Pneumatic Readout 15 A A – C109 M PPENDIX HART The following flow chart outlines all functions of the C109 front panel controls: Figure 33 – C109 Menu Flow-Chart RST Instruments... -
Page 26: Appendixc - Specifications
C109 Pneumatic Readout 16 A C – S PPENDIX PECIFICATIONS Description Specification Display Graphic 128 x 64 pixels large character display Display Backlight High efficiency LCD with auto off Memory 128 kB Max Instrument Locations Memory Capacity 6500 custom labeled points...
