Angle Bracket Mounted Horizontal Orientation Using Magnets; Figure 69: Direct Mounted Affinity Tilt Logger Installed In Horizontal Orientation Using Magnets - RST Instruments RSTAR Affinity Installation And User Manual

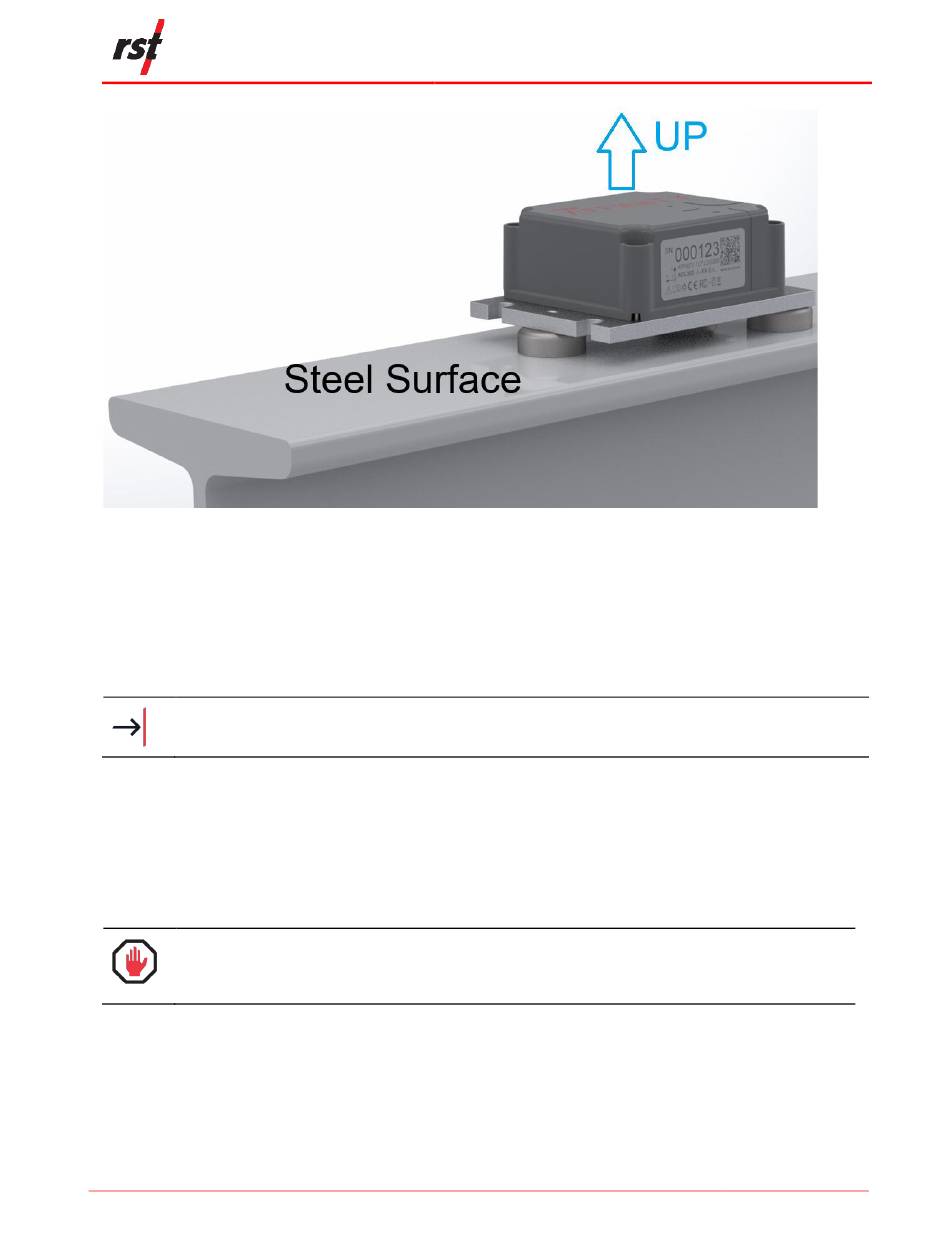

Figure 69: Direct Mounted Affinity Tilt Logger Installed in Horizontal Orientation using
7.4.10 Angle Bracket Mounted Horizontal Orientation using
Magnets
NOTE: This method attaches the Affinity Tilt Logger onto a flat steel surface
without the need for drilling or tapping holes onto the steel surface.
1. Ensure that the steel surface where the Affinity Tilt Logger will be mounted
to is clean, free of rust, uneven painted surface, or any debris that might
interfere with the magnetic attachment. For glossy surfaces and surfaces
with chipped paint, it is recommended to use an Emery Cloth (80, 100 or
120 Grit) to roughen the surface.
WARNING: Each magnets has a pull force of approximately 50 lbs (23 kg). It is
recommended to use safety gloves and use precautionary measures when
handling the Logger to prevent injuries.
2. For the Angle Bracket mounting, attach the supplied Steel Cup Encased
Magnets onto the Affinity Tilt Logger's Angle Bracket with the supplied
mounting screws. Use thread locker as needed and tighten the fasteners to
the recommended torque setting as shown in the table below. Note that the
Angle Bracket Magnet Mounting option is available in Aluminum made Angle
Bracket and Base Plate only.
