6.2.5 Sampling A Live Reading From The Tilt Logger; Figure 11: Main Dashboard Populated With Selected Gateway's Details - RST Instruments RSTAR Affinity Installation And User Manual

3. After selecting a Gateway, the user will be returned to the Main Dashboard.
Gateway information will populate, replacing the "Pair Gateway" option (see
Figure 11).

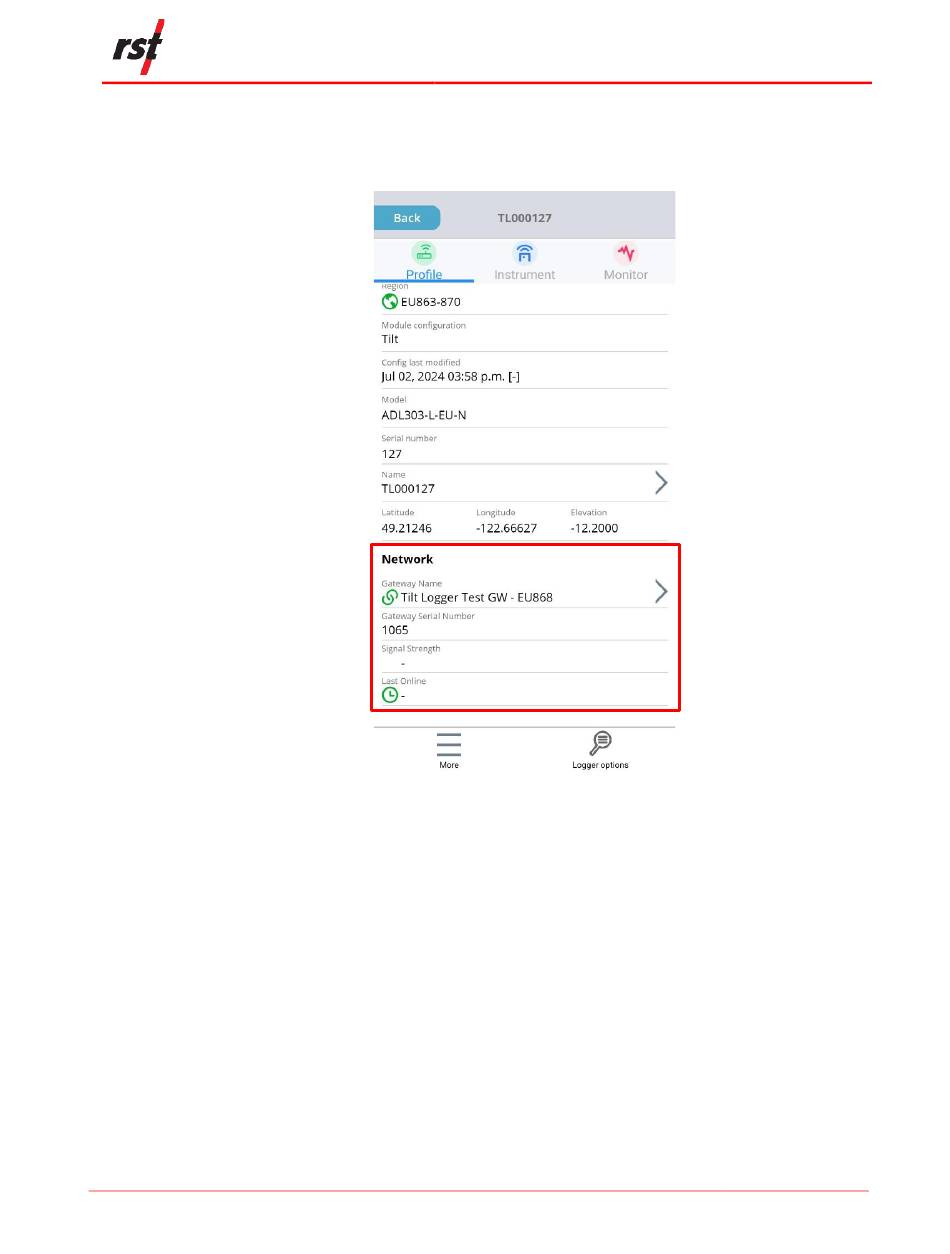

Figure 11: Main Dashboard Populated with Selected Gateway's Details

4. The Affinity Tilt Logger is now connected to the Gateway. The paired Tilt
Logger will appear on the web-based Affinity software. However, telemetry
data and connectivity information will be absent until after the first reporting
interval has elapsed.

6.2.5 Sampling a Live Reading from the Tilt Logger

From main dashboard, navigate to the "Monitor" panel.
Tap the "Refresh" icon. The app will spend a few seconds loading in the latest
information from the Tilt Logger.
