11. Re-install the Drilling Template onto the concrete surface and align hole A1
and bushing A2 with the 2 installed wedge anchors. Level as needed and
tighten the washers and nuts to secure the Drilling Template in place.

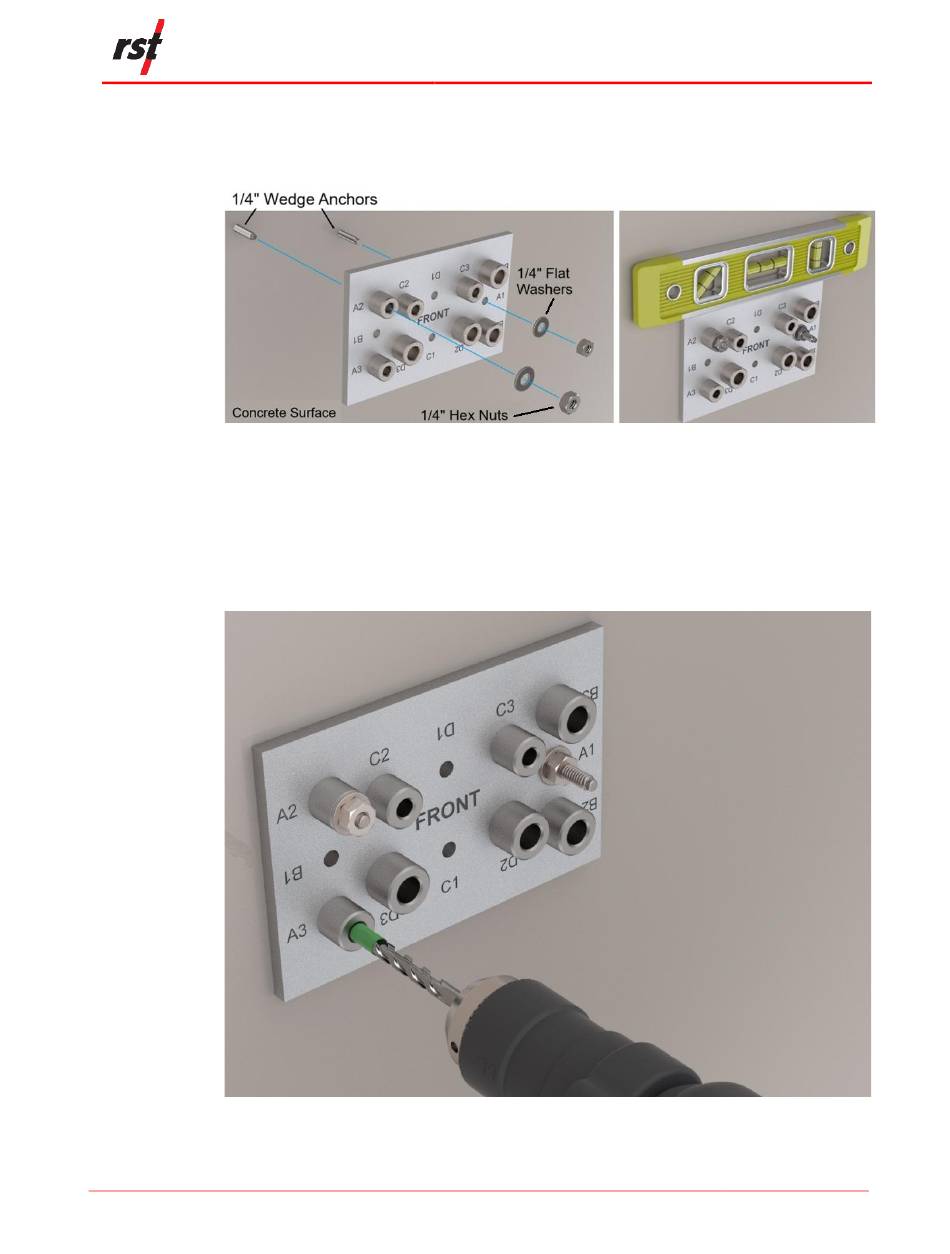

Figure 24: Fastening and Leveling Drilling Template on Hole A1 & Bushing
12. Use the second prepared drill bit for hole A2 & A3 to drill a third hole through
bushing A3. Drill until the masking tape touches the top surface of bushing
A3. This will ensure that the correct hole depth of 1-1/8" has been achieved.
Please ensure that the Drilling Template does not move during drilling.

Figure 25: Drilling Third Hole Through Bushing A3 for Wedge Anchor

PSM0005A
Released: 23 Jan 2025
A2 with Wedge Anchors
