7.4 M
OUNTING

7.4.1 Mounting Orientation

1. The Affinity Tilt Logger can be mounted with respect to 3 types of primary
orientations (horizontal, vertical and horizontal using an angle bracket).
2. Depending on the intended application, the unit can be directly mounted
onto a concrete surface using concrete ¼" wedge anchors or ¼" drop-in
anchors.
PSM0005A
Released: 23 Jan 2025
G
UIDELINES

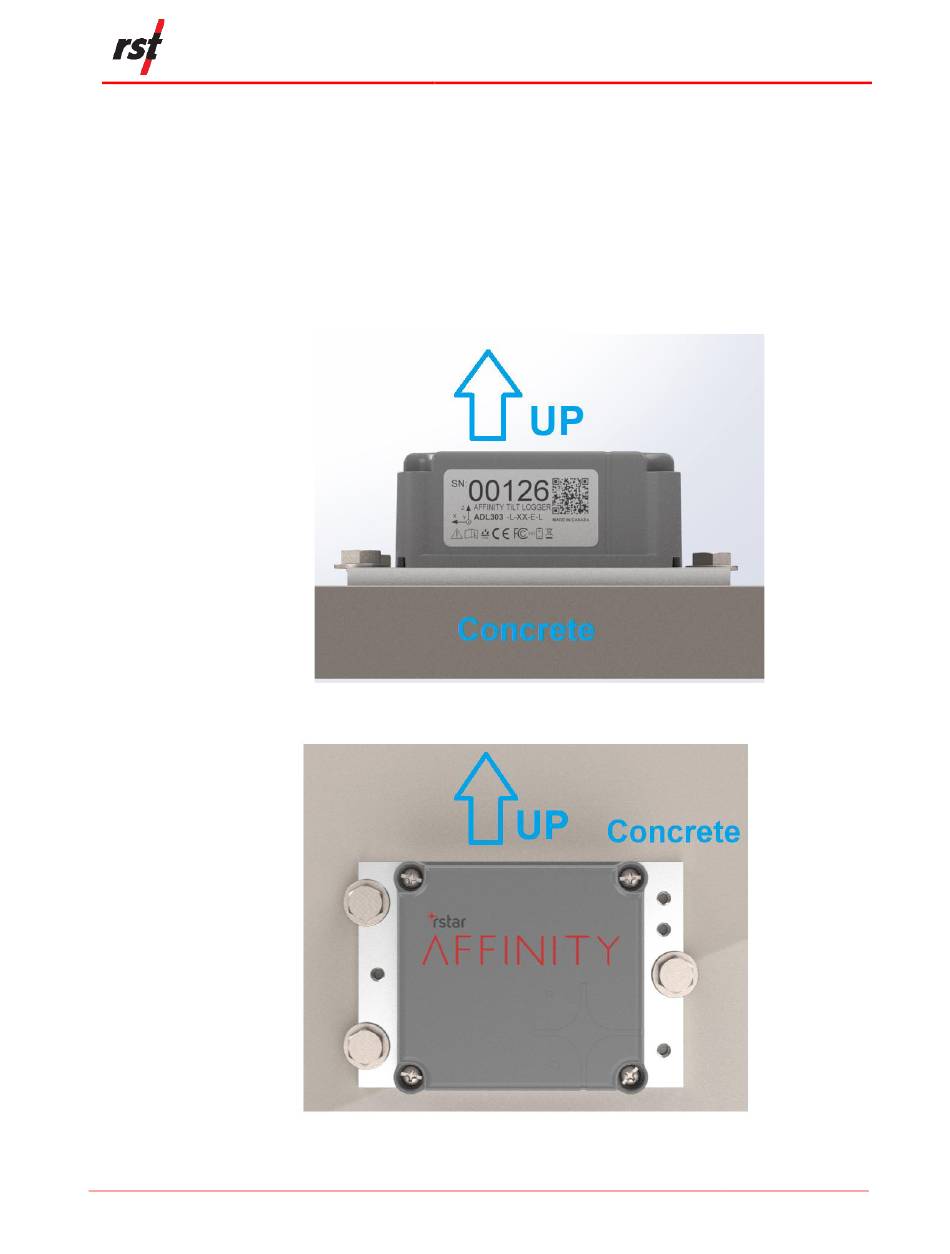

Figure 12: Direct Mounted Tilt Logger in Horizontal Orientation

Figure 13: Direct Mounted Tilt Logger in Vertical Orientation

RST Instruments Ltd.
RSTAR Affinity Tilt Logger
Installation and User Manual
Page 23
