3. The unit can also be assembled with an angle bracket to create a vertically
oriented Tilt Logger.

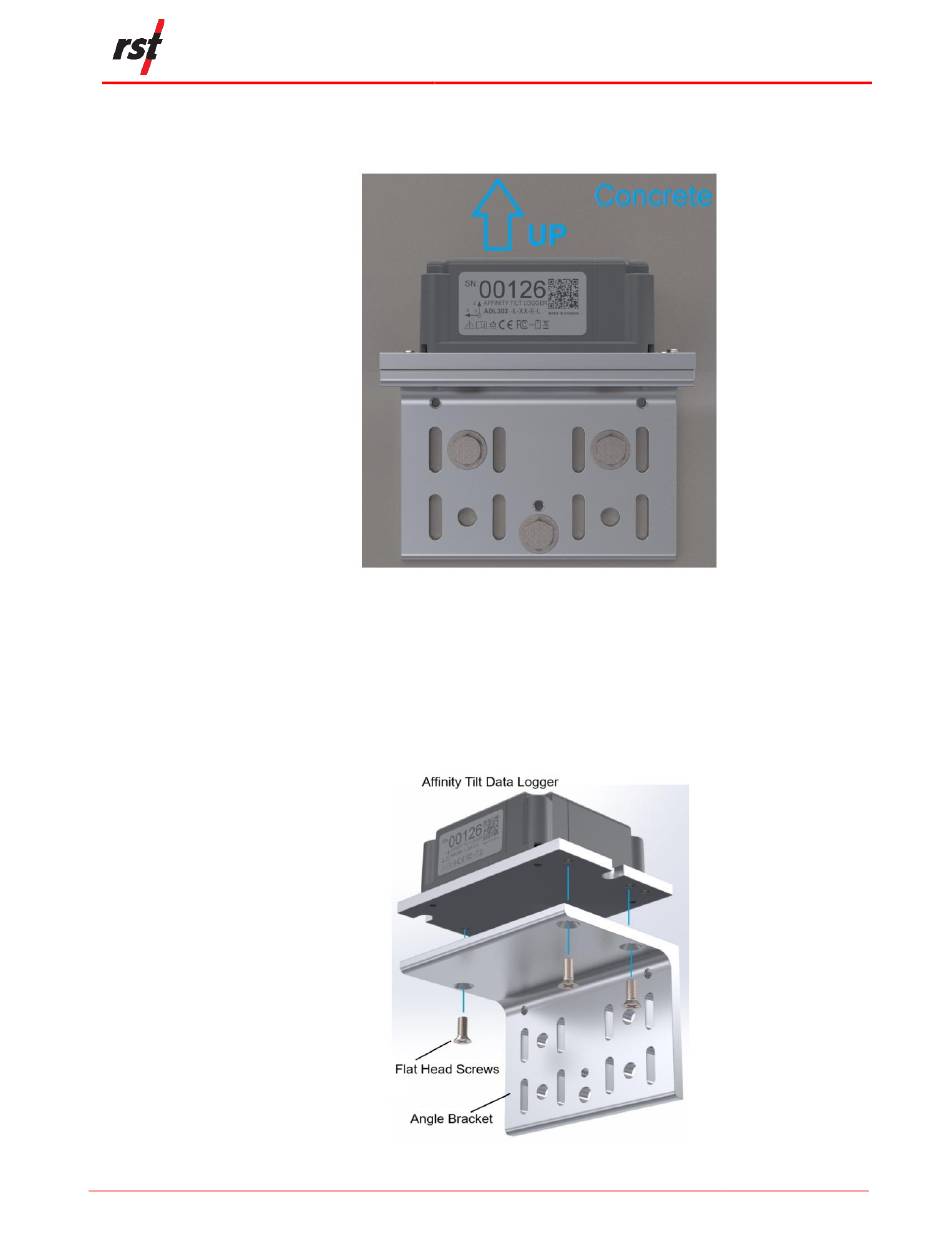

Figure 14: Angle Bracket Mounted Tilt Logger in Horizontal Orientation

4. To install a horizontally oriented Affinity Tilt Logger using a secondary
bracket, an angle bracket and mounting fasteners will be required. Align the
three screw holes on the base plate with the counter sink holes on the angle
bracket and assemble using the fasteners provided. Use the thread locker
as required and tighten the fasteners to the recommended torque settings as
shown in the following table.

Figure 15: Assembling Angle Bracket onto Affinity Tilt Logger
