7.5 P -I
OST NSTALLATION

7.5.1 Signal verification via Field Utility App

If connected to a Gateway, the dashboard will contain some Gateway
information.
1. Navigate to the Network Connection menu by selecting the Network arrow.
2. Press the "Check Signal" button in the menu shown. This will show the
signal strength between the Logger and Gateway as shown. A value will
only be shown if the Logger has already communicated once with the
Gateway. If communication has not yet occurred between the Gateway and
the base station, the signal strength will not be shown.
PSM0005A
Released: 23 Jan 2025
C
HECKS

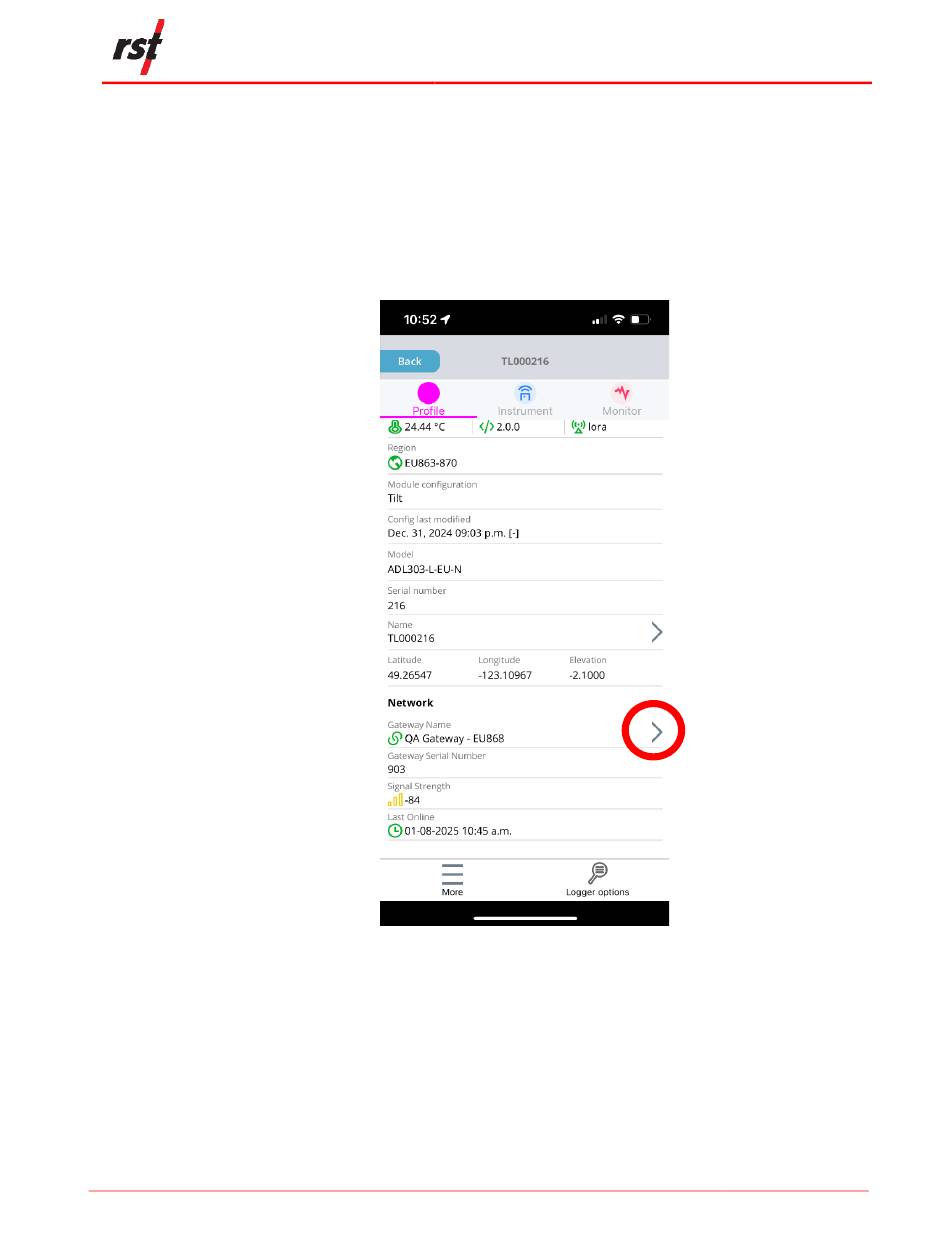

Figure 73: Navigating to the Network Connection Menu

RST Instruments Ltd.
RSTAR Affinity Tilt Logger
Installation and User Manual
Page 65
