WARNING: Do not use the Drilling Template as a guide to drill the first hole.
The Drilling Template may spin uncontrollably about the drill bit.
6. Install the first drop-in anchor by placing it inside the drilled hole. Ensure that
the drop-in anchor is flushed or slightly recessed about the concrete surface.
Use a setting tool to hammer the drop-in anchor permanently in place.

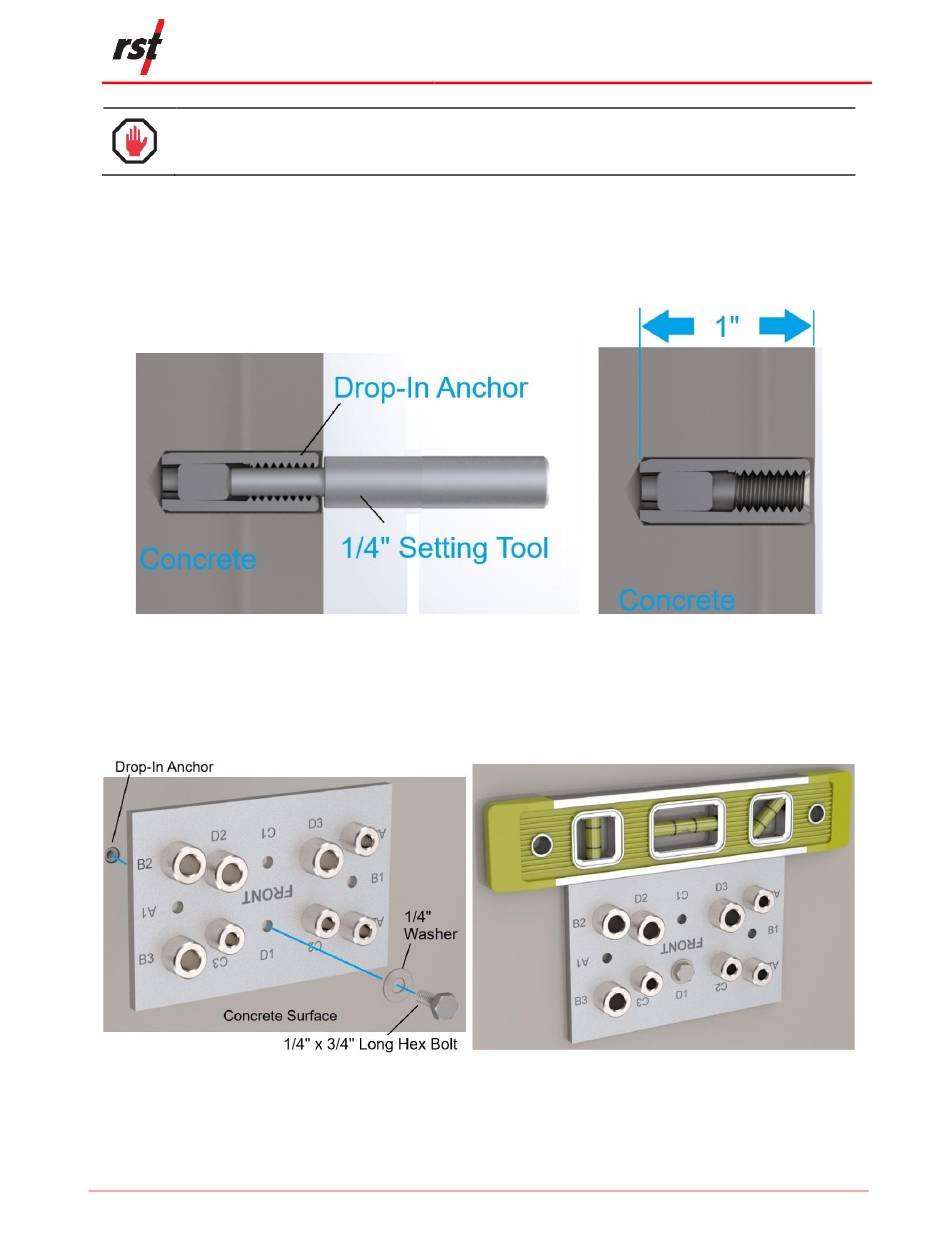

Figure 55: Setting Tool to set the ¼" x 1" long Drop-In Anchor inside concrete
7. Place the Drilling Template back onto the concrete surface and align hole
D1 with the installed drop-in anchor. Use the supplied ¼" x 3/4" long hex bolt
and washer, level as needed and tighten to clamp the drill template down.
Figure 56: Leveling and Fastening Drilling Template on Hole D1 with ¼" Drop-In Anchor,
PSM0005A
Released: 23 Jan 2025
Hex Bolt and Washer
