RSTAR Affinity Tilt Logger
Installation and User Manual

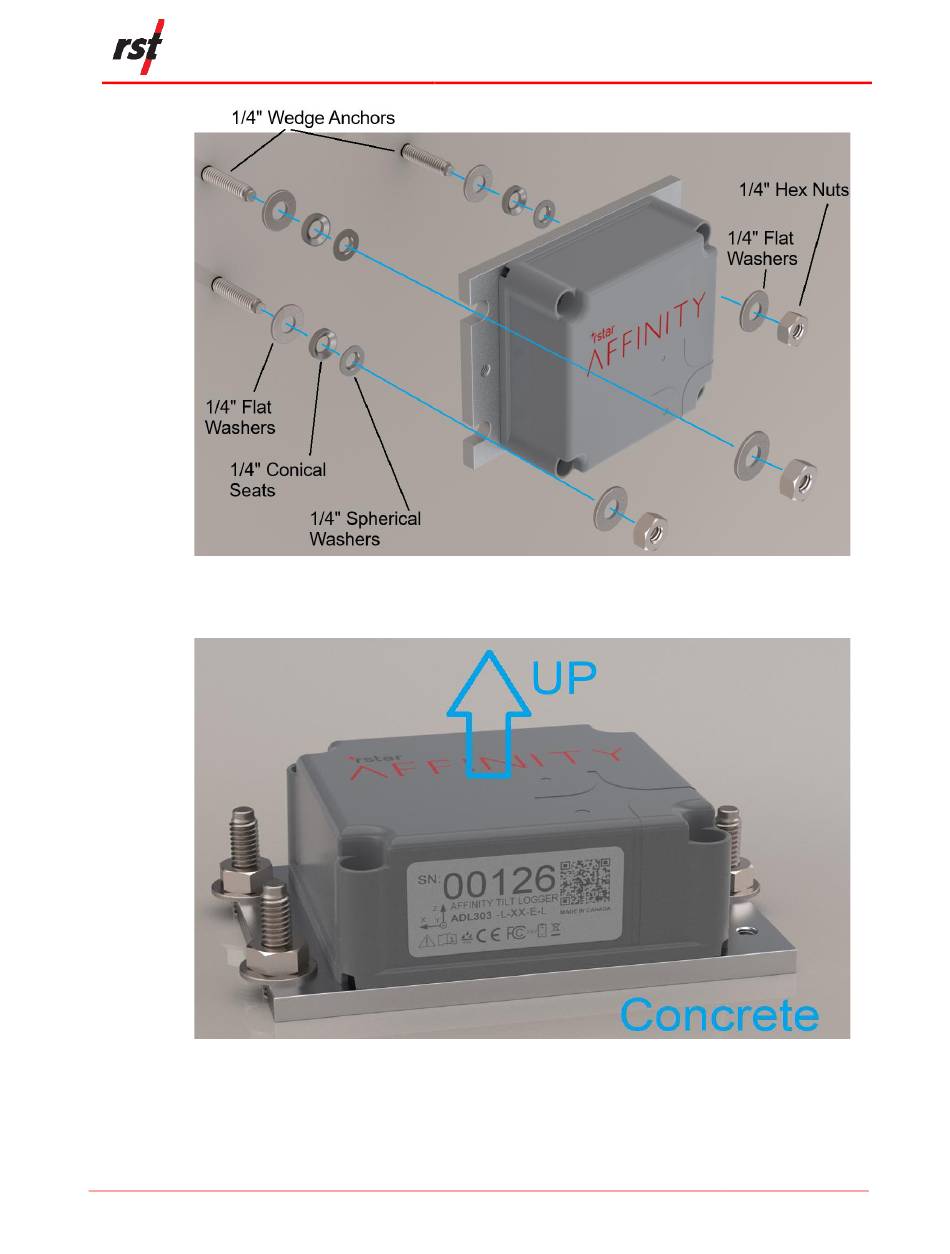

Figure 27: Installing the Affinity Tilt Logger with ¼" Wedge Anchors and Spherical
Washer set
Figure 28: Direct Mounted Affinity Tilt Logger installed at Horizontal Orientation
using ¼" Wedge Anchors
PSM0005A
RST Instruments Ltd.
Page 32
Released: 23 Jan 2025
