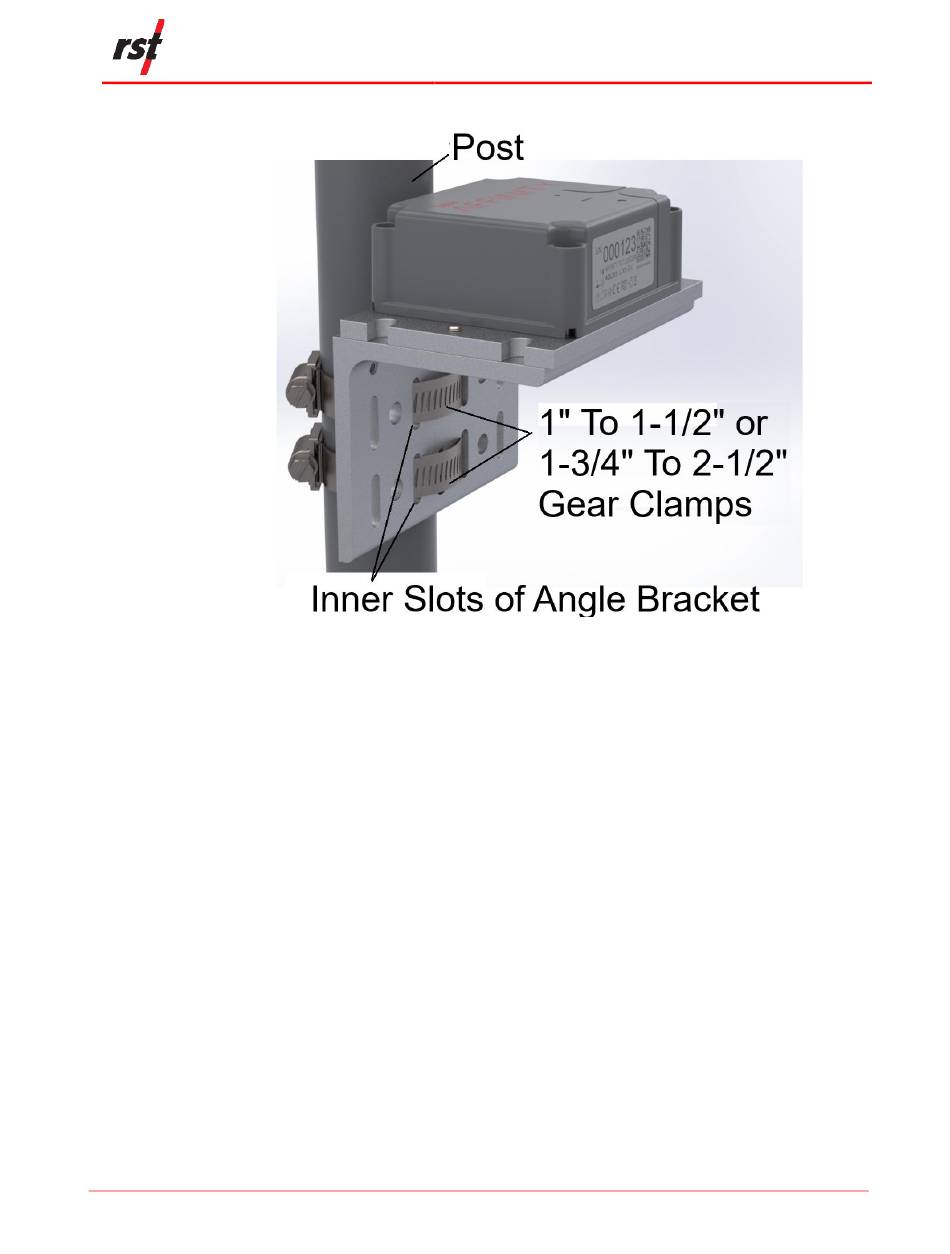

Figure 64: Installing the Affinity Tilt Logger with Gear Clamps through the Inner Slots
3. To mount the Affinity Tilt Logger onto a larger than 2-1/2" diameter post size,
install a pair of the required gear clamps onto the outer slots of the Angle
Bracket and level as needed. If the gear clamps are provided, tighten the
clamps to 30 in-lbs. to 34 in-lbs. (3.39 Nm to 3.84 Nm). Other clamps for
larger than 2-1/2" diameter post size range not listed on the gear clamp table
may also be used.
PSM0005A
Released: 23 Jan 2025
of the Angle Bracket
