Base Plate and Angle
Bracket Material
Stainless Steel
Anodized Aluminum

7.4.2 Mounting Onto a Concrete Structure

1. Determine the installation location, following all precautionary measures
mentioned previously. Ensure there is sufficient clearance to open the lid.
2. Align one of the X or Y axes of the logger with the expected direction of
movement. This alignment is crucial for accurate data collection.
3. Use the provided Concrete Drilling Template (see figure below) for the
following steps.
PSM0005A
Released: 23 Jan 2025

Table 2: Angle Bracket Fastener Tightening Torque

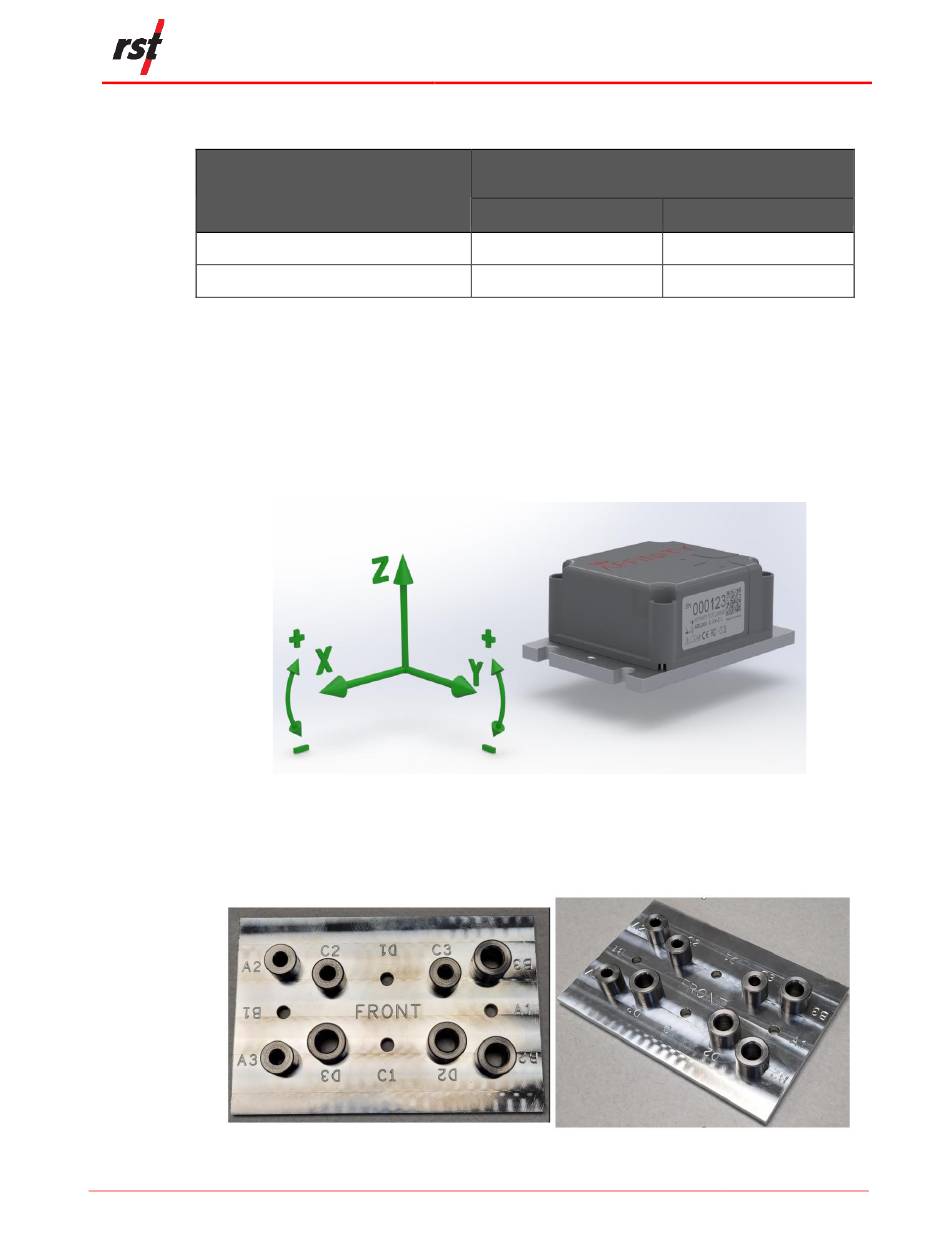

Figure 16: X and Y Axes for Affinity Tilt Logger

Figure 17: Concrete Drilling Template

RST Instruments Ltd.
RSTAR Affinity Tilt Logger
Installation and User Manual
Angle Bracket Fastener Tightening
Torque
in-lb.
24-25
28-30
Nm
2.71-2.82
3.16-3.39
