7.4.5 Angle Bracket Mounted in Horizontal Orientation Using ¼"
Wedge Anchors
1. If provided, 3 sets of ¼" x 2-¼" long wedge anchors, washers and nuts will
be required to install each Affinity Tilt Logger. Refer to the earlier section for
instructions to assemble the Affinity Tilt Logger onto the Angle Bracket.

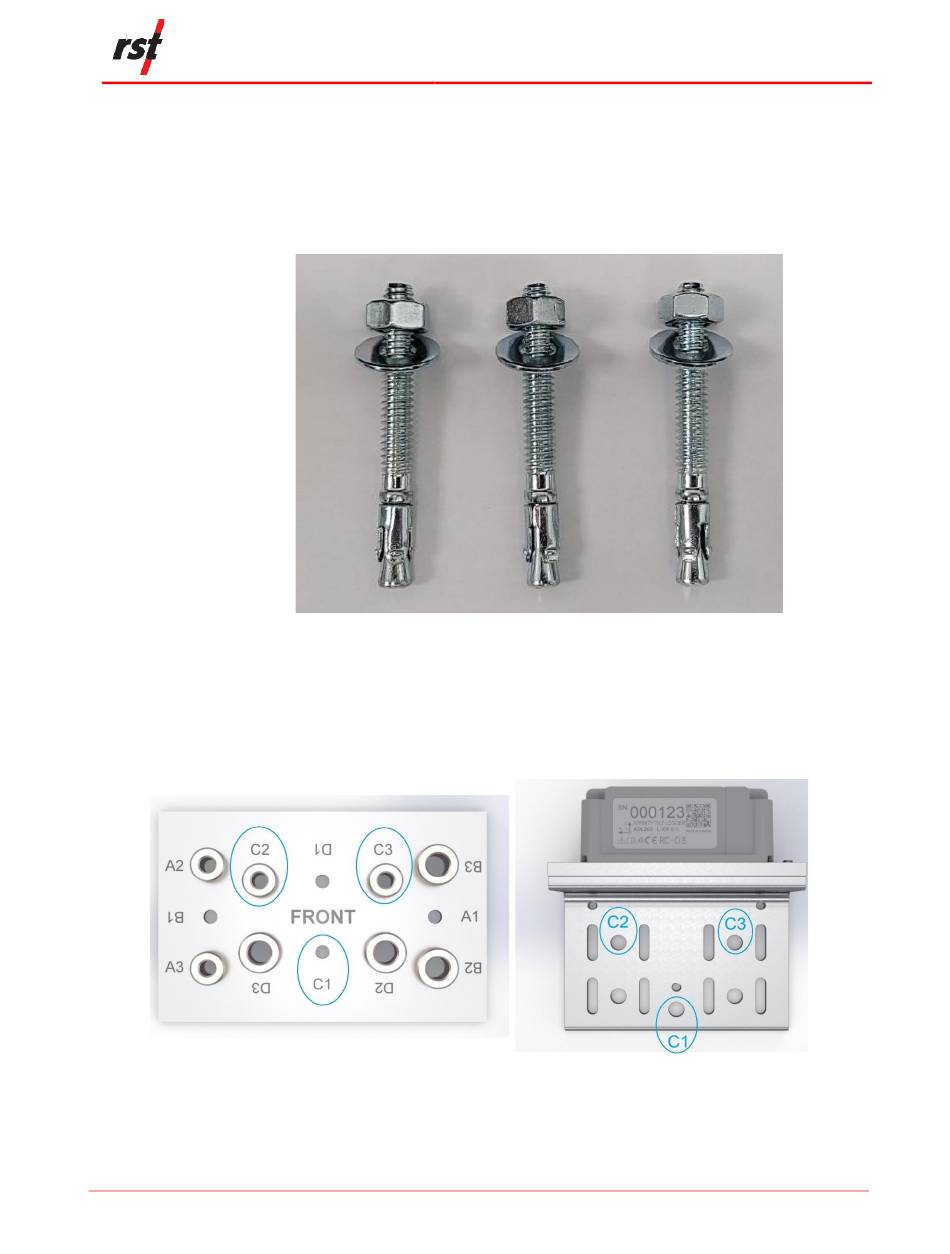

Figure 41: ¼" x 2-¼" Long Wedge Anchors, ¼" Flat Washers and ¼" Hex Nut
2. Hole set A consisting of hole C1, and bushings C2 & C3 of the Drilling
Template will be used for this installation. Note that hole C1, bushing C2 &
bushing C3 corresponds to the three mounting holes on the Affinity Tilt
Logger Angle Bracket shown below.
Figure 42: Drilling Template Hole Set C Corresponding to Tilt Logger Angle Bracket
PSM0005A
Released: 23 Jan 2025
Mounting Holes for ¼" Studded Wedge Anchor
RST Instruments Ltd.
RSTAR Affinity Tilt Logger
Installation and User Manual
Page 41
