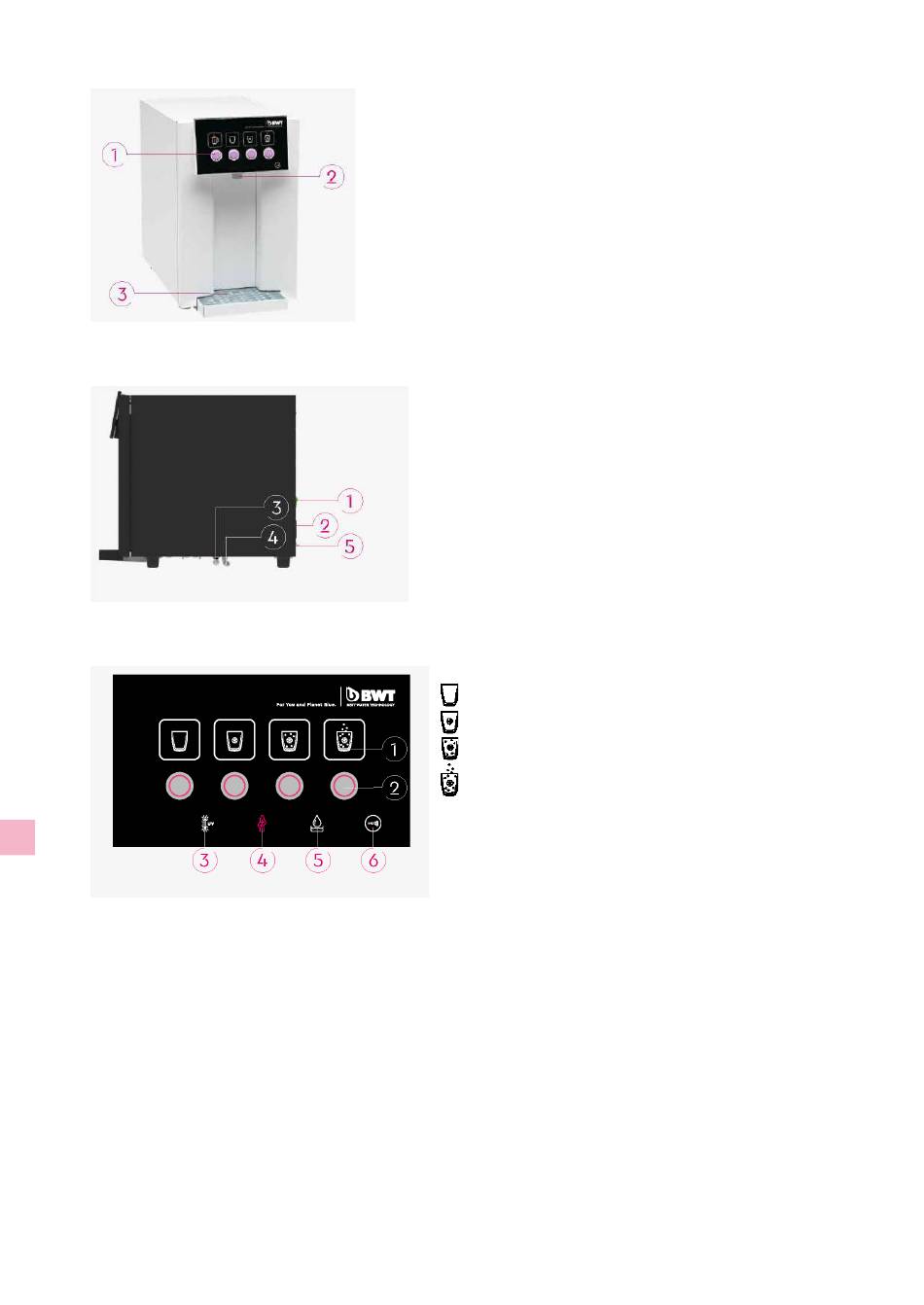

Fig. 4: Front view AQA drink Pro 60 HOT
4.2 SIDE VIEW & CONNECTIONS
Fig. 5: Side view AQA drink Pro 60
4.3 CONTROL PANEL
EN
Fig. 6: Control panel AQA drink Pro 60
34
1. Control panel with selection buttons and LED displays
2. Water outlet
3. Drip tray
1. On/off switch
2. Power supply
3. FEO connection
4. CO connection
5. Connection CO Monitor
1. Water options symbols
ambient, still
cooled, still
cooled, mild sparkling
cooled, sparkling
2. Selection button
3. LED icon for UV reactor
4. LED icon for filter status
5. LED icon for drip tray/leakage
6. NFC
