SMC Networks 6724AL2 Management Manual page 162

C
ONFIGURING THE

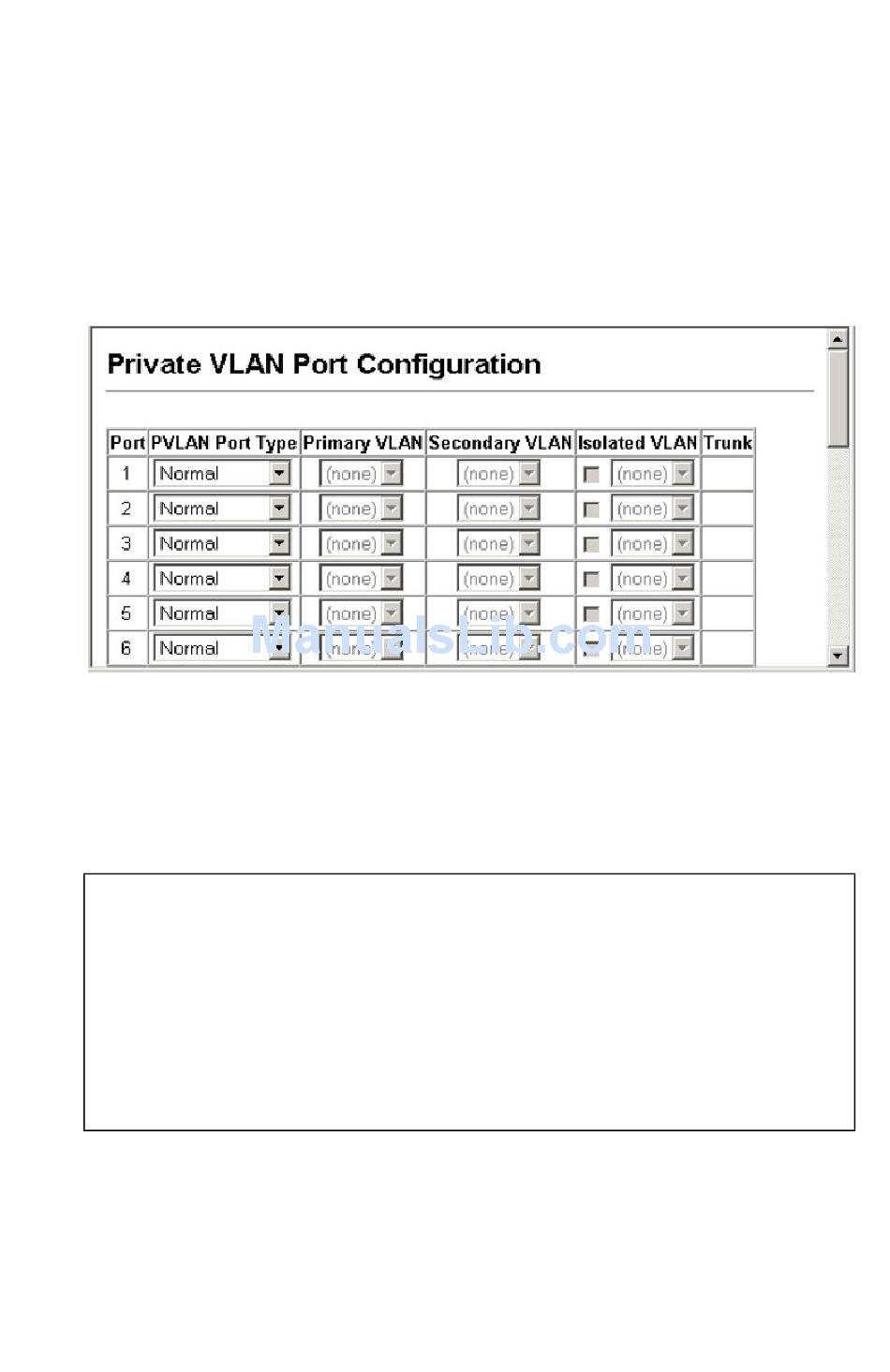

Web – Click VLAN, Private VLAN, Port Configuration or Trunk
Configuration. Set the PVLAN Port Type for each port that will join a
private VLAN. For promiscuous ports, set the associated primary VLAN.
For host ports, set the associated secondary VLAN. For isolated ports, set
the associated isolated VLAN. After all the ports have been configured,
click Apply.
CLI – This example shows the switch configured with primary VLAN 5
and secondary VLAN 6. Port 3 has been configured as a promiscuous port
and mapped to VLAN 5, while ports 4 and 5 have been configured as host
ports and associated with VLAN 6. This means that traffic for port 4 and 5
can only pass through port 3.
Console(config)#interface ethernet 1/3
Console(config-if)#switchport mode private-vlan promiscuous
Console(config-if)#switchport private-vlan mapping 5
Console(config-if)#exit
Console(config)#interface ethernet 1/4
Console(config-if)#switchport mode private-vlan host
Console(config-if)#switchport private-vlan host-association 6
Console(config-if)#exit
Console(config)#interface ethernet 1/5
Console(config-if)#switchport mode private-vlan host
Console(config-if)#switchport private-vlan host-association 6
Console(config-if)#
