Associating VLANs

Each community or isolated VLAN must be associated with a primary
VLAN.
Command Attributes
• Primary VLAN ID – ID of primary VLAN (1-4094, no leading
zeroes).
• Association – Community or isolated VLANs associated with the
selected primary VLAN.
• Non-Association – Community or isolated VLANs not associated
with the selected primary VLAN.

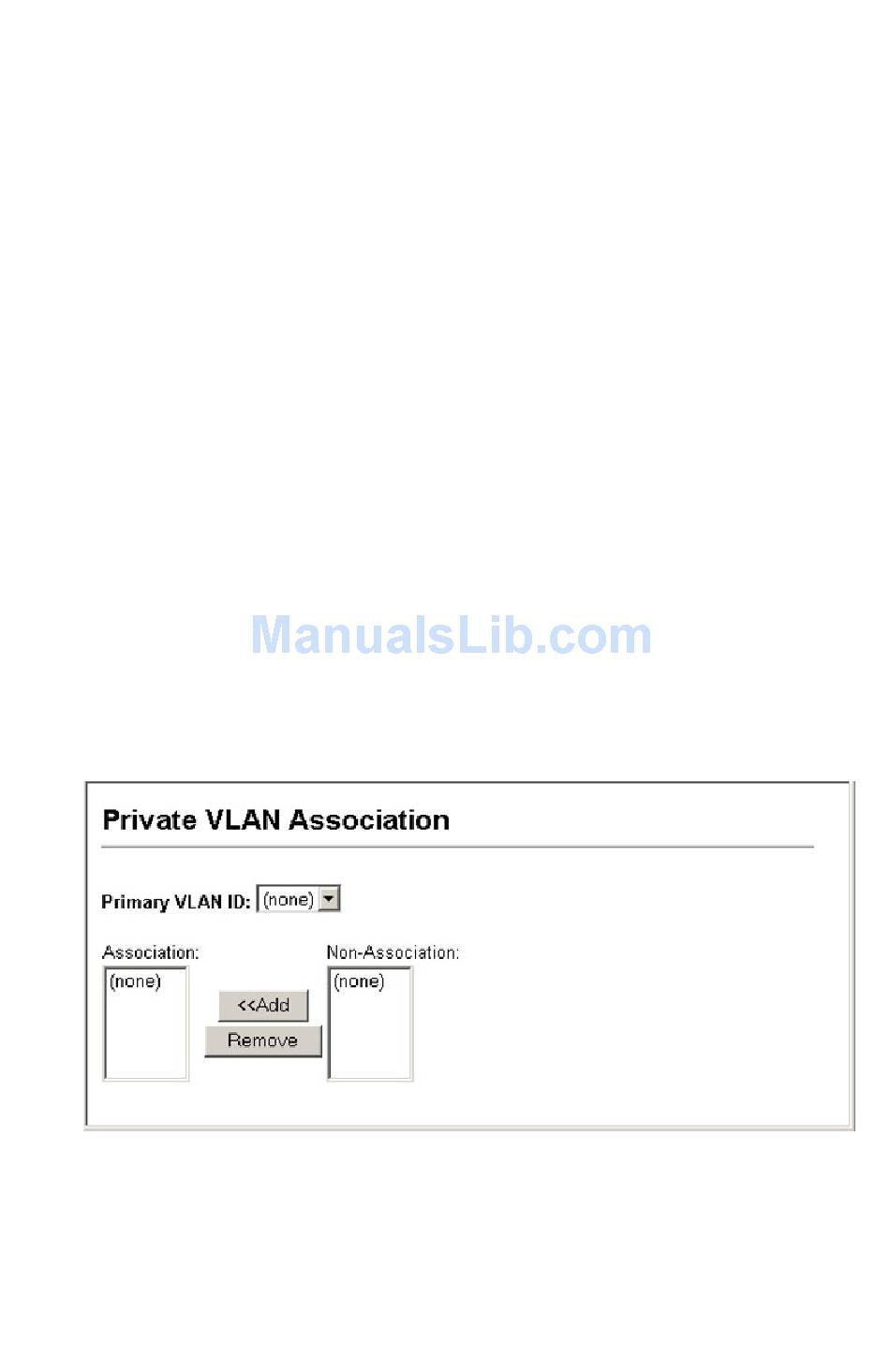

Web – Click VLAN, Private VLAN, Association. Select the required
primary VLAN from the scroll-down box, highlight one or more VLANs
in the Non-Association list box, and click Add to associate these entries
with the selected primary VLAN. (An isolated or community VLAN can
only be associated with one primary VLAN.)
