8.3.6
Menu 3: Enable pumps

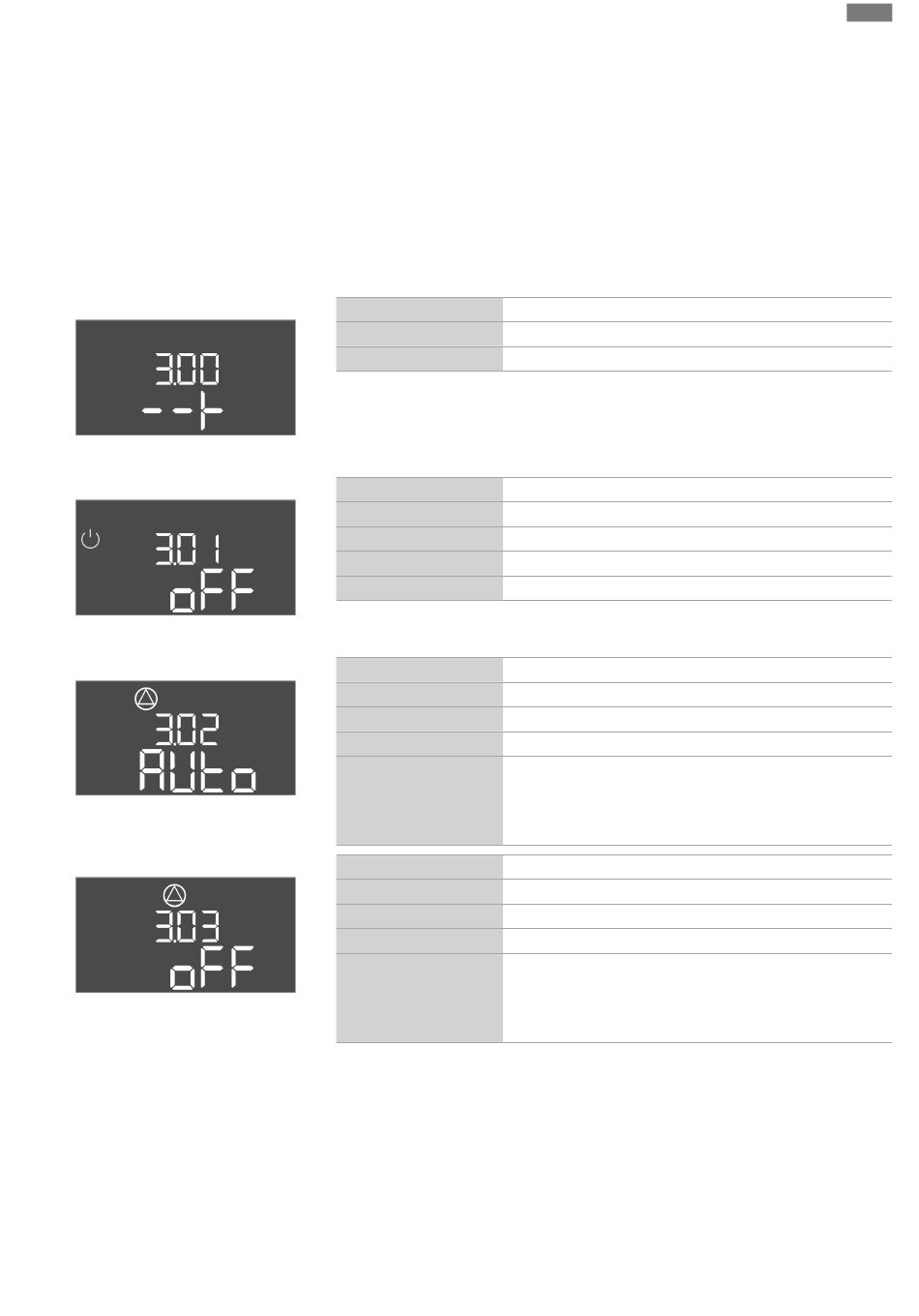

Fig. 97: Menu 3.00
Fig. 98: Menu 3.01
Fig. 99: Menu 3.02
Fig. 100: Menu 3.03
8.3.7
Adjust motor current monitoring
Installation and operating instructions • Wilo-Control EC-WP • Ed.01/2024-08
To operate the system, the operating mode must be set for each pump and the pumps en-
abled:
•
Every pump is set to the "auto" operating mode as the factory setting.
•
Automatic mode starts after the pumps have been enabled in Menu 3.01.
Required settings for the initial configuration
Carry out the following work during initial configuration:
•
Check direction of rotation of the pumps
•
Set precise motor current monitoring
Use the following settings to carry out this work:
•
Switch off the pumps: Set menu 3.02 to 3.03 to "off".
•
Enable pumps: Set menu 3.01 to "on".
Menu no.
3.00
Name
Operating settings
Description
Settings for the drives and mode of the pumps
Menu no.
3.01
Name
Enable pumps
Value range
on, off
Factory setting
off
Description
Deactivation or release of all pumps
Menu no.
3.02
Name
Operating mode, pump 1
Value range
off, Hand, Auto
Factory setting
Auto
Description
For the operating mode of pump 1, manual on (hand-oper-
ated), manual off (off) and automatic mode can be selected.
In manual operation, alarms such as dry run and thermal wind-
ing contact are still taken into account.
Menu no.
3.03
Name
Operating mode, pump 2
Value range
off, Hand, Auto
Factory setting
Auto
Description
In the operating mode of pump 2, you can choose between
manual on (Hand), manual off (off) and automatic mode (Auto).
In manual mode, alarms such as dry run and or thermal motor
monitoring are still taken into account.
Display the current value of the motor current monitoring
1.
Press the control knob for 3 s.
⇒
Menu 1.00 appears.
2.
Turn the control knob until Menu 4.00 appears.
3.
Press the control knob.
⇒
Menu 4.01 appears.
4.
Turn the control knob until menu 4.25 to 4.26 appears.
⇒
Menu 4.25: Shows the set motor current for pump 1.
en
51
