8.3.4 Menu 1: Values for switching on
and off

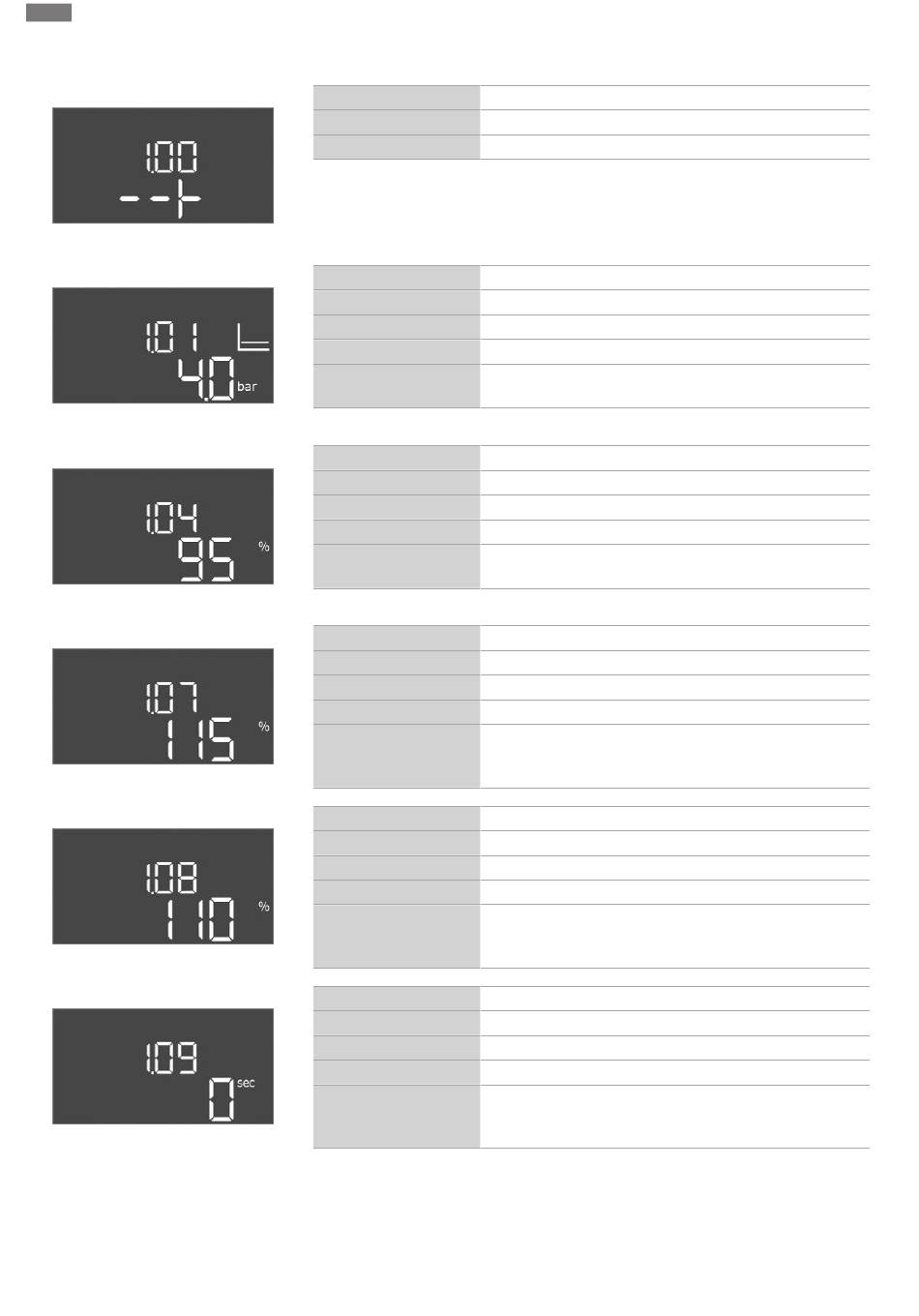

Fig. 83: Menu 1.00
Fig. 84: Menu 1.01
Fig. 85: Menu 1.04
Fig. 86: Menu 1.07
Fig. 87: Menu 1.08
Fig. 88: Menu 1.09
48
Menu no. 1.00
Name Setpoints
Description Setting the control setpoints
Menu no. 1.01
Name Pressure setpoint
Value range 0.1 – 25.0 bar
Factory setting 4 bar
Description The pressure setpoint defines the pressure at the booster out-
put.
Menu no. 1.04
Name Pump start activation threshold
Value range 75 – 99%
Factory setting 95 %
Description Activation threshold of the pump in % of the pressure setpoint
for starting the base-load pump or for pumps in general
Menu no. 1.07
Name Deactivation threshold for base-load pump
Value range 101 – 125%
Factory setting 115 %
Description Deactivation threshold of the base-load pump in % of the
pressure setpoint for stopping the base-load pump when only
this is running.
Menu no. 1.08
Name Deactivation threshold for peak-load pumps
Value range 101 – 125%
Factory setting 110 %
Description Deactivation threshold of the peak-load pumps in % of the
pressure setpoint for stopping a peak-load pump when two or
more pumps are running.
Menu no. 1.09
Name Base-load pump deactivation delay
Value range 0 ... 60 s
Factory setting 0 s
Description Delays the stop of the base-load pump when the stop
threshold has been reached and the actual value remains per-
manently above the deactivation threshold.
