8.3.1 Enable parameter input
1
2
3
5
7

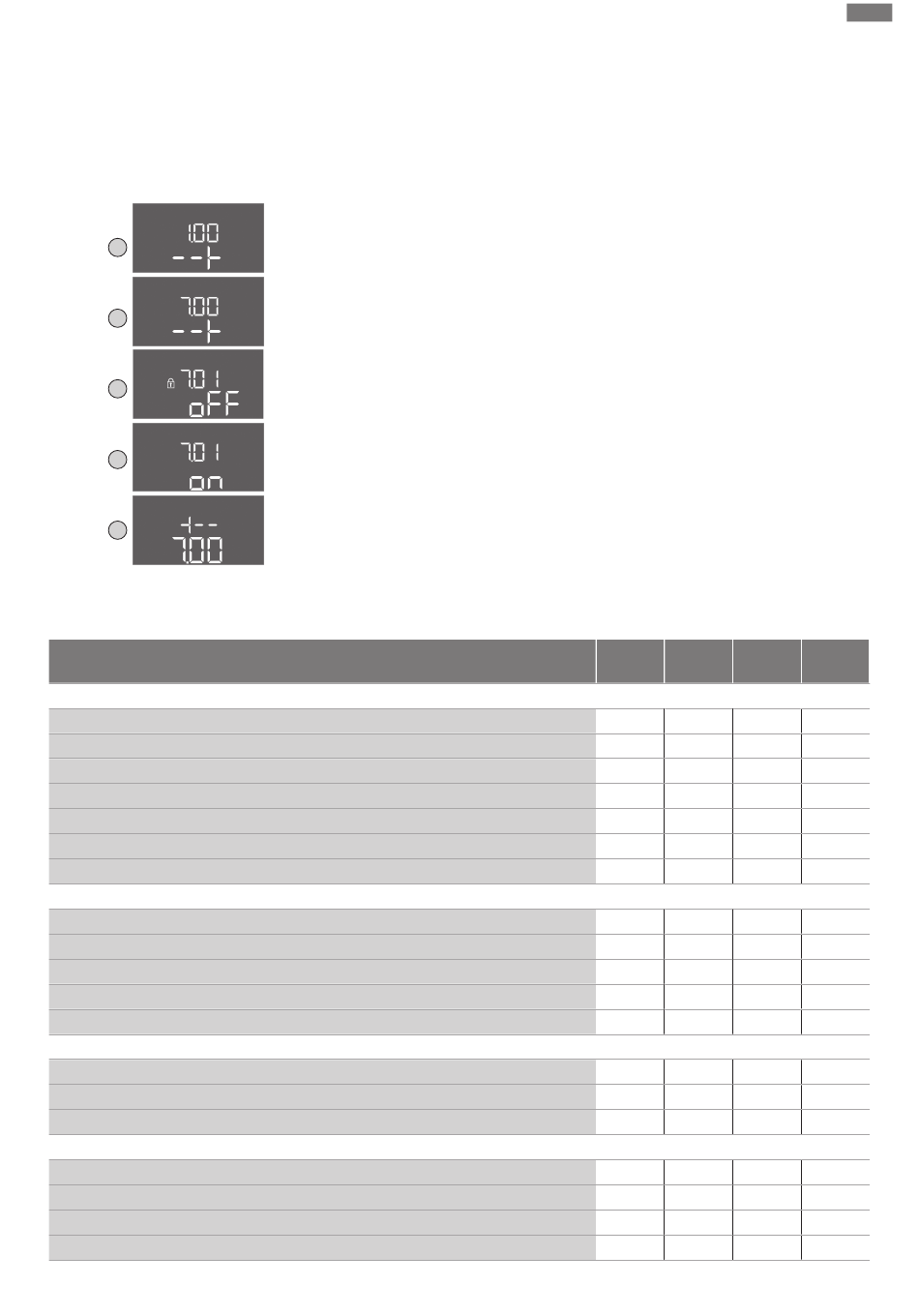

Fig. 56: Enable parameter input
8.3.2 Overview of available parameters
Parameter (menu item)
1.00 Values for switching on and off
1.01 Pressure setpoint
1.04 Activation threshold of the pump in % of pressure setpoint
1.07 Deactivation threshold of the base-load pump in % of pressure setpoint
1.08 Peak-load pump deactivation threshold in % of pressure setpoint
1.09 Deactivation delay base-load pump
1.10 Activation delay peak-load pump
1.11 Deactivation delay peak-load pump
2.00 Fieldbus connection for ModBus RTU
2.01 ModBus RTU interface On/Off
2.02 Baud rate
2.03 User address
2.04 Parity
2.05 Stop bits
3.00 Enable pumps
3.01 Enable pumps
3.02 Pump 1 to Pump 2 operating mode
3.10 Running time of pumps in manual operation
4.00 Information
4.02 Current pressure value in bar
4.05 Status of float switches
4.12 Running time of switchgear
4.13 Running time: Pump 1
Installation and operating instructions • Wilo-Control EC-WP • Ed.01/2024-08
• The menu is automatically adapted based on the settings. Example: The Menus 5.41 ...
5.43 are only visible when the "pump kick" function (Menu 5.40) is activated.
• The menu structure is valid for all EC switchgears (e.g. HVAC, Booster, Lift, Fire, etc.).
This may lead to gaps in the menu structure.
As standard, the values are only displayed. To change the values, the parameter input in
Menu 7.01 must be enabled:
1. Press the operating button for 3 s.
⇒ Menu item 1.00 appears
2. Turn the operating button until menu 7 appears.
3. Press the operating button.
⇒ Menu 7.01 appears.
4. Press the operating button.
5. Change the value to "on": Turn the operating button.
6. Save value: Press the operating button.
⇒ The menu is enabled and can be changed.
7. Turn the operating button until the end of menu 7 appears.
8. Press the operating button.
⇒ Back to the main menu level.
▶ Start initial configuration.
The available parameters are shown in the following table.
