8.3.3 Menu 5: Basic settings

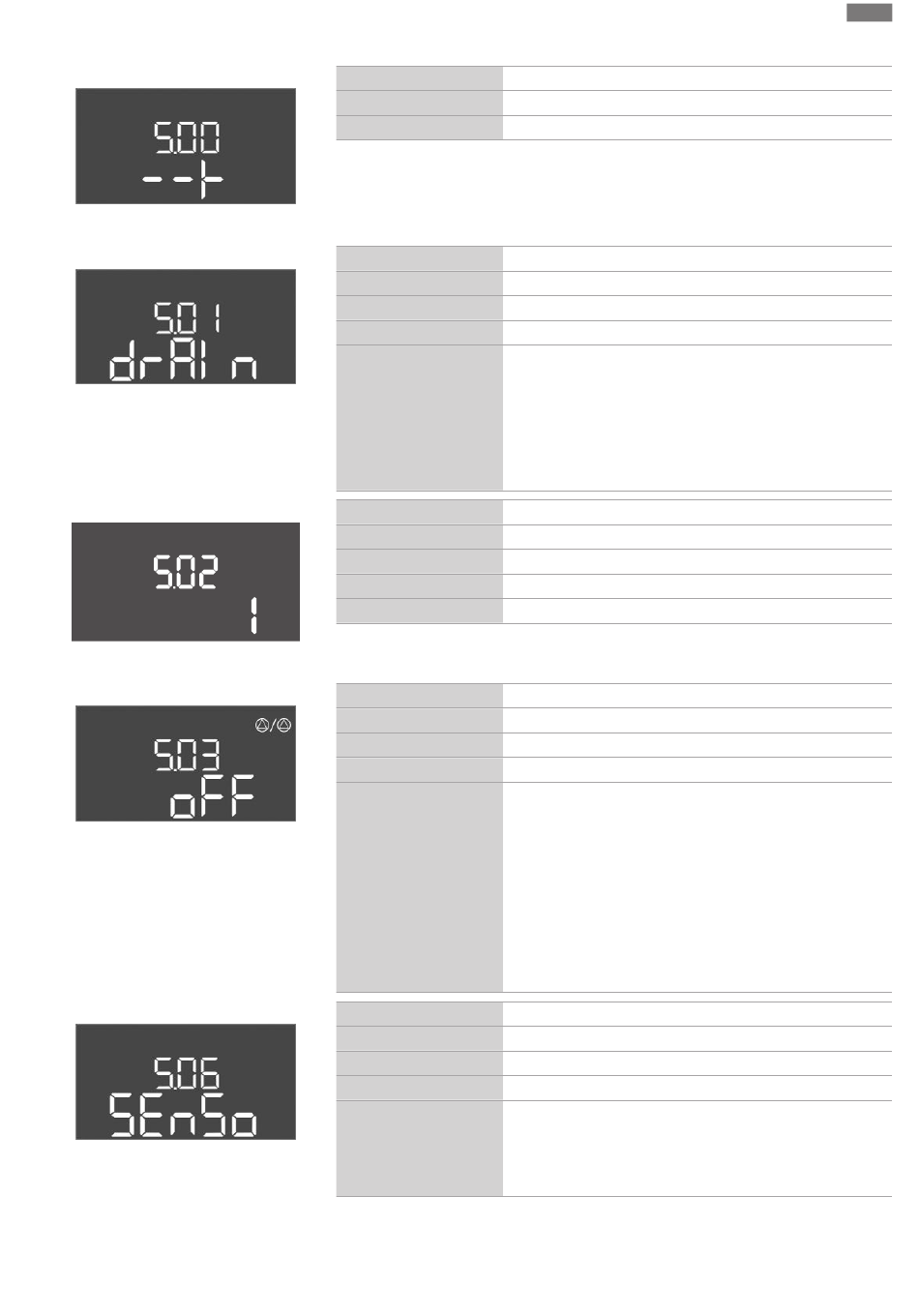

Fig. 57: Menu 5.00
Fig. 58: Menu 5.01
Fig. 59: Menu 5.02
Fig. 60: Menu 5.03
Fig. 61: Menu 5.06
Installation and operating instructions • Wilo-Control EC-WP • Ed.01/2024-08
Menu no. 5.00
Name Installation
Description Settings made during the installation of the switchgear.
Menu no. 5.01
Name Control mode
Value range fill, drain, p-c
Factory setting drain
Description The active control mode of the switchgear. It is selected de-
pending on the intended application.
•
•
•
Menu no. 5.02
Name Number of pumps
Value range 1 ... 2
Factory setting 1
Description Number of pumps in the system
Menu no. 5.03
Name Standby pump
Value range on, off
Factory setting off
Description Determines whether or not a pump should be kept in stock as a
replacement for a failed pump.
One pump can be used as a standby pump. This pump is not
activated during normal operation. The standby pump is only
activated in the event of pump failure due to a fault. The
standby pump is subject to standstill monitoring. The standby
pump is therefore activated during pump cycling and pump
kick.
•
•
Menu no. 5.06
Name Signal acquisition pressure
Value range digi, senso
Factory setting senso
Description Determines whether the pressure is measured by a pressure
switch or an analogue pressure sensor.
digi = pressure switch
senso = pressure sensor
"drain" control mode: The pumps are activated when the
level rises and switched off when the level falls.
"fill" control mode: The pumps are activated when the level
falls and switched off when the level rises.
"p-c" control mode: Constant pressure control
on = Standby pump activated
off = Standby pump deactivated
