CyberData 011324 Operation Manual page 8

High Power Mode The following figure illustrates how to connect the Paging Amplifier and Loudspeaker Amplifier and
(One Speaker)
use the amplified outputs in high power mode to one speaker or horn.
Note: You can use an
802.3at compliance
switch or an 802.3at
power injector and hub.
802.3at Compliant
PoE Ethernet Switch
(sold separately)
or
802.3at PoE Injector
(high power mode)
(sold separately)
Cat 5 Ethernet Cable
*Note: 16 gauge (AWG) wiring is recommended. 
If the speaker will be routed outside, then CyberData
suggests using CL2 or CL3 certified wiring.
Note: The IP66 Analog Horn (011471) comes with a
3.28 foot cable, which can be connected directly to the
amplifier. If the wiring is greater than 3.28 feet, then it
is suggested to use solder and heat shrink tubing to
fasten the additional wires. Twist wire nuts can be
used as an alternative if it is protected sufficiently.
Operations Guide
Installing the Paging Amplifier and Loudspeaker Amplifier

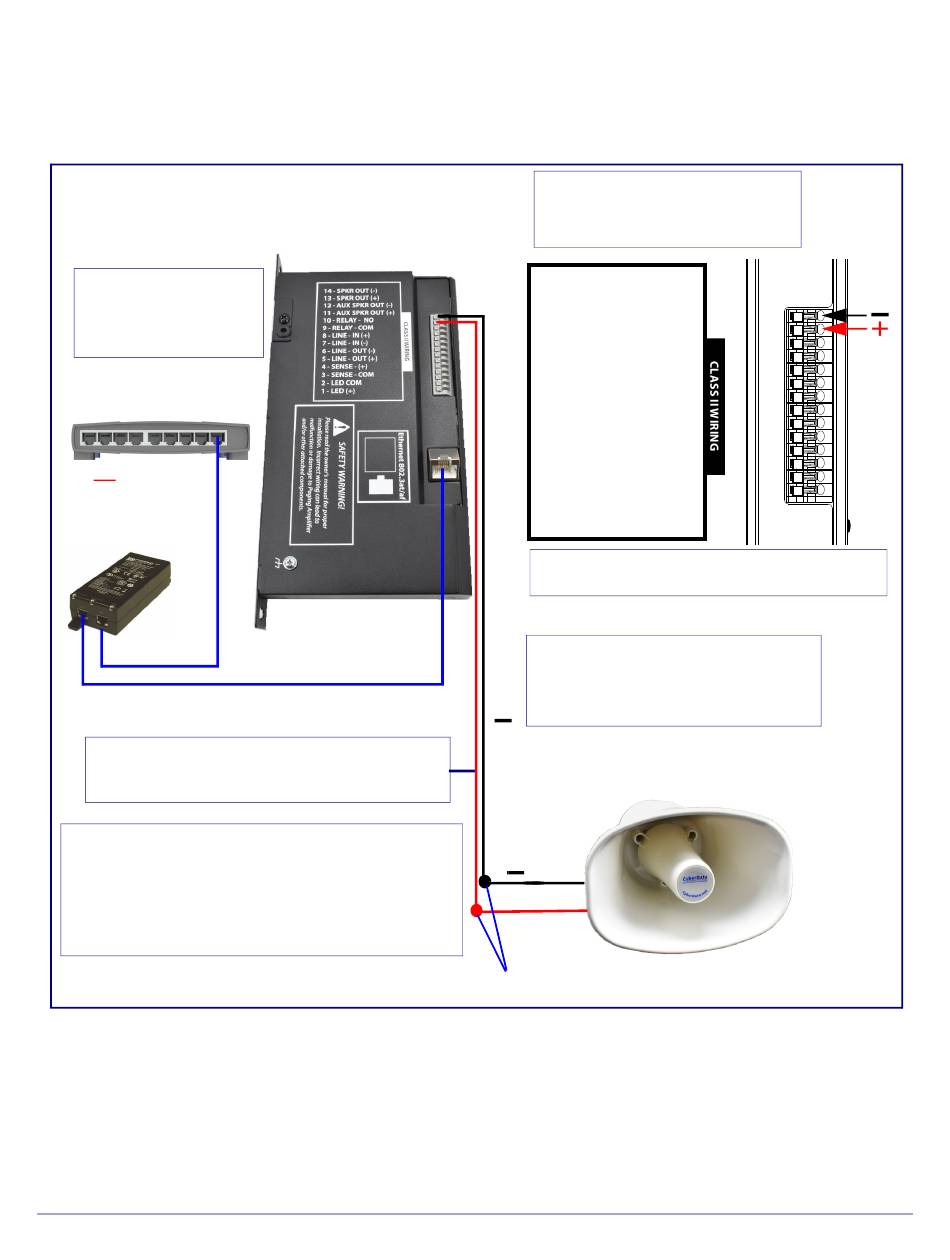

Figure 1-2. High Power Mode with One Speaker
Note: Horn is connected to terminal
block pins 14 (-) and 13 (+) of the
paging amplifier for mono mode.
14 - SPKR OUT (-)
13 - SPKR OUT (+)
12 - AUX SPKR OUT (-)
11 - AUX SPKR OUT (+)
10 - RELAY - NO
9 - RELAY - COM
8 - LINE - IN (+)
7 - LINE - IN (-)
6 - LINE - OUT (-)
5 - LINE - OUT (+)
4 - SENSE - (+)
3 - SENSE - COM
2 - LED COM
1 - LED (+)
*Note: The positive (+) wire coming from the speaker
may be red or white. The negative (-) wire is black.
*Note: If you are using 16 gauge (AWG)
wiring, the maximum recommended
length of the wiring to the horn should be
+
50 feet or less from the amplifier.
*
+
Twist wire nuts
932064A
Using the Amplified Outputs
Standard 1 Speaker Configuration
(802.3at mode)
8 Ohms
011471 IP66 Analog Horn
(sold separately)
