1.1.5 Ethernet Connection
See
Connection
Ethernet
1.1.6 Loudspeaker Type
Using the amplified output, the CyberData Paging Amplifier and Loudspeaker Amplifier supports the
011471 IP66 Analog Horn or equivalent unamplified loudspeaker.
1.1.7 Cabling/Wiring
Using the amplified output, you may connect a 011471 Horn or equivalent unamplified speaker to a
Paging Amplifier and Loudspeaker Amplifier with good quality speaker wire that is 16 gauge and
limited to 25 feet in length with two loudspeakers or 50 feet in length with one loudspeaker.
Operations Guide
Table 1-2 for details about the Paging Amplifier and Loudspeaker Amplifier connection.
Table 1-2. Paging Amplifier and Loudspeaker Amplifier Connection
Connection Details
Use a RJ 45 cable.
Installing the Paging Amplifier and Loudspeaker Amplifier

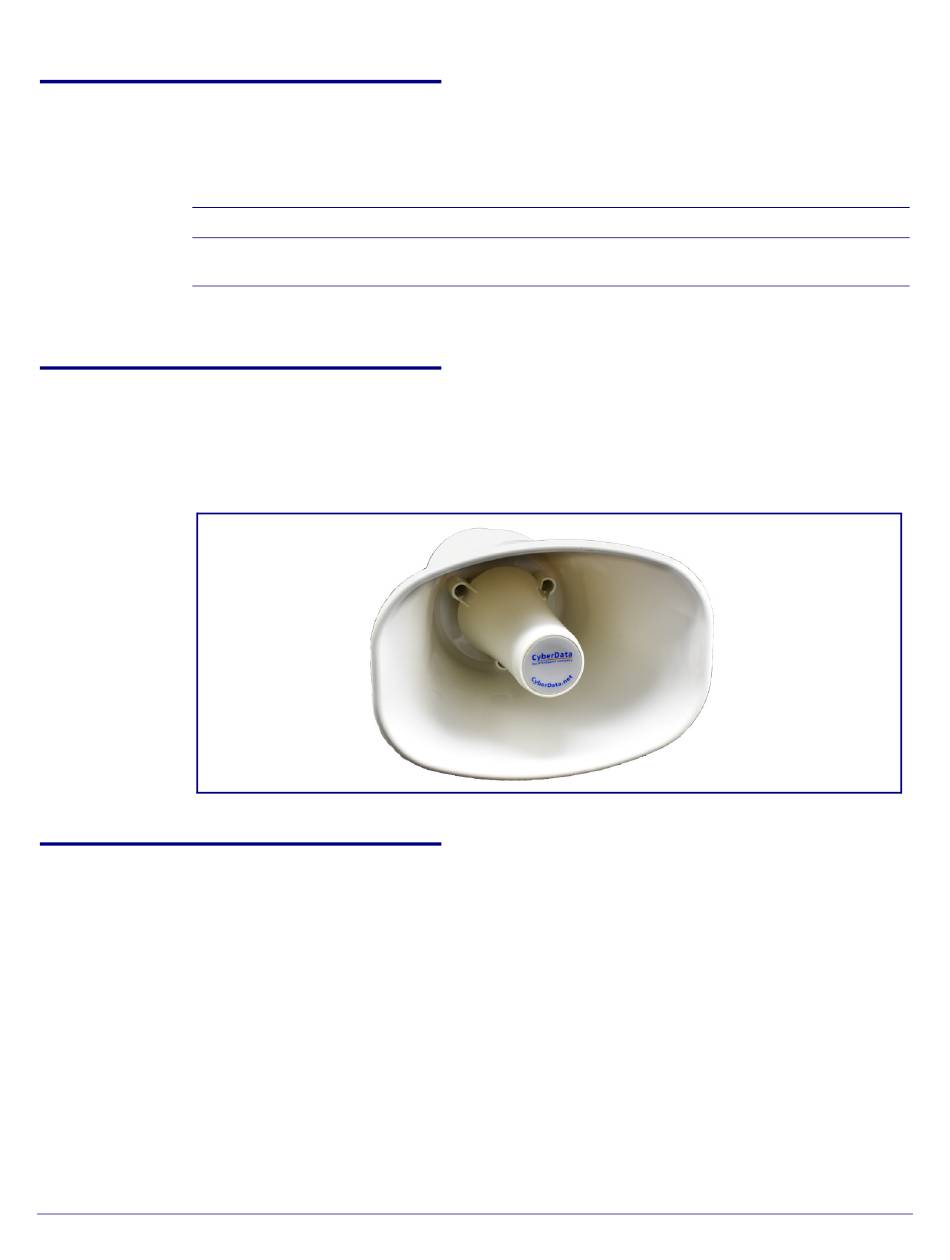

Figure 1-12. 011471 IP66 Analog Horn
932064A
Ethernet Connection
Location
Paging Amplifier and
Loudspeaker Amplifier
