External device
such as an
electric door strike
or an LED strobe
light
AC or DC
Power
Source
Operations Guide
Paging Amplifier and Loudspeaker Amplifier System Installation and Connection Options

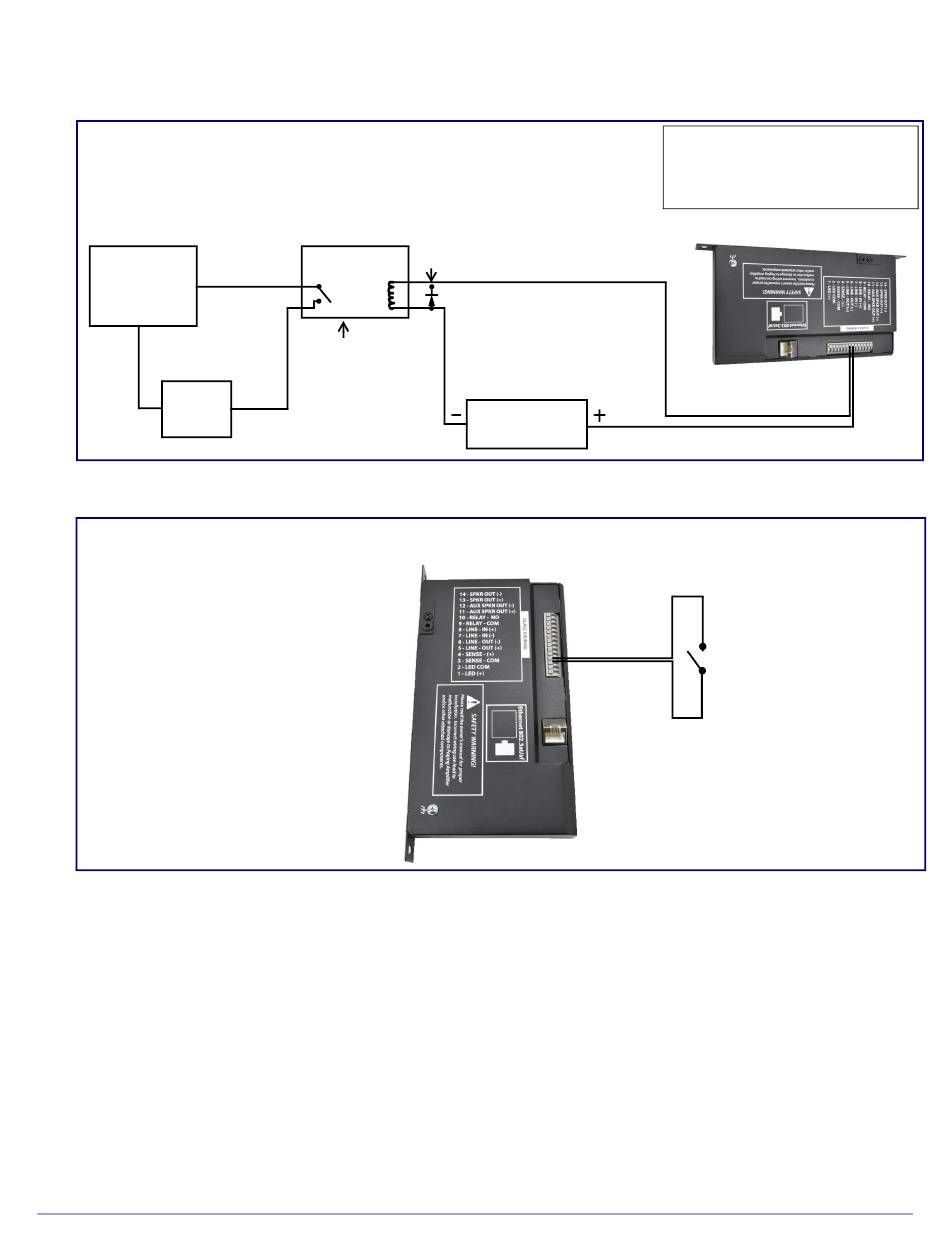

Figure 1-6. Relay or LED Strobe Connection
High PIV Ultrafast
Solid State or
Switching Diode
Mechanical
Relay
OUT
IN
Output Contacts
AC or DC-rated
depending upon
controlled device
requirements
Figure 1-7. Sensor Connection
Paging Amplifier
932064A
Installing the Paging Amplifier and Loudspeaker Amplifier
DC Power Supply
(Max. 30 VDC @ 1A)
When the device is called from a
remote phone, the relay on the
device can be programmed to blink
and drive an LED Strobe Light.
Paging Amplifier
