1.1.2 Paging Amplifier and Loudspeaker Amplifier System Installation and
Connection Options
The following figures show the connection options for the Paging Amplifier and Loudspeaker
Amplifier.
14 - SPKR OUT (-)
13 - SPKR OUT (+)
12 - AUX SPKR OUT (-)
11 - AUX SPKR OUT (+)
10 - RELAY - NO
9 - RELAY - COM
8 - LINE - IN (+)
7 - LINE - IN (-)
6 - LINE - OUT (-)
5 - LINE - OUT (+)
4 - SENSE - (+)
3 - SENSE - COM
2 - LED COM
1 - LED (+)
When line-in is enabled on the device, the
audio received from the line-in connection
will be played to the speaker(s) and line-
out connection as the lowest priority audio.
The IP66 Analog Horn
(part #011471) must be
purchased separately.
Operations Guide
Paging Amplifier and Loudspeaker Amplifier System Installation and Connection Options

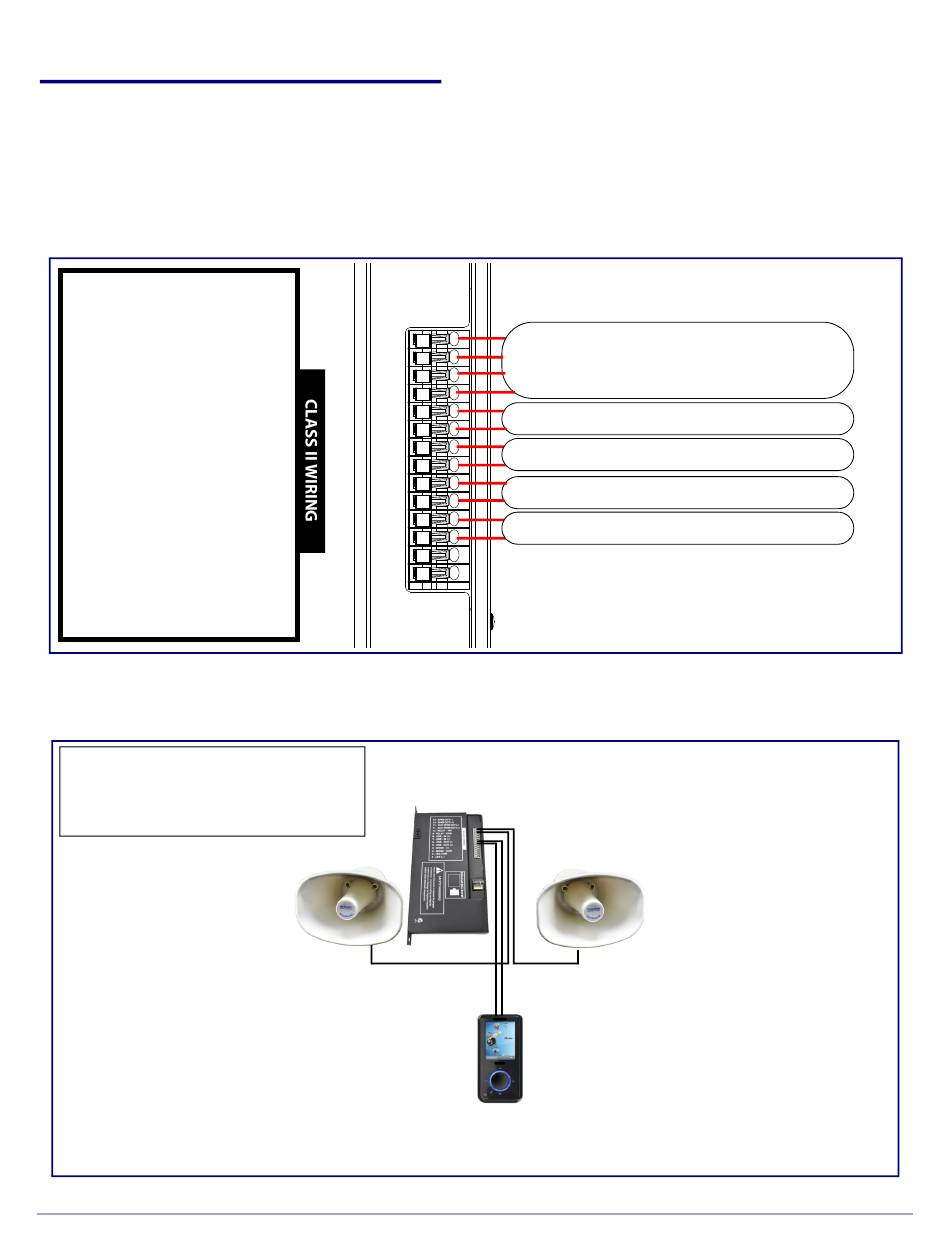

Figure 1-4. Paging Amplifier and Loudspeaker Amplifier Connections
Figure 1-5. Line-In Connection
Paging Amplifier
932064A
Installing the Paging Amplifier and Loudspeaker Amplifier
Speaker Connections
(Figure 1-1) (Figure 1-2)(Figure
Relay Connection (Figure
Line-In Connection (Figure
Line-Out Connection (10K Ohm)
Sensor Connection (Figure
Music Source
1-3)
1-6)
1-5)
1-7)
