3 Mount the spillover connector.
4 Attach a drain hose to the spillover connector.
5 Connect the drain hose to an appropriate drain. Ensure the water can flow
through the drain hose. Ensure that the water level cannot mount above the
overspill.

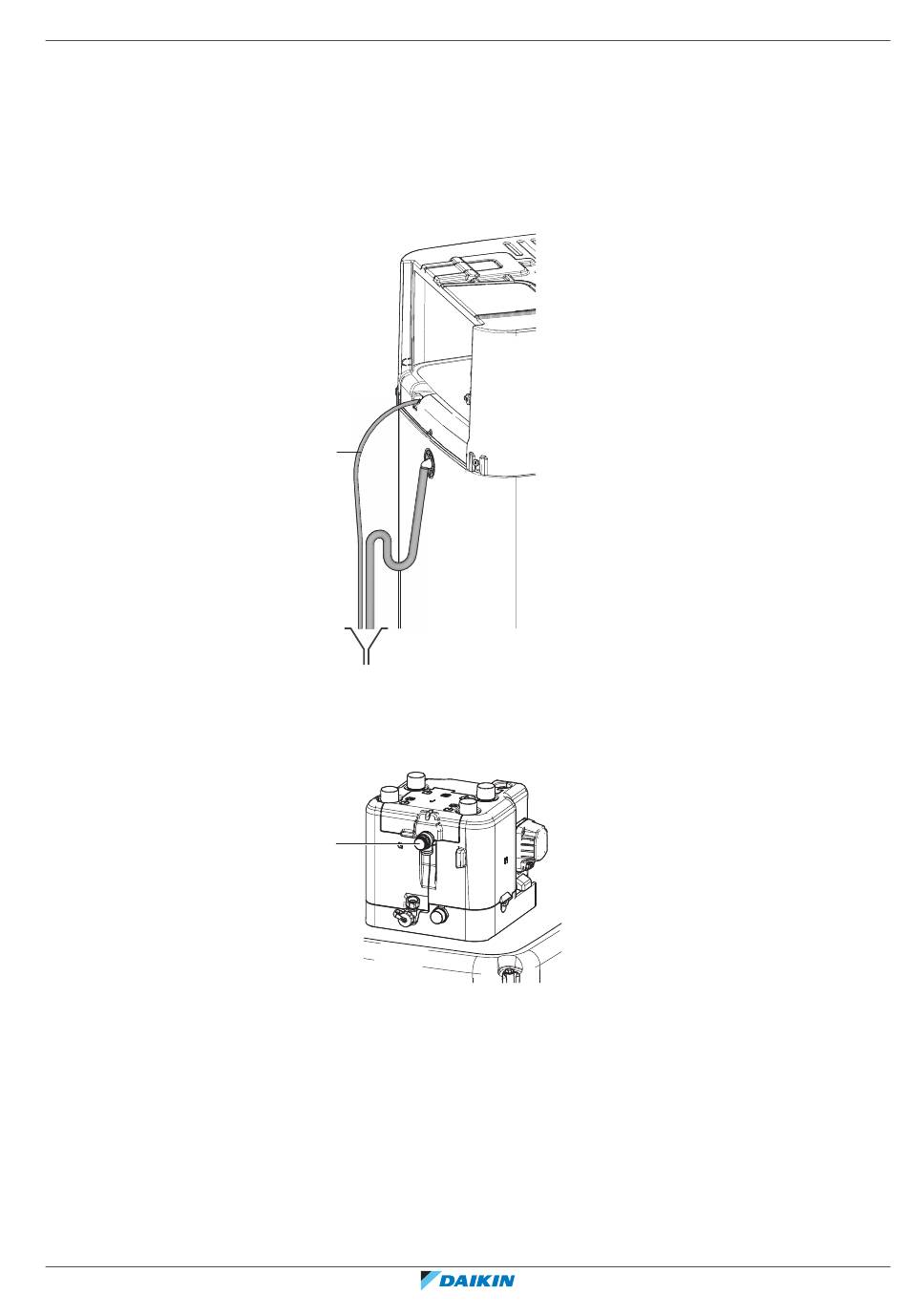

6 Connect the drain pan hose to the drain pan connection and connect to an
appropriate drain.
a
a Drain pan hose
7 Connect the pressure relief valve to an appropriate drain in accordance with
the applicable legislation. Ensure that any steam or water that may escape is
drained in a frost-protected, safe and observable manner.
a
a Pressure relief valve
