10 | Configuration
Installer reference guide
202
#
[8.A]
Piping diagram

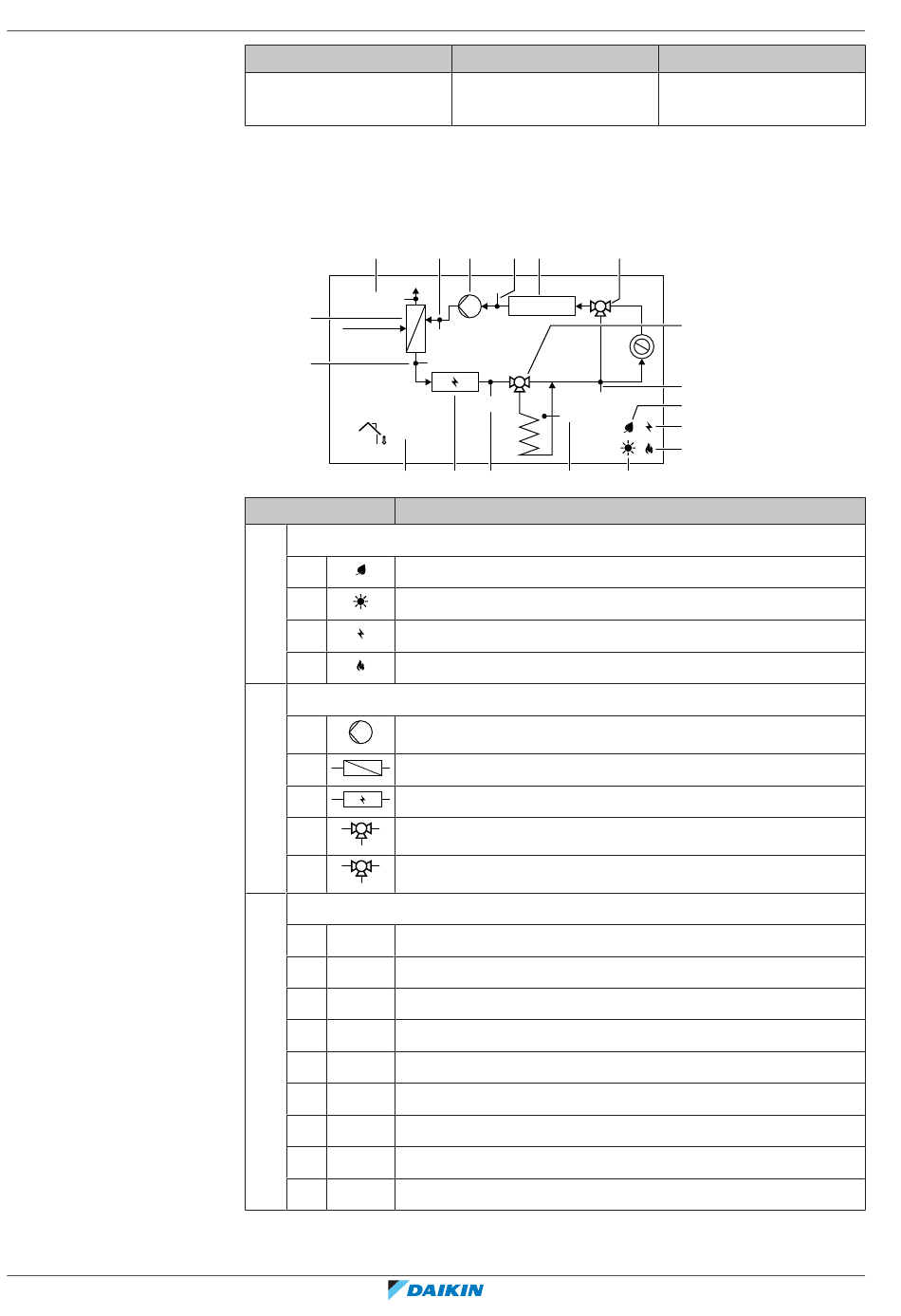

The piping diagram screen visualizes various real-time sensor and actuator
information within the piping layout. This allows a check of the system at one
glance.
c3
R3T = 3
b2
c1
R6T = 3
C6
Item
a Energy sources
a1 Heat pump compressor is operating.
a2 Solar energy is available.
a3 Backup heater is activated.
a4 Boiler is activated
b Actuator status
b1 Pump is running.
b2 Heat pump is operating.
b3 Backup heater is activated.
b4 Tank valve is turning. Valve position [%].
b5 Bypass valve is turning. Valve position [%].
c Sensor values
c1 R1T Leaving water temperature [°C]
c2 R2T Leaving water temperature after BUH [°C]
c3 R3T Liquid line refrigerant temperature [°C]
c4 R4T Return water temperature [°C]
c5 R5T Storage tank temperature [°C]
c6 R6T Ambient temperature [°C]
c7 R7T Leaving water temperature after storage tank [°C]
P Water pressure [bar]
V Water volume flow rate [l/min]
Code
N/A
c4 b1 c8 c9
P = 3
3
V = 3
R4T = 3
R1T = 3
3
R7T = 3
R2T = 3
R5T = 3
b 3 c2 C5
Description
Description
Reset the MMI EEPROM
to factory default
b5
b4
c7
a1
a3
a4
a 2
