4 | About the box
4.2.3 To handle the indoor unit
Installer reference guide
26
a Handles (only required for transport)
b Thread cover
c Spillover connector
d Assembly wrench
e Shut-off valve
f Flat gasket
g O‑ring
h Securing clip
i Venting hose
j Drain pan hose
k Drain pan hose clamp
l Cable fixation for strain relief
m Cable tie
n Switch box metal insert
o Screw for switch box metal insert
p Top cover screws
q General safety precautions
r WLAN cartridge
s Indoor unit installation manual
t Operation manual
u Addendum software changelog
v Addendum commercial warranty
Use the handles at the back and at the front to carry the unit.
NOTICE
The indoor unit is top-heavy as long as the storage tank is empty. Secure the unit
accordingly and only transport by using the handles.
If optional Backup Heater (EKECBU*) is installed, see the installation manual of the
Backup Heater.

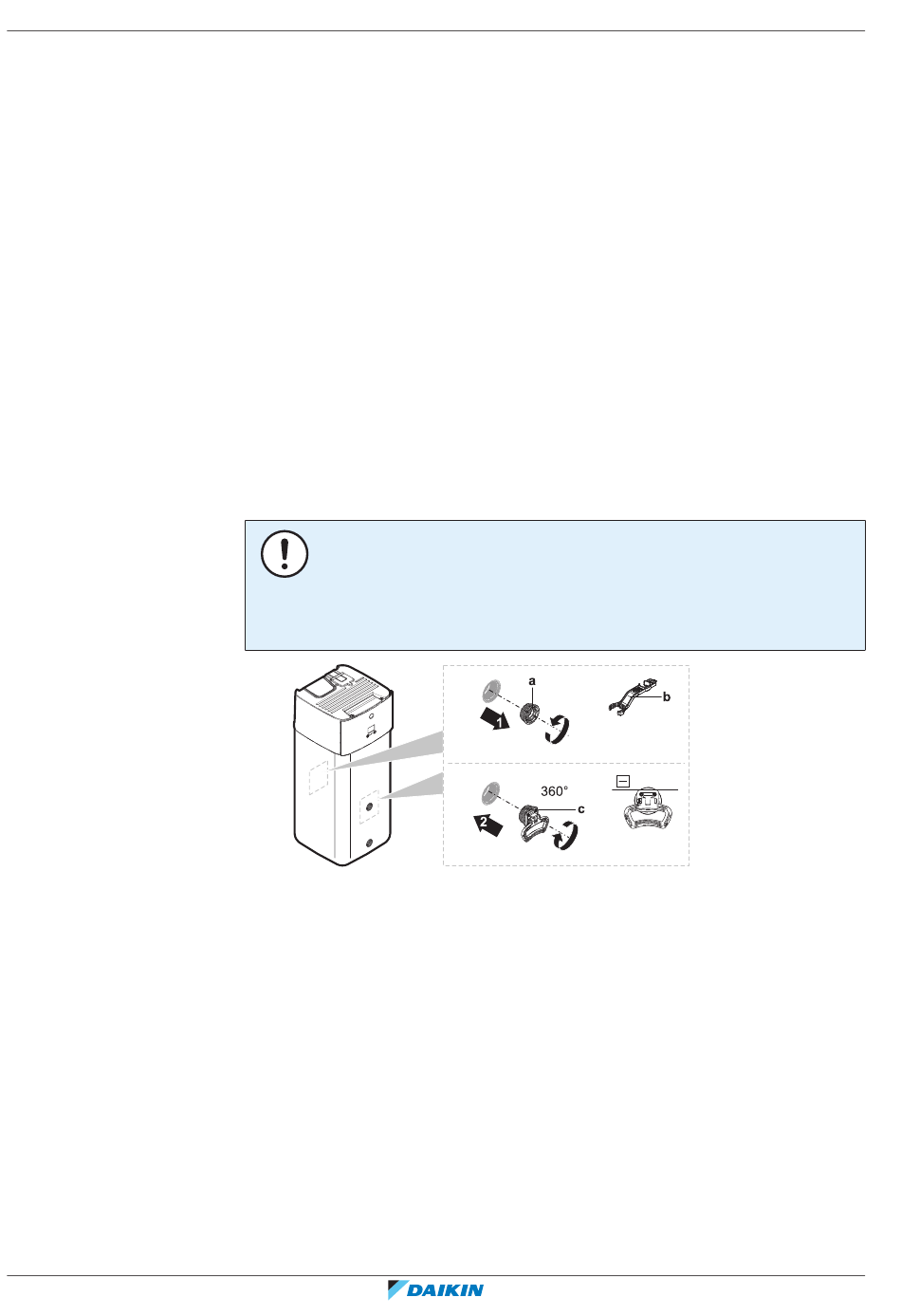

a Screw plug
b Assembly wrench
c Handle
1 Open the screw plugs on the front and back of the tank.
2 Attach the handles horizontally and turn by 360°.
3 Use the handles to carry the unit.
4 After carrying the unit remove the handles, add the screw plugs again and
insert the thread covers on the plugs.
