7.2 Opening and closing the units
7.2.1 About opening the units

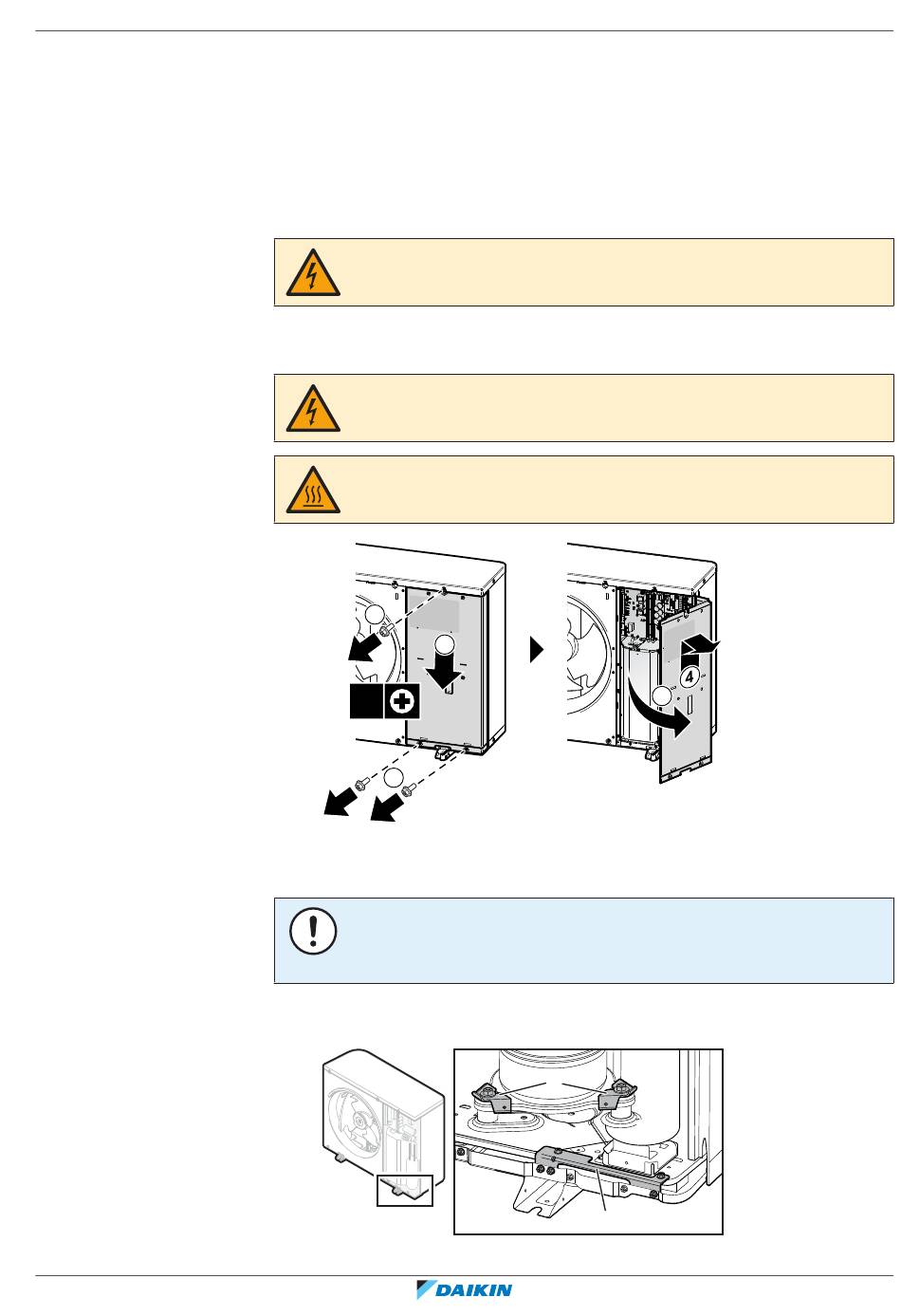

7.2.2 To open the outdoor unit
7.2.3 To remove the transportation stay
EPRA14~18D + ETSH/X(B)16P30+50E
Daikin Altherma 3 H HT ECH₂O
4P679467-1D – 2023.11
At certain times, you have to open the unit. Example:
▪ When connecting the electrical wiring
▪ When maintaining or servicing the unit
DANGER: RISK OF ELECTROCUTION
Do NOT leave the unit unattended when the service cover is removed.
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING/SCALDING
1 1
2 2
3×
1 1
NOTICE
If the unit is operated with the transportation stay attached, abnormal vibration or
noise may be generated.
The transportation stays protect the unit during transport. During installation they
must be removed.
a Transportation stays (2×) and washers (2×)
7
3 3
a
b
Unit installation
|
Installer reference guide
