EPRA14~18D + ETSH/X(B)16P30+50E
Daikin Altherma 3 H HT ECH₂O
4P679467-1D – 2023.11
4×

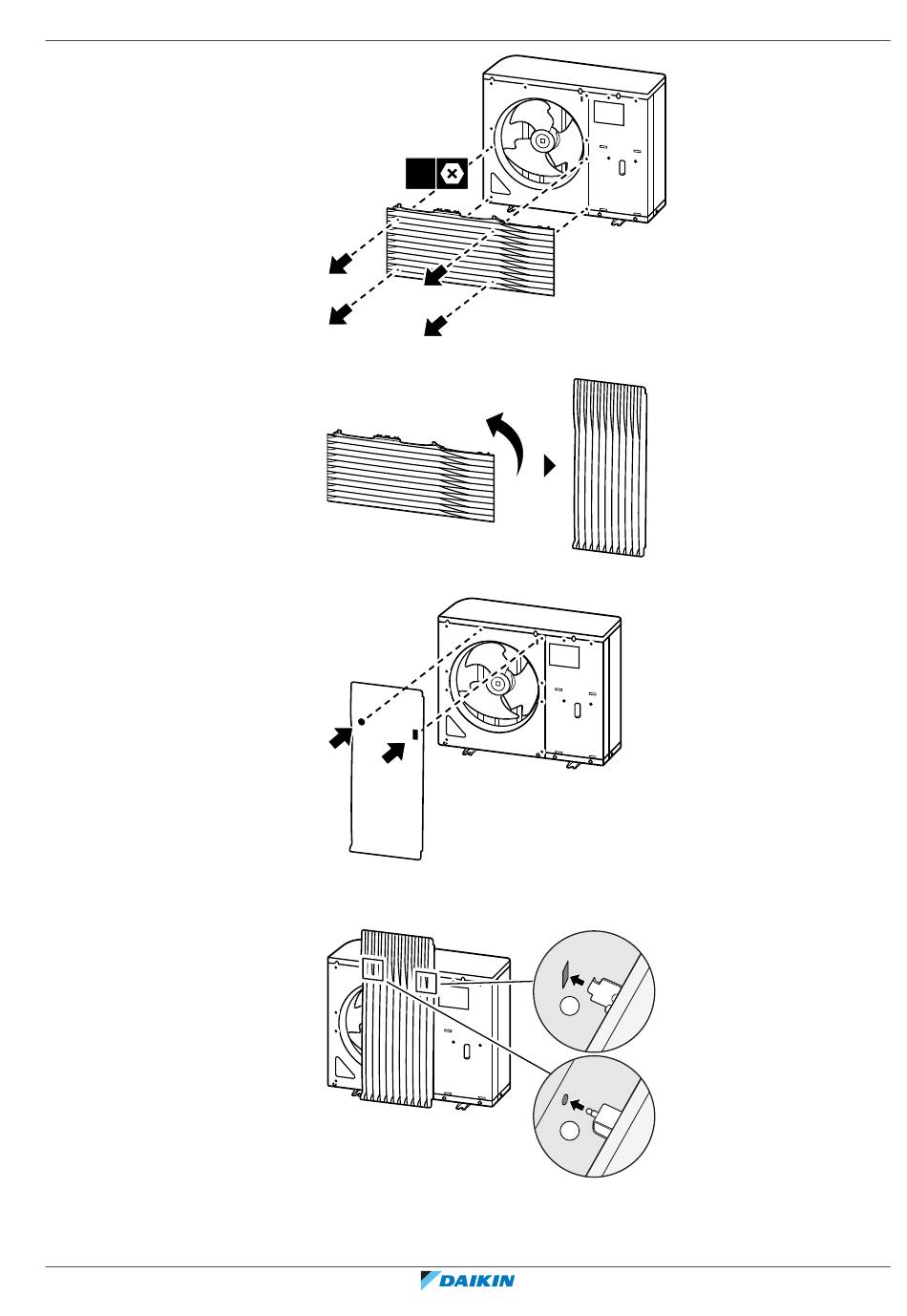

3 Rotate the lower part of the discharge grille.
4 Align the ball stud and hook on the grille with their counterparts on the unit.
5 Insert the hook.
6 Insert the ball stud.
7
|
5
6
Unit installation
Installer reference guide
83
