Daikin ETSX16E Installer's Reference Manual page 141

EPRA14~18D + ETSH/X(B)16P30+50E
Daikin Altherma 3 H HT ECH₂O
4P679467-1D – 2023.11
1 User interface panel
2 Switch box
3 Switch box cover
4 Top cover

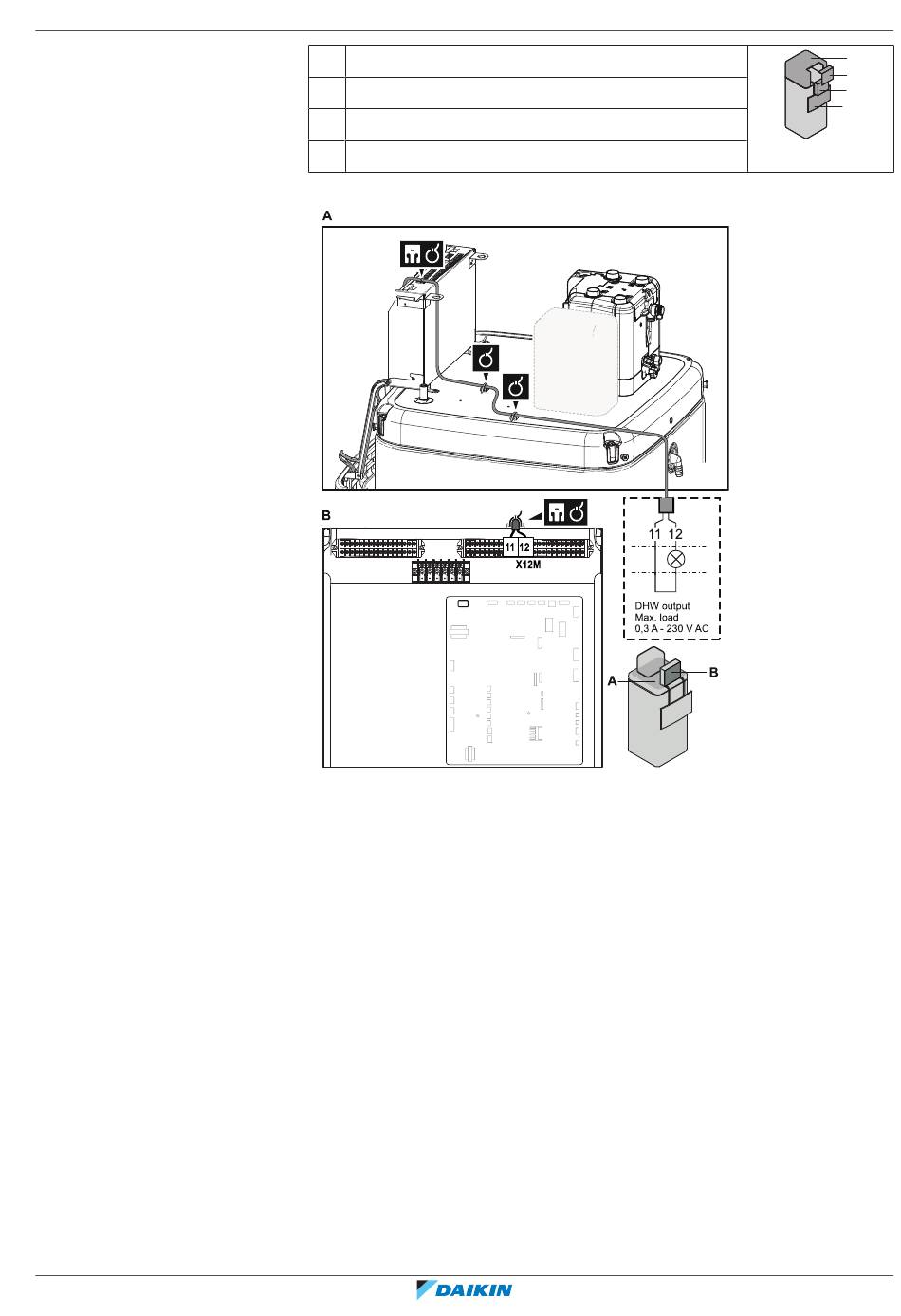

2 Connect the DHW signal cable as shown in the illustration below.
3 Fix the cable with cable ties to the cable tie mountings. General information,
see "9.3.1 To connect the electrical wiring to the indoor
9 Electrical installation
|
4
unit" [ 117].
Installer reference guide
4
3
2
1
141
