Unit installation
7.3.4 To install the outdoor unit
Installer reference guide
78
(mm)

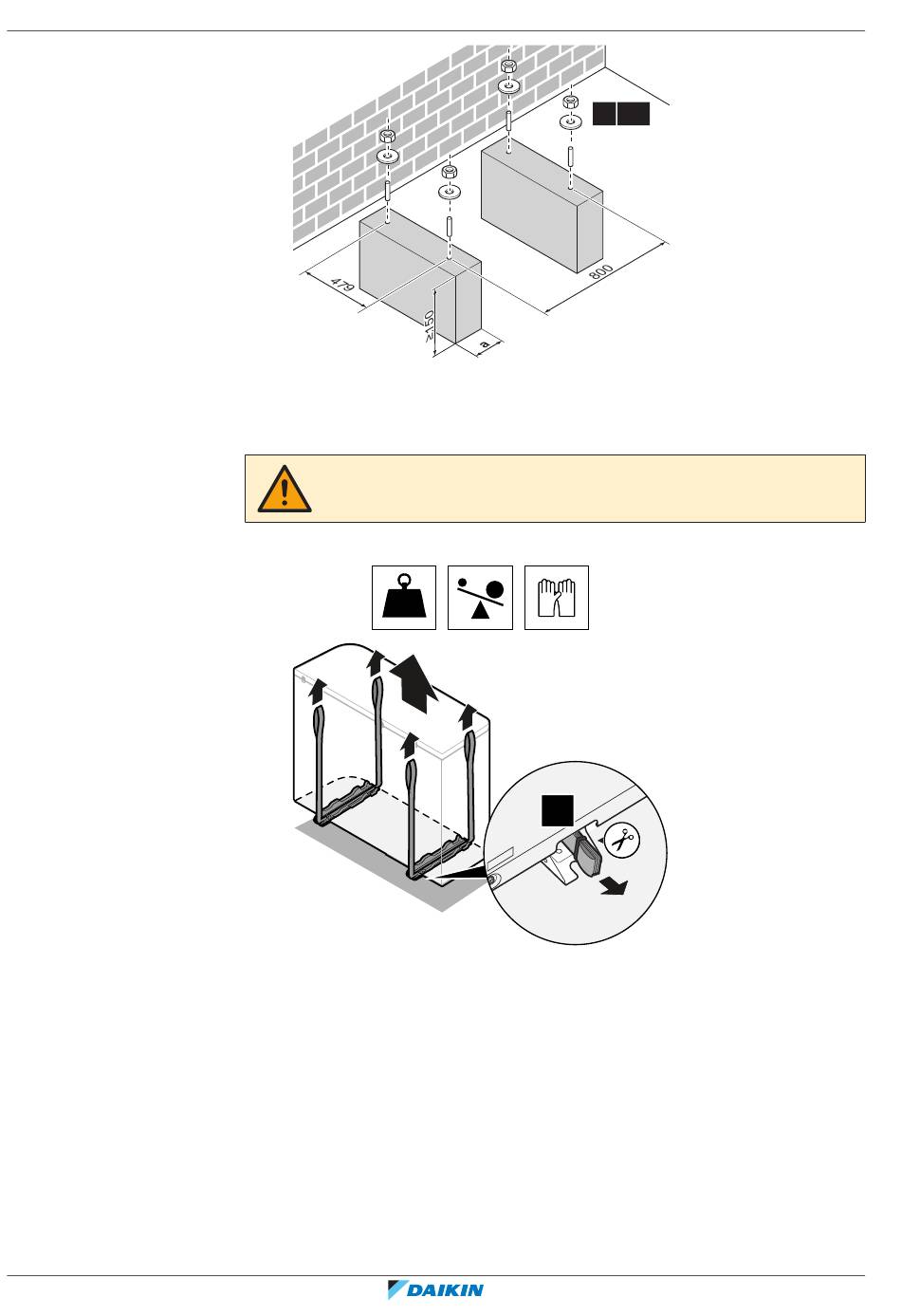

a Make sure not to cover the drain hole in the bottom plate of the unit.
CAUTION
To avoid injury, do NOT touch the air inlet or aluminium fins of the unit.
1 Carry the unit by its slings, and put it onto the installation structure.
±150
kg
2 Fix the unit to the installation structure.
4× M12
4×
EPRA14~18D + ETSH/X(B)16P30+50E
Daikin Altherma 3 H HT ECH₂O
4P679467-1D – 2023.11
