3. Remove the milk tube (5) from the elbow (1) (see
figure 19 on page 5-14).
4. Install the plug (2) to the elbow (1).
5. On the E-Link select In the field Valve sampling,
button Open.
6. Remove the milk tube (5) from the sampling
cylinder (6) (see figure 19 on page 5-14).
7. If necessary, install the sampling cylinder (1) to
the bracket (see figure 20 on page 5-14).
8. On the E-Link select:
1. In the field Valve sampling select button
Open.
2. Button Close.
The tab Sampling will disappear.
9. Put the robot unit in operation with the E-Link.
5-14
2
6
5

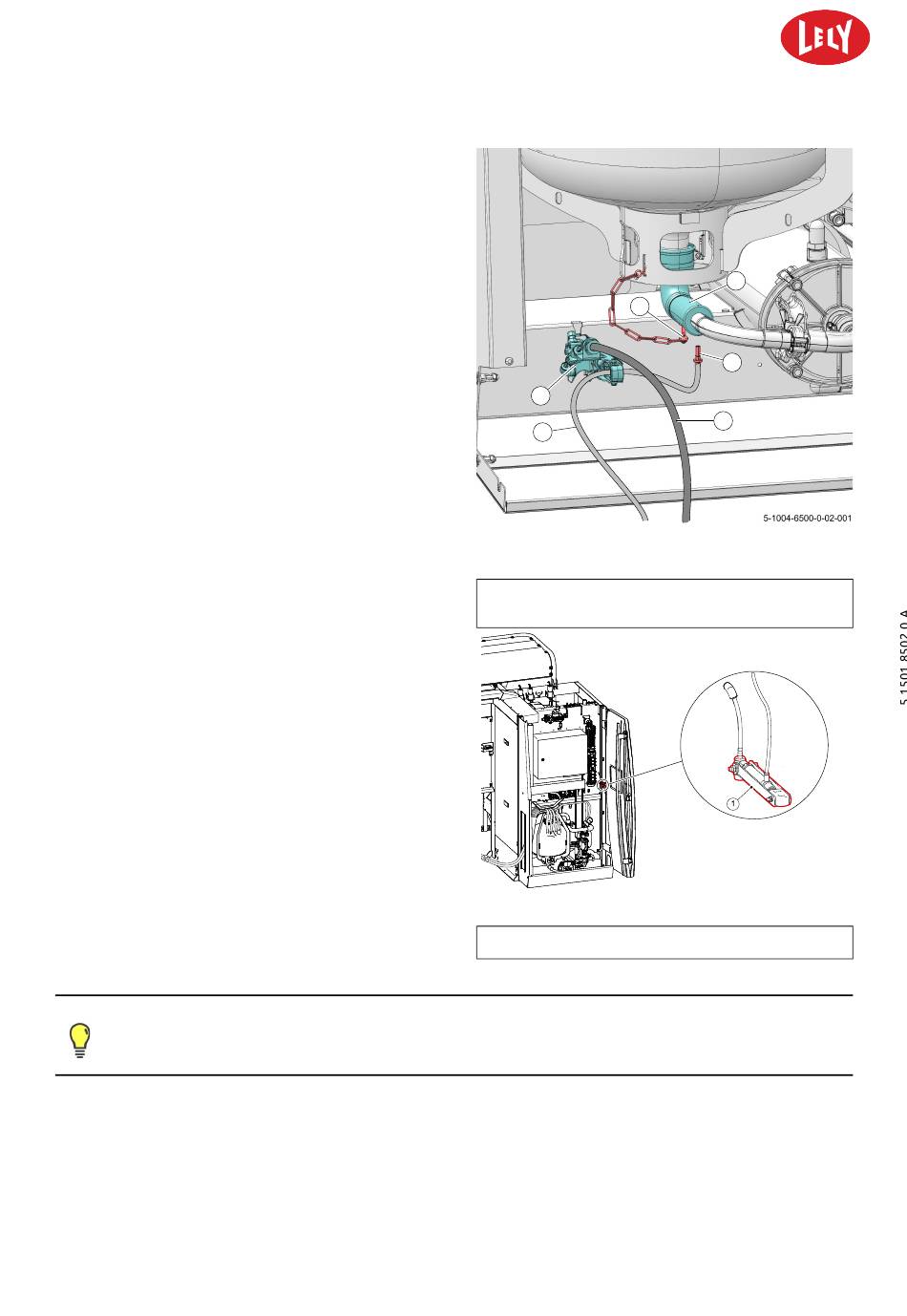

Figure 19. Remove the milk tube from the
sampling cylinder
KEY: 1. Elbow - 2. Plug - 3. Nipple - 4. Tube (compressed air
to Shuttle) - 5. Milk tube (to Shuttle) - 6. Sampling cylinder
Figure 20. Sampling cylinder
KEY: 1. Sampling cylinder
in n o vato rs in ag ric u ltu re
1
3
4
