Place the Spoon at the Start Position

1. Place the spoon (1) at the start position of the
serrated frame (2) above the sample rack (3) (see
figure 12 on page 5-9).
The spoon will be suspended above the sample
bottle in a rack (see Filling Sequence of Sample
Bottles).
5.4.2

Start Milk Sampling

5.4.2.1

Astronaut A4

Make the Tab Sampling Visible
On the E-Link select:
1. Button to open the quick launch buttons bar.
2. Button .
3. In the field Sampling device - Use shuttle, button Yes.
4. Select button Next.
Connect the Sampling Tube to the Milk Jar
1. On the E-Link select in the field Valve sampling button Open.
2. Open the door of the robot unit.
Operating Instructions

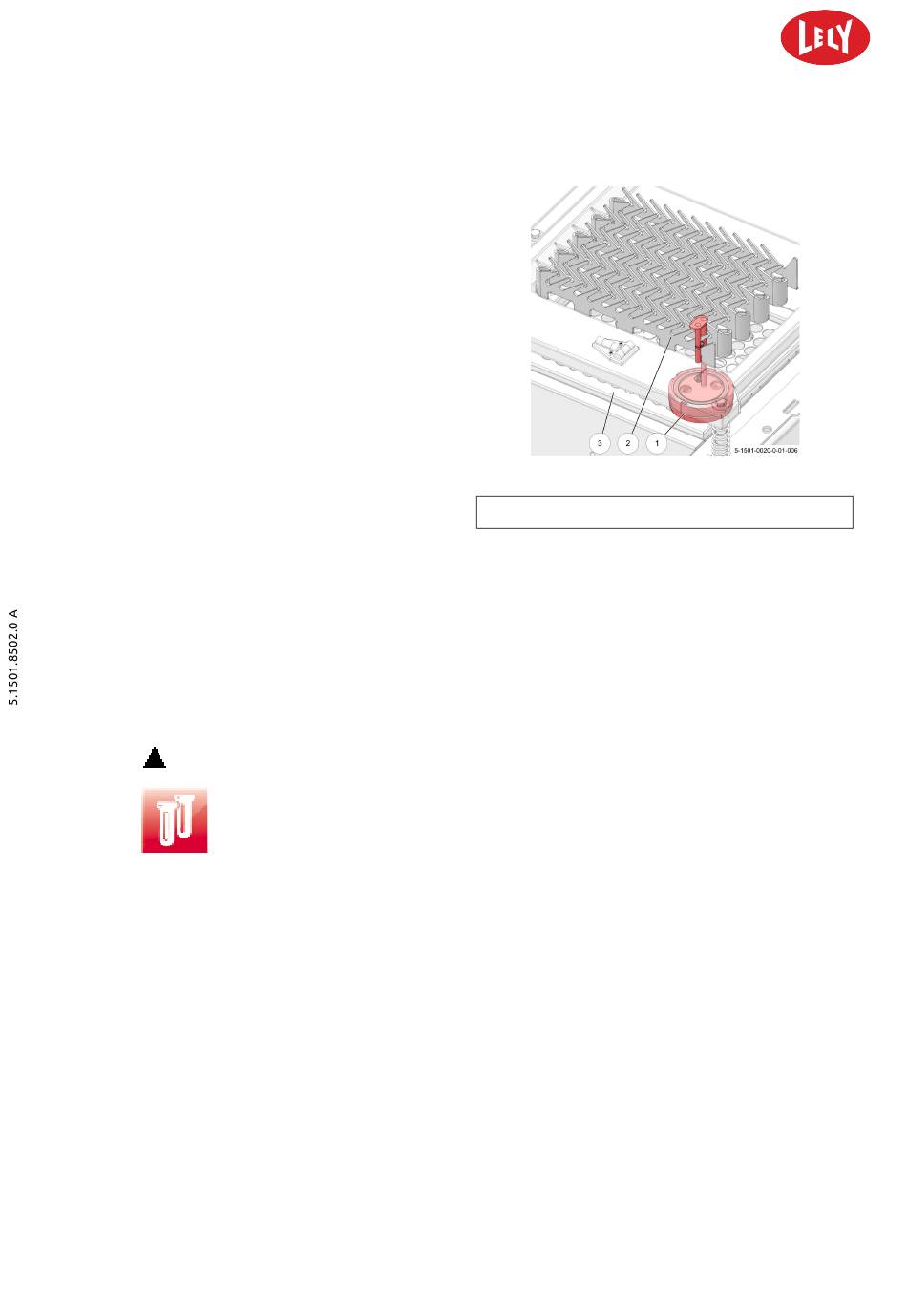

Figure 12. Place the Spoon
KEY: 1. Spoon - 2. Serrated frame - 3. Sample rack
