LELY Shuttle Operator's Manual page 38

1. Button .
2. Tab Actions.
3. Tab All actions.
4. Tab Start milk sampling.
Connect the Sampling Tube to the Milk Jar
1. Select button Start milk sampling.
2. At Valve sampling select button Open.
3. Open the door of the robot unit.
4. Tilt the door step.
5. Put the milk tube (5) through the hole of the
sampling cylinder (3) (Approximately 50 cm (19.7
in)) (see figure 17 on page 5-12).
6. Select button Close.
7. Install nipple (6) to the milk tube (5).
8. Remove the plug (2) from the elbow (1).
5-12
6
5
4

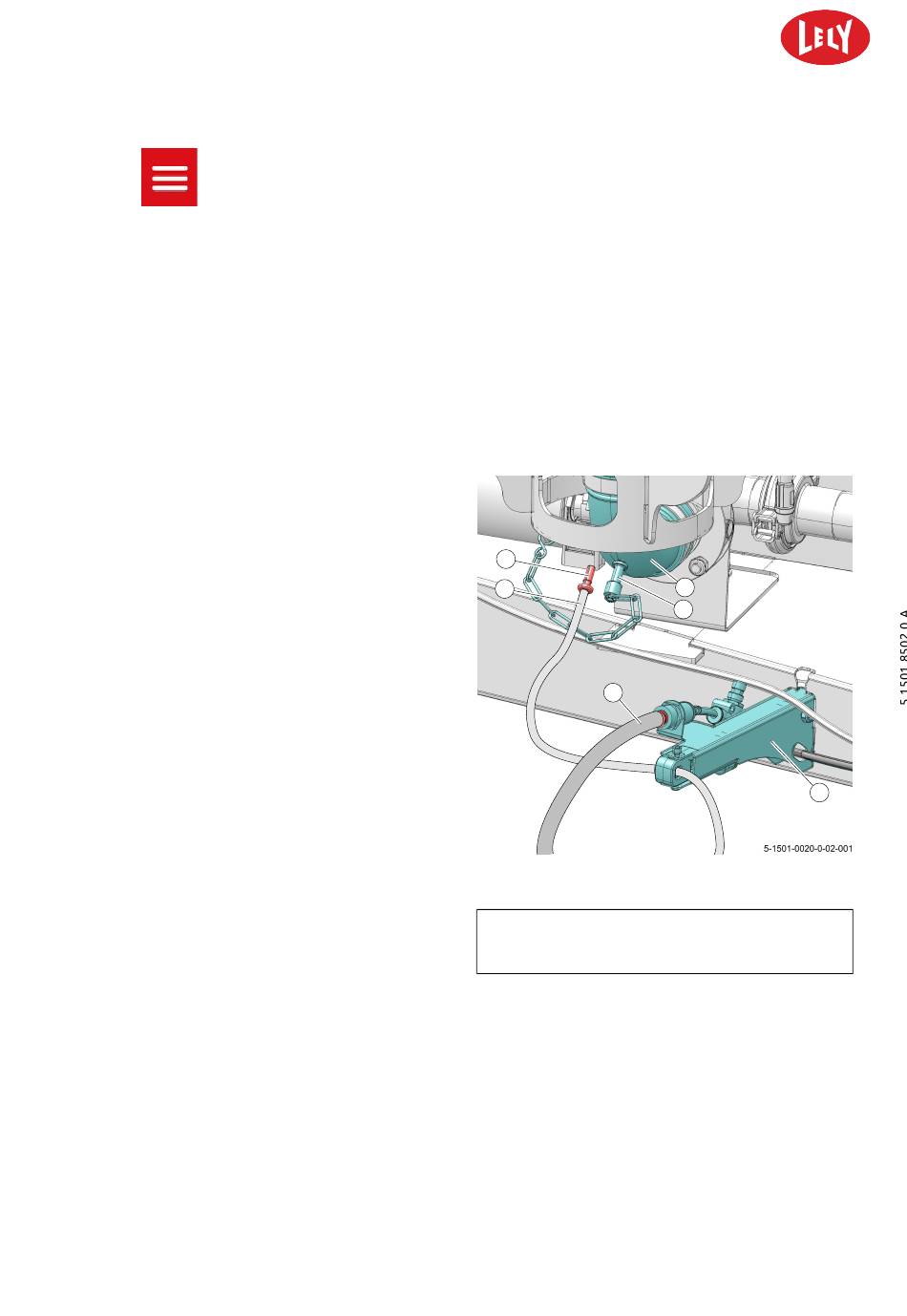

Figure 17. Put the milk tube through the hole of
the sampling cylinder
KEY: 1. Elbow - 2. Plug - 3. Sampling cylinder - 4. Tube
(compressed air to Shuttle) - 5. Milk tube (to Shuttle) - 6.
Nipple
in n o vato rs in ag ric u ltu re
1
2
3
Operating Instructions
